Users Manual Sonic Knife w/500

Machine Maintenance •••• 20

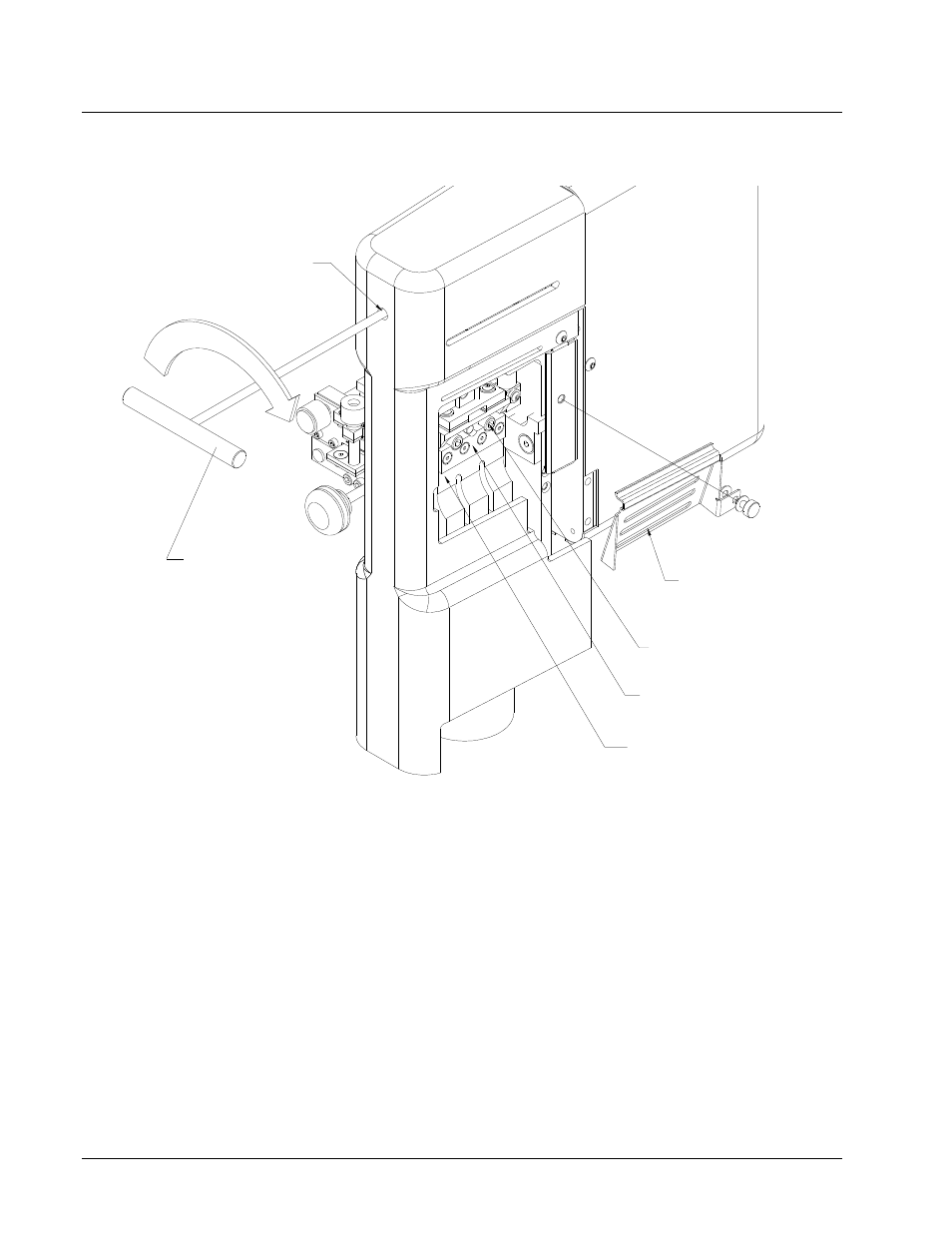

Leveling the Knife Blade

9/64TH WRENCH

CAM ADVANCE SCREW

HORN

KNIFE BLADE ASS'Y

KNIFE SCREW

OUTFEED GUARD

FIGURE 7

1: Remove the Outfeed Guard.

2: Loosen the (2) Knife Screws and using a 9/64

th

Wrench, advance the roller cam

until the Knife Blade assembly compresses against the Horn Surface. Make sure
the knife spring is fully compressed.

3: Tighten the (2) Knife Screws and using the 9/64

th

Wrench, advance the roller cam

back up to its original home position.

Note: Exit conveyor for SNAP not shown for clarity.
