Custom Trigger
The interface cable from the Sonic Knife is used to turn the Sonics off and on. The
sonic unit is on all the time the stacker is running.
Air Cooling
The Sonic Horn does not require special cooling. However, to maintain optimum
efficiency, keep the horn stack area and the back cover cooling vents free from
debris and clutter.
Connecting The Power Supply
Connections

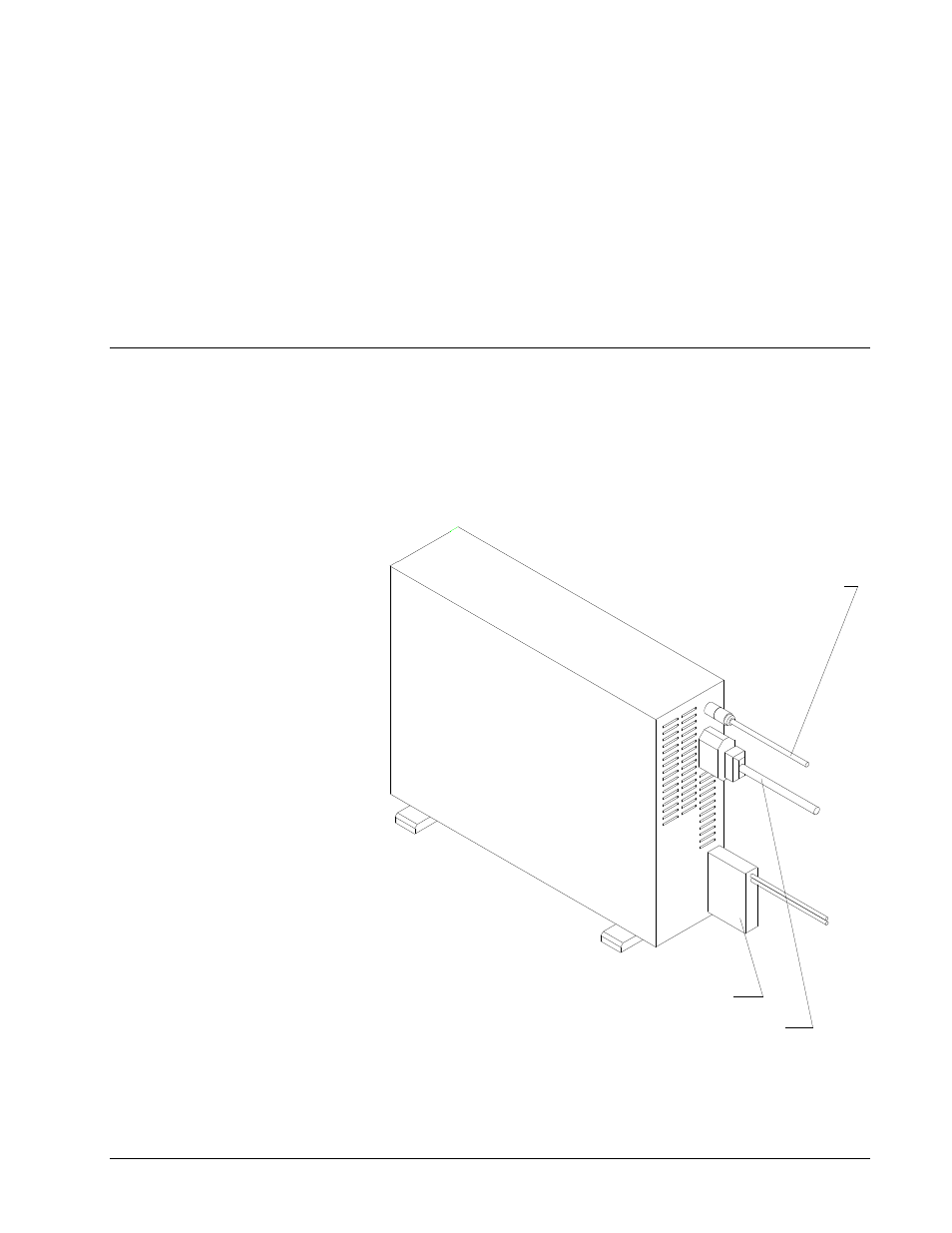

Connect the 37-pin Connector and the Coaxial Converter Cable from Sonic Knife as
shown in the illustration below. Secure AC outlet cord to suitable outlet. NOTE:
There is no AC power switch on the Power Supply. It will be on whenever the power
cable is plugged in.
AC POWER CABLE
37 PIN CONNECTOR
COAXIAL CONVERTER
CABLE
