a) Aggregator Setting
Note
: Before configuring LACP, first configure the trunking group in the Port/Trunk
configuration menu.

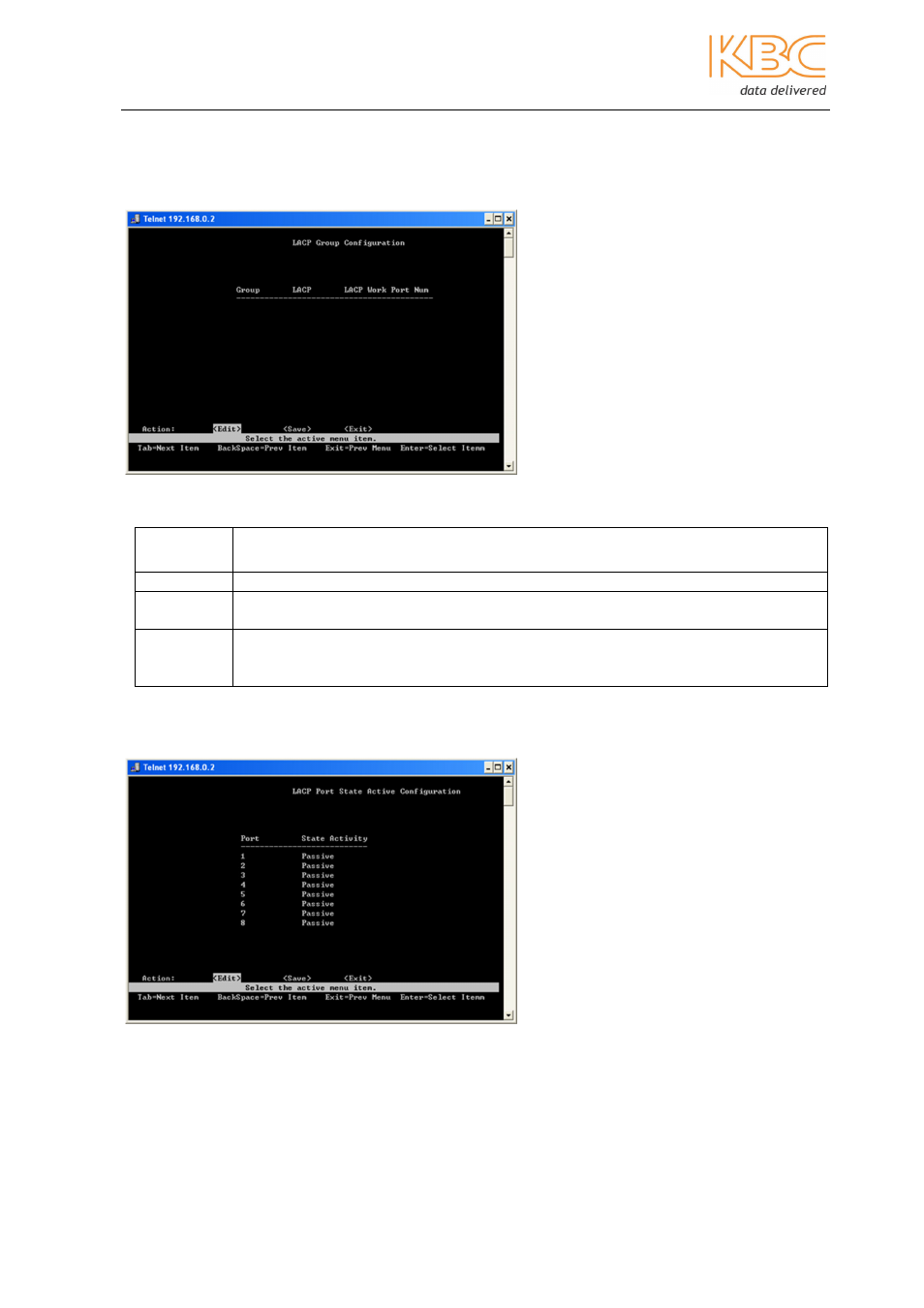

Fig 3-42 LACP Group Configuration
Item
Description
Group
Displays the group ID
LACP
Enabled or disabled. If enabled, the group is a LACP static trunking
group.
LACP Port
Number
The max number of aggregated ports. If it is a static LACP trunking
group, the extra port is used as backup for the failure. If it is local static
trunking group, the port number must be identical to the trunk ports.
Table 3-10 LACP Descriptions
b) State Activity
Fig 3-43 State Activity
Select
port.
The passive end: the ports won’t send the LACP frames automatically, the port will
respond only after it receives frames from the corresponding switch.
The active end: the ports will send the LACP frames automatically.
