b) System Configuration
The bridge STP parameters are displayed on the left of the page. The user can set new
STP parameters on the right. For more detailed descriptions of the settings refer to
Chapter 5.

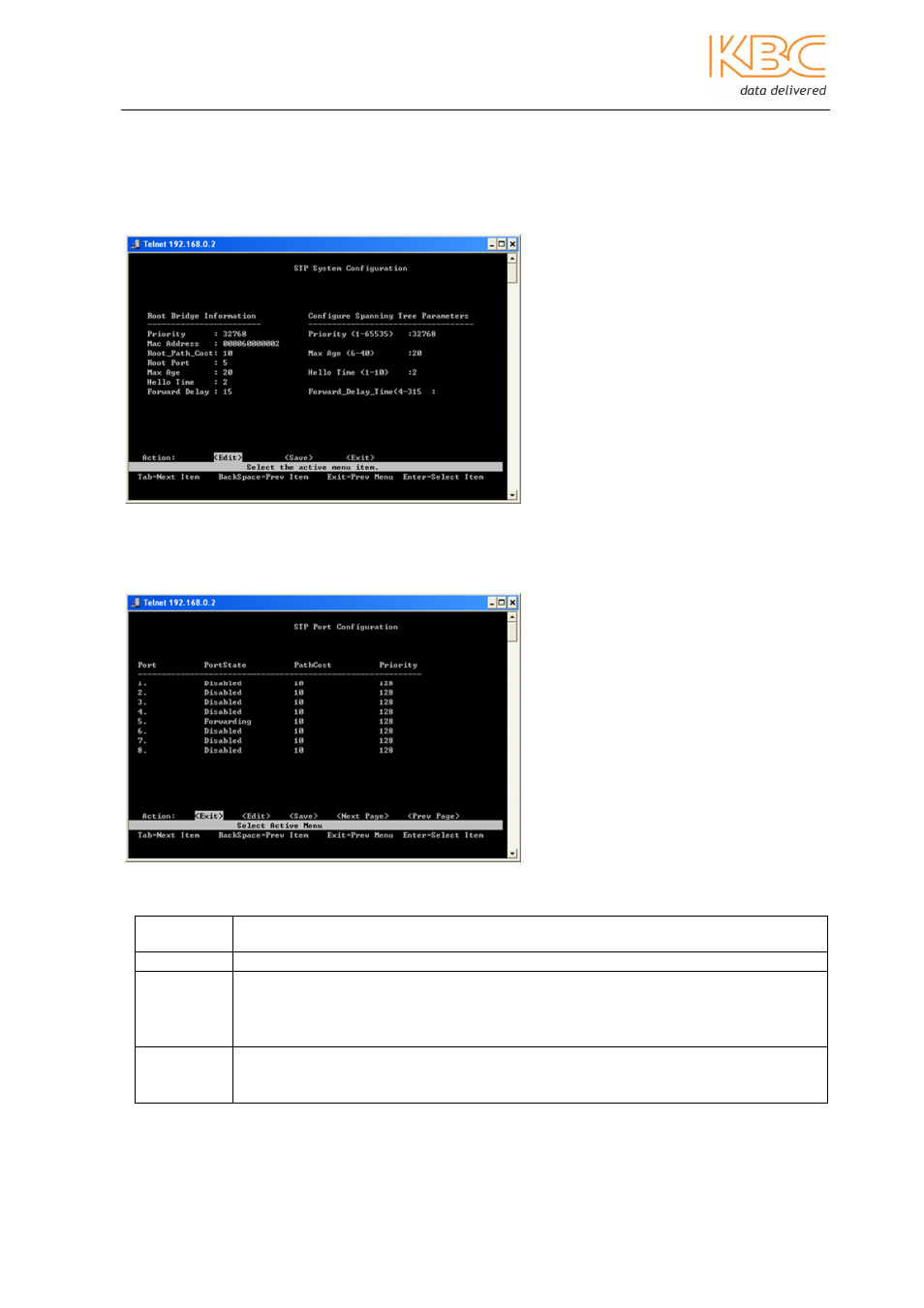

Fig 3-32 STP System Configuration
c) Perport Configuration
The parameters of each port are shown in Table 3-7:
Fig 3-33 Per Port Configuration
Item Description
Port Status Shows the Spanning Tree status of each port
Path Cost
The path cost of designated port. The port with the lowest path cost is used to
forward data. The value range of the path cost is 1~ 65535. The default values of
IEEE802.1D specifications are 10Mb/s = 50-600；100Mb/s = 10-60；1000Mb/s =
3-10. Any changes to the values require the switch to be reset.
Priority
By this value, the port can be set as the root port. The value range is 0 ~ 255,
the default value is 128. The smaller value, the higher priority. To change the
value, the switch must be reset.
Table 3-7 Port Parameters
