Filtering MAC Address

By MAC address filtering, the switch can discard undesired frames. The filtered frames
are based on the destination addresses. The user can add, edit or delete MAC address
from this page.

- Add a filtered MAC address

•

Select then and press to add a MAC address.

•

Enter the MAC address to be filtered.

•

Enter the VID associated with the MAC address if there is IEEE802.1Q VLAN in the
switch.

•

Select and press to save all changes.

•

will return you to the main menu.

- Edit a filtered MAC address

•

Select and press .

•

Select the desired MAC address and press .

•

Select and press to modify all items.

•

Select to save all changes.

•

will return you to the main menu.

- Delete a filtered MAC address

•

Select and press .

•

Select the desired MAC address and press .

•

Select to save all changes.

•

will return you to the main menu

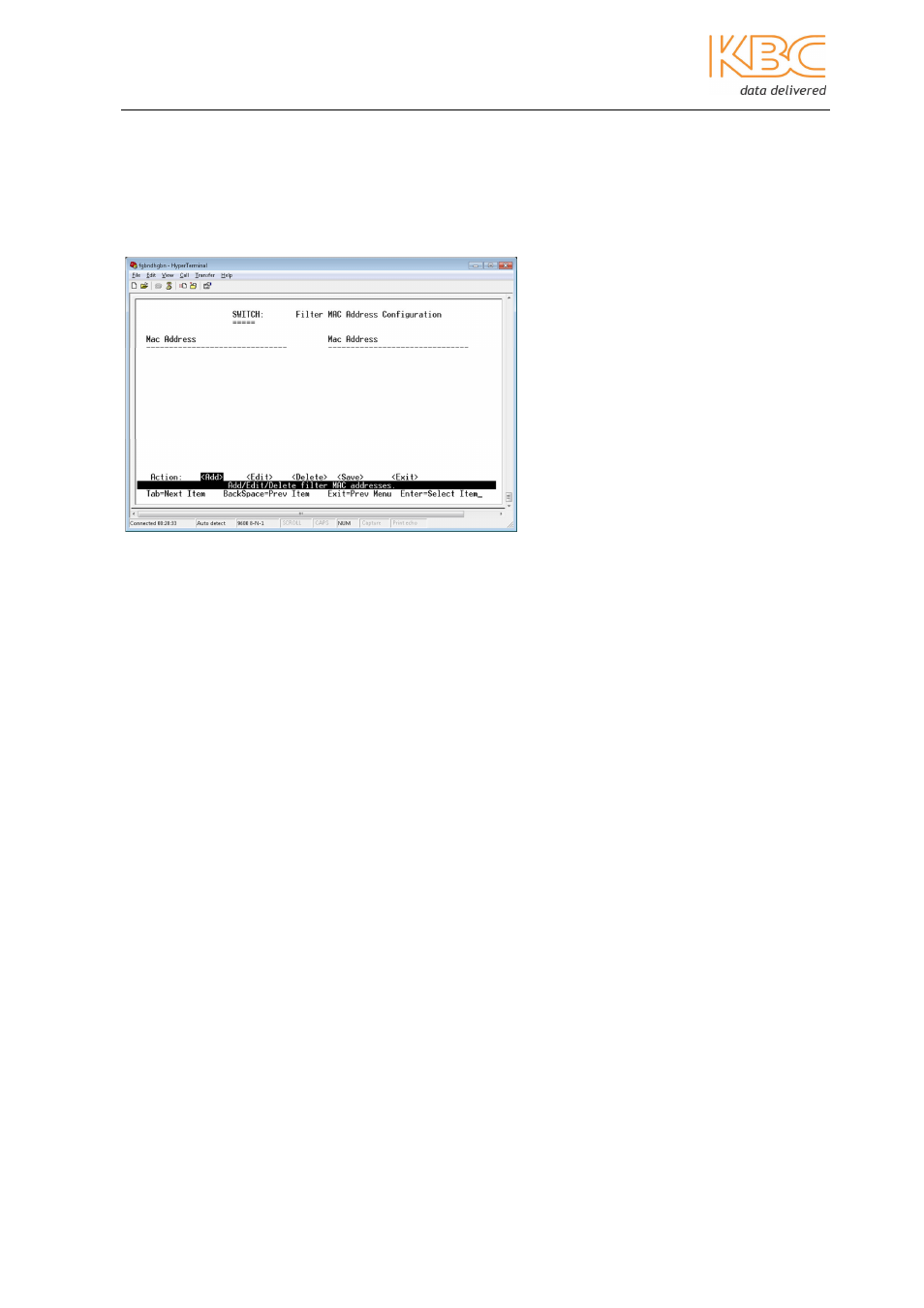

Fig 3-23 Filtering MAC Address
