Ethernet Switch User Manual
Manual_sw-ESML6-FL2-Rev1106
Copyright © KBC Networks Ltd.
Page 25 of 64
www.kbcnetworks.com
1.
STP/ Spanning Tree Protocol
There are three further sub-menus within this menu option.
Note
: If DT-Ring is being used in a KBC switch network STP should not be enabled.

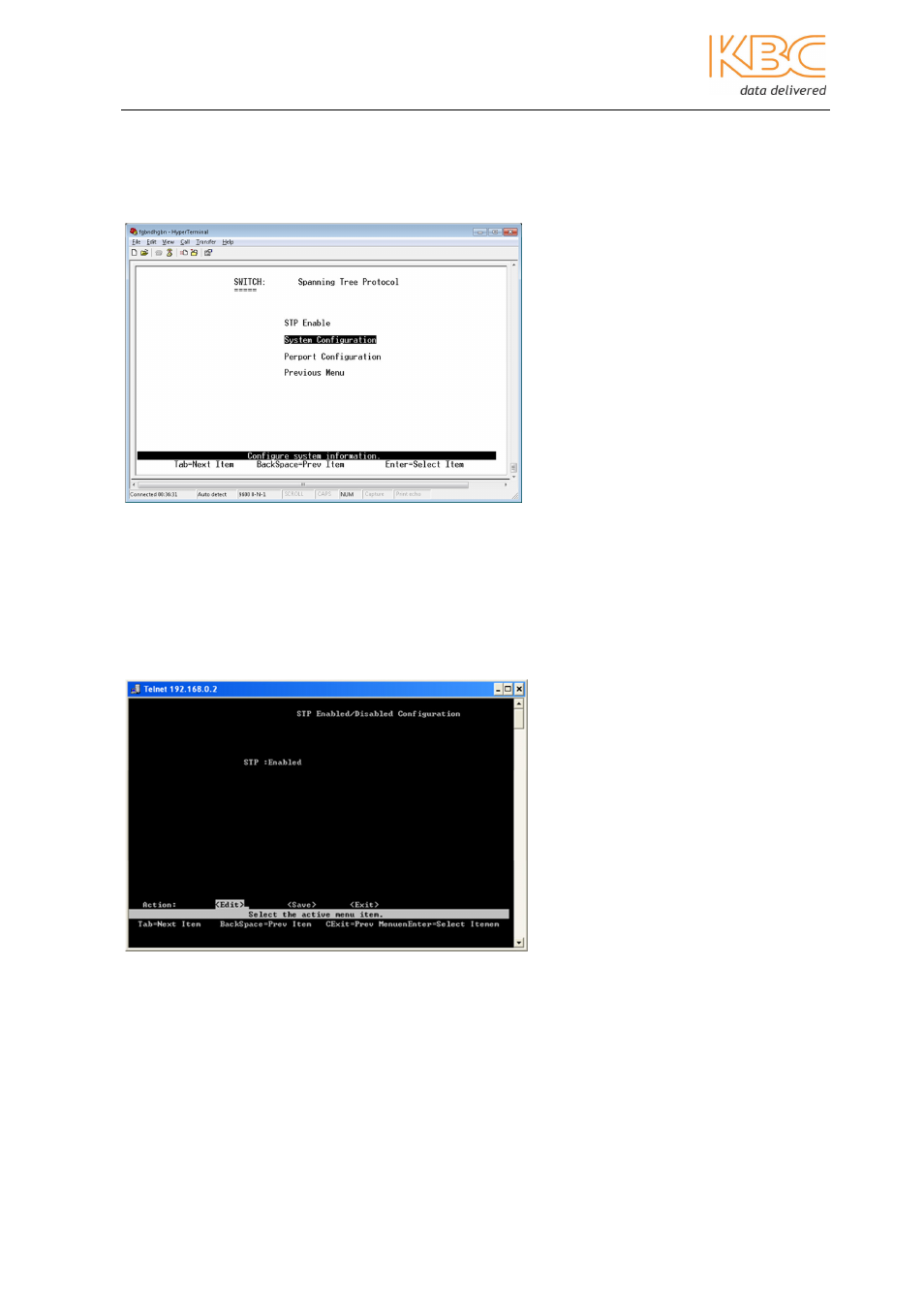

Fig 3-30 STP/Spanning Tree Protocol
a) STP Enable
This menu option is used to enable or disable the Spanning Tree feature. Press the space
key to enable or disable this feature.
Fig 3-31 STP Enable
