3.4.3. Mixed ground stack
Limitations
A combination of 8 x TOP/SUB cabinets at maximum are allowed
to be set up as mixed ground stack.
Preparations
For this type of setup the Splay link of the frame must be attached
to «POSITION V-SUB». Check the position and alter it if necessary
as described in Þ Chapter 2.9. " Splay link of the frame"
Þ " Changing the Splay link position" on page 17.
1. Assembly
1. Stack the SUB cabinets and interconnect them using their Front
and Rear links.
2. Prepare the Front links of the upper SUB cabinet as described
in Þ Chapter 2.11.1. "Front link mechanism" on page 19.
3. Place the frame onto the cabinet until the Front links fit into the
slots at the front of the frame.
4. Insert the second Locking pins of the cabinet's Front links on
both sides.
5. On the rear rigging strand of the cabinet, release both Locking
pins.
6. Fold the frame's Splay link into the rigging strand and reinsert
the Locking pins.
The assembly of the V8/V12 cabinets on top of the frame is
carried out in the same manner as described in the previous
section Þ Chapter 3.4.1. "V8/V12 ground stack" on page 35.
2. Rig the cabling
Connect the flying cables and link cables according to the number
of amplifier channels and cabinets used.
3. Check the assembly
Recheck the actual status of the entire assembly according to the
checklist given in Þ Chapter 4. "Safety and system checks"

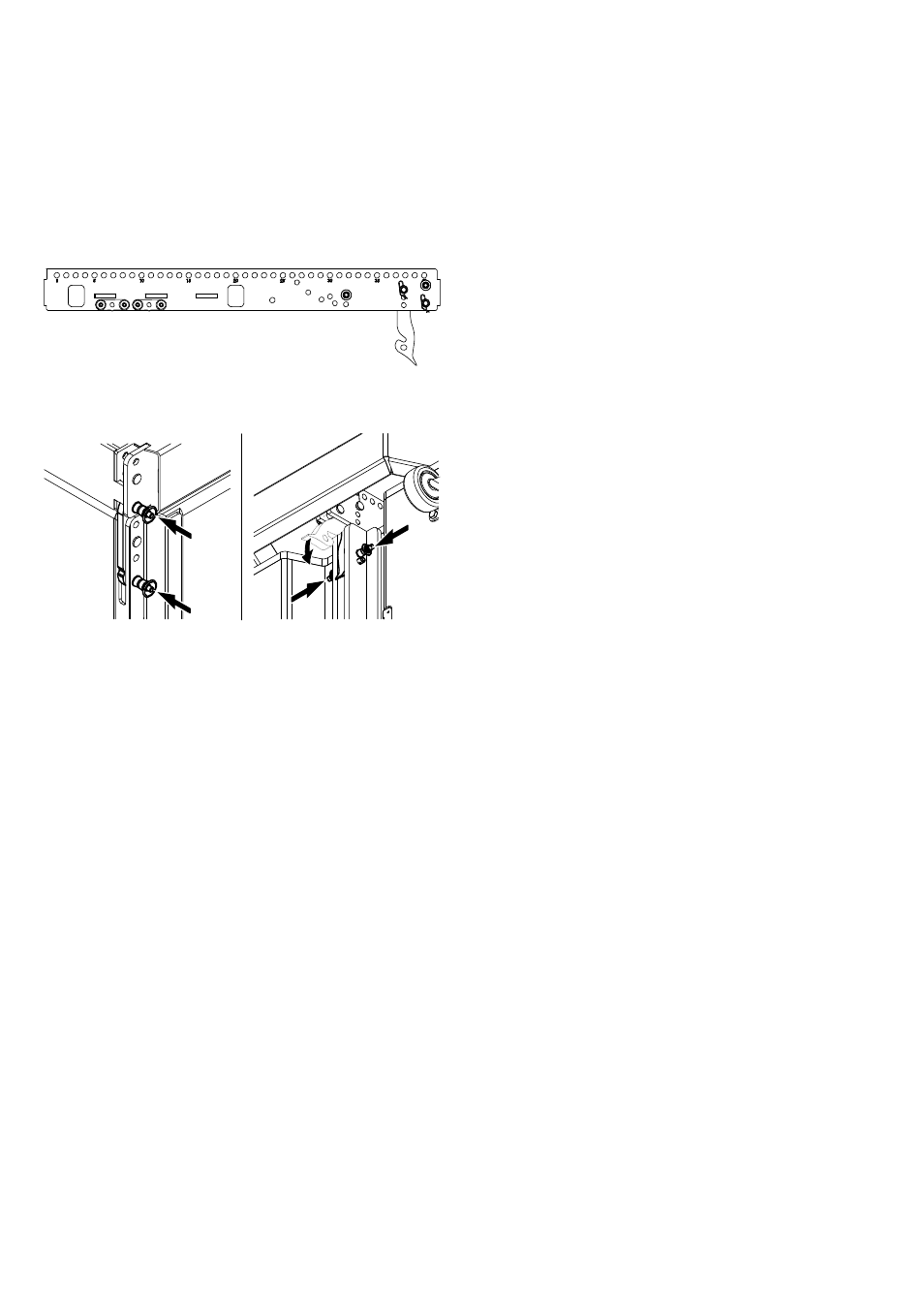

Splay link of the frame – «POSITION V-SUB»
