4–2 Chapter 4: Development Board Setup
Factory Default Switch Jumper Settings
Transceiver Signal Integrity Development Kit, February 2013 Altera Corporation
Stratix V GT Edition User Guide
Factory Default Switch Jumper Settings
This section shows the factory switch settings for the Stratix V GT development
board.
Figure 4–1 shows the switch locations and the default position of each switch on the
top side of the board.
To restore the switches to their factory default settings, perform the following steps:
1. Set the DIP switch bank (SW2) to match Table 4–1 and Figure 4–1 .

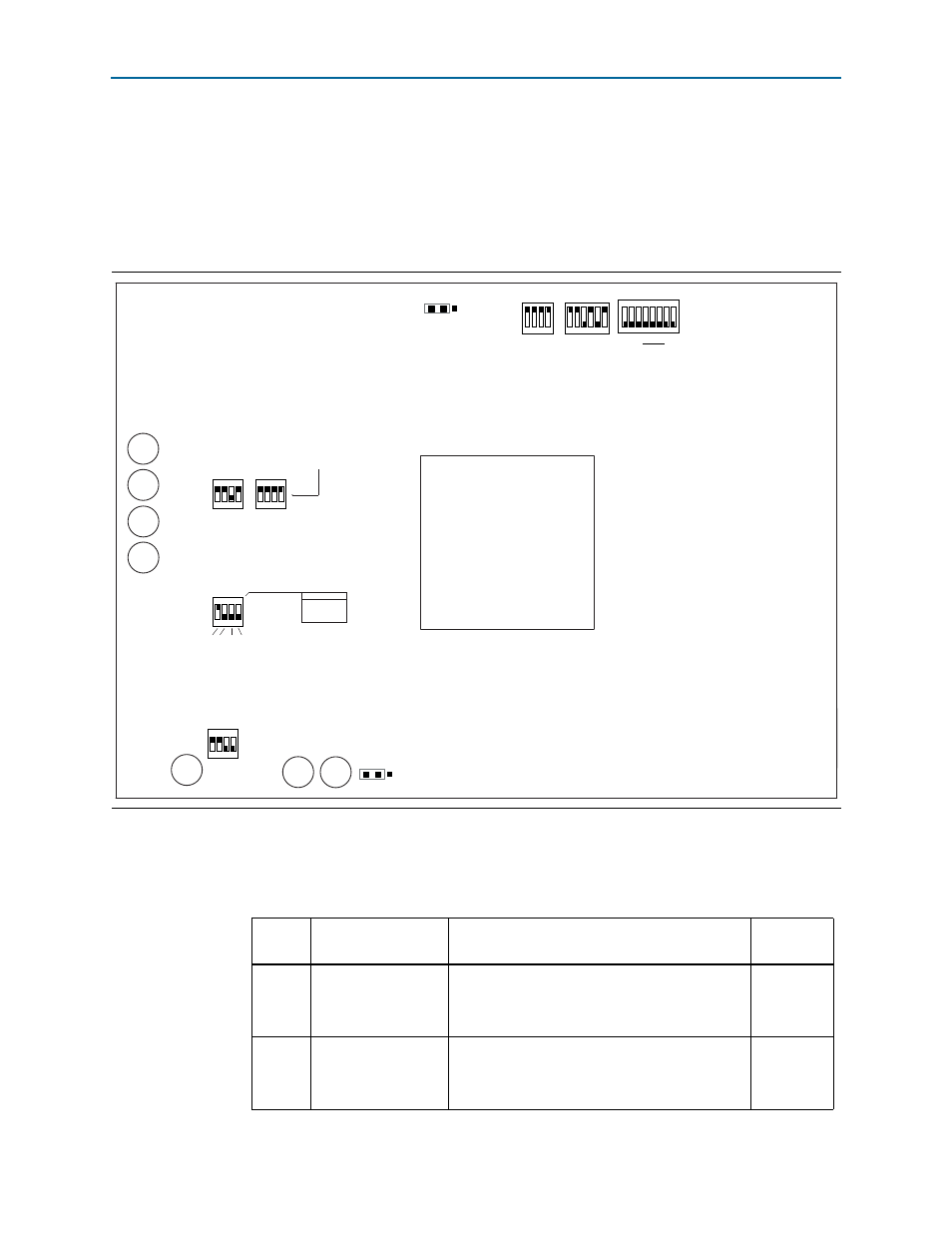

Figure 4–1. Switch Locations and Default Settings on the Board Top
SW4
1 2 3 4 5 6 7 8
S7
1 2 3 4 5 6
MSEL0 MSEL1 MSEL2 MSEL3 MSEL4 MAX BYPASS
1
SW6
1 2 3 4
0
1
0
OSC
SMA
S5_UNLOCK DPI6 DPI0
SW3
1 2 3 4 1 2 3 4
SW7
ENABLE
DISABLE
SW3-1 VCC
SW3-2 VCCRT_GXB
SW3-3 VCCA_GXB
SW3-4 1p5V
SW7-1 2p5V
SW7-2 VCCR_GTB
SW7-3 VCCT_GTB
SW7-4 VCCL_GTB
SW5
1 2 3 4
ON
S0 S1 SS0 SS1
S1 S0 CLK
0 0 25MHz
0 1 100MHz
1 0 125MHz
1 1 200MHz
SW2
1 2 3 4
ON
open
close
SW2-1 open = 0.9V
SW2-1 close = 1.0V
SW2-2 open = 2.5V
SW2-2 close = 3.0V
SW2-3 = No Function
SW2-4 = No Function
J28
PGMSEL
JMP1-2=HIGH
JMP2-3=LOW
3 1
ON ON
1
0
J26
AUTO ON
3 1
(Stratix V GT)
(User defined)
0 = Closed
1 = Open
Table 4–1. SW2 DIP Switch Settings (Part 1 of 2)
Switch
Board
Label
Function
Default
Position
1 SW2-1
Switch 1 has the following options:
■ Open = VCCRT_GXB select at 0.9 V.
■ Close (ON) = VCCRT_GXB select at 1.0 V.
Close
2 SW2-2
Switch 2 has the following options:
■ Open = VCCA_GXB select at 2.5 V.
■ Close (ON) = VCCA_GXB select at 3.0 V.
Close
