Installing the Development Kit
To install the Transceiver Signal Integrity Development Kit, Stratix V GT Edition,
perform the following steps:
1. Download the Transceiver Signal Integrity Development Kit, Stratix V GT Edition
installer from the Transceiver Signal Integrity Development Kit, Stratix V GT
Edition page of the Altera website. Alternatively, you can request a development
kit DVD from the Altera Kit Installations DVD Request Form page of the Altera
website.
2. Run the Transceiver Signal Integrity Development Kit, Stratix V GT Edition
installer.
3. Follow the on-screen instructions to complete the installation process. Be sure that
the installation directory you choose is in the same relative location to the
Quartus II software installation.
The installation program creates the Transceiver Signal Integrity Development Kit,
Stratix V GT Edition directory structure shown in
Figure 3–2 .
Table 3–1 lists the file directory names and a description of their contents.

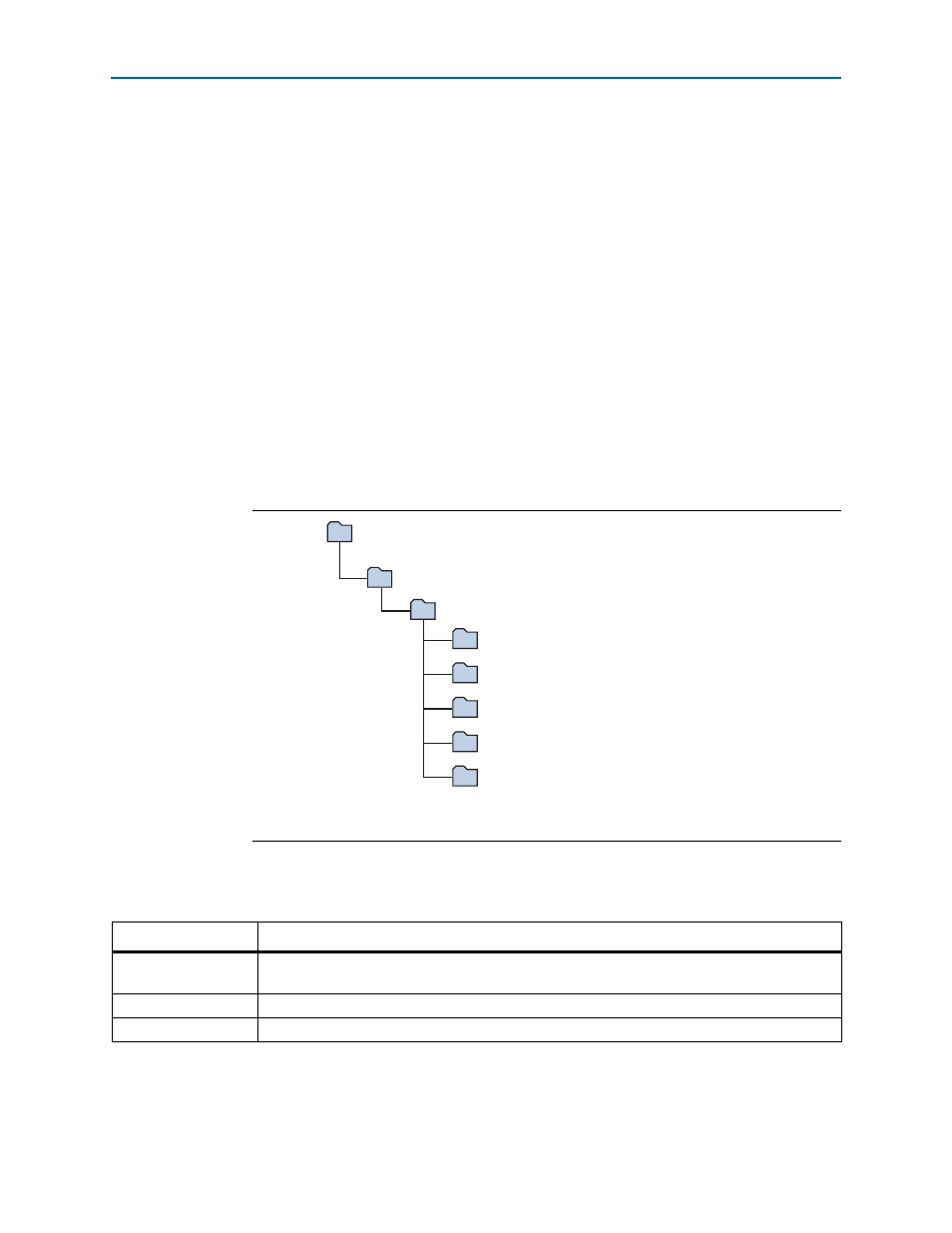

Figure 3–2. Transceiver Signal Integrity Development Kit, Stratix V GT Edition Installed Directory
Structure
(1)
Note to Figure 3–2 :
(1) Early-release versions might have slightly different directory names.
documents
board_design_files
The default Windows installation directory is C:\altera\ \.
examples
factory_recovery
demos
kits
stratixVGT_5sgtea7_si
Table 3–1. Installed Directory Contents
Directory Name Description of Contents
board_design_files
Contains schematic, layout, assembly, and bill of material board design files. Use these files as a
starting point for a new prototype board design.
demos Contains demonstration applications when available.
documents Contains the kit documentation.
