6.2 Preparing for operation
6 Commissioning
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
6-8
6.2.4.2 Connection of 4 proximity switches
Connection of 4 proximity switches 6- Drehzahlwaechter_Bsp2_BA
Description
` 4 proximity switches, pnp-switching
` Connection through 24 V terminals and 0 V

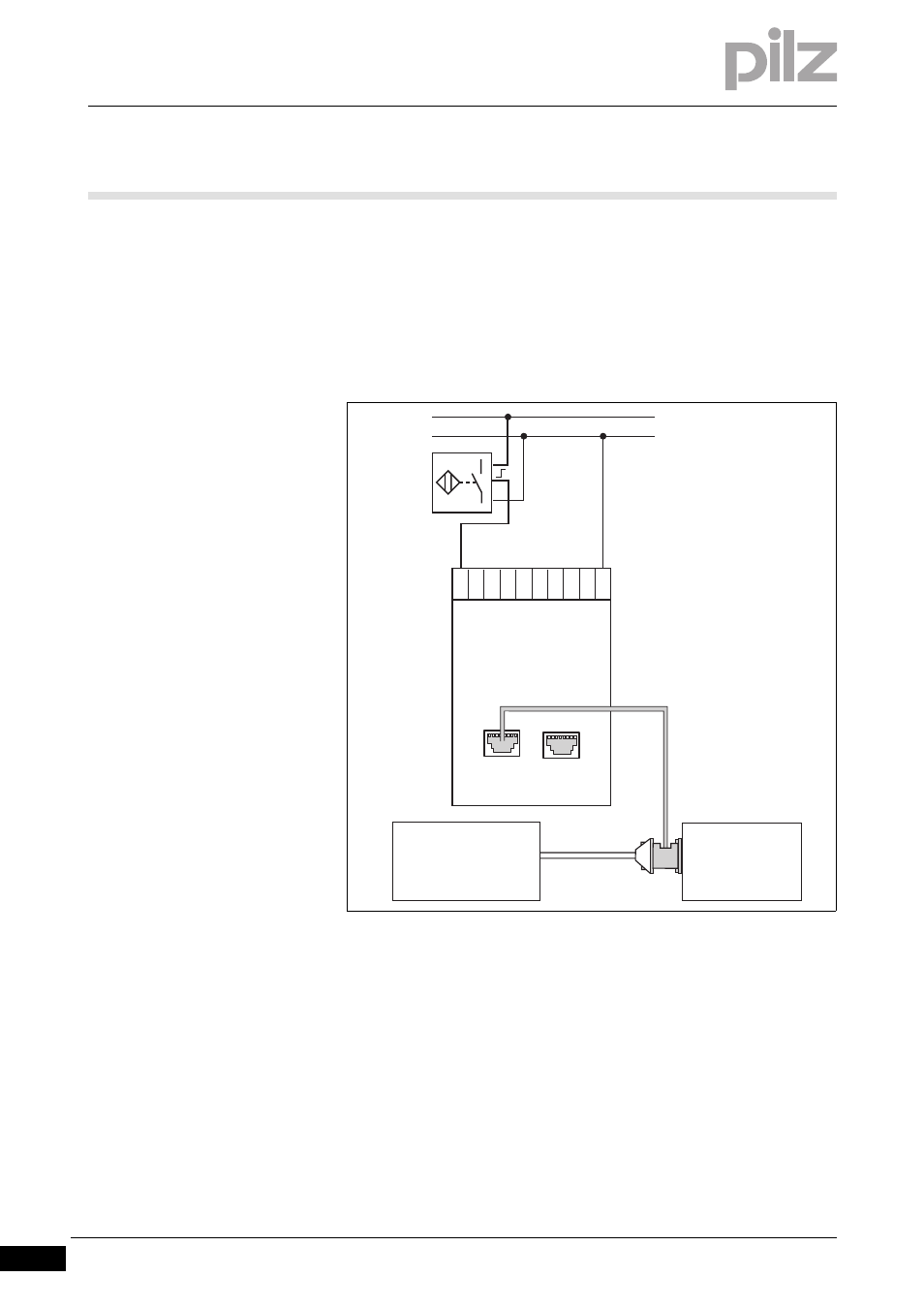

Fig. 6-9: Connection of 4 proximity switches, pnp-switching, con-
nection through 24 V terminals and 0 V
I10 I11 I20 I21
24V 24V 24V
0V 0V 0V
X22 X12
+
-
Incremental encoder Drive
... PNOZ msi1p ... msi4p ...
24 V DC
0 V
Speed monitor
pnp
