6.2 Preparing for operation 6200 Preparing for operation 6- 6.2.1 Connecting the incremental encoder
Connecting the incremental encoder 6-
Follow the instructions below when connecting the incremental encod-
er:
` The incremental encoder can be connected via an adapter (e.g. PNOZ
msi4p) or can be connected directly to the speed monitor.
` The incremental encoder on connector X12 monitors the axis.
` Only use shielded cables for all connections
` Always connect 0 V on the incremental encoder and speed monitor.
` Position the terminating resistors on the signal lines as close as pos-
sible to the input on the speed monitor.
6.2.1.1 Connect the signals from the incremental encoder to the speed monitor
Connect the signals from the incremental encoder to the speed monitor 6-
Encoder types: 1 Vss, 5 V-TTL
` Apply 5 VDC to incremental encoder only
` Terminate incremental encoder with Z
O
= 120 Ohm

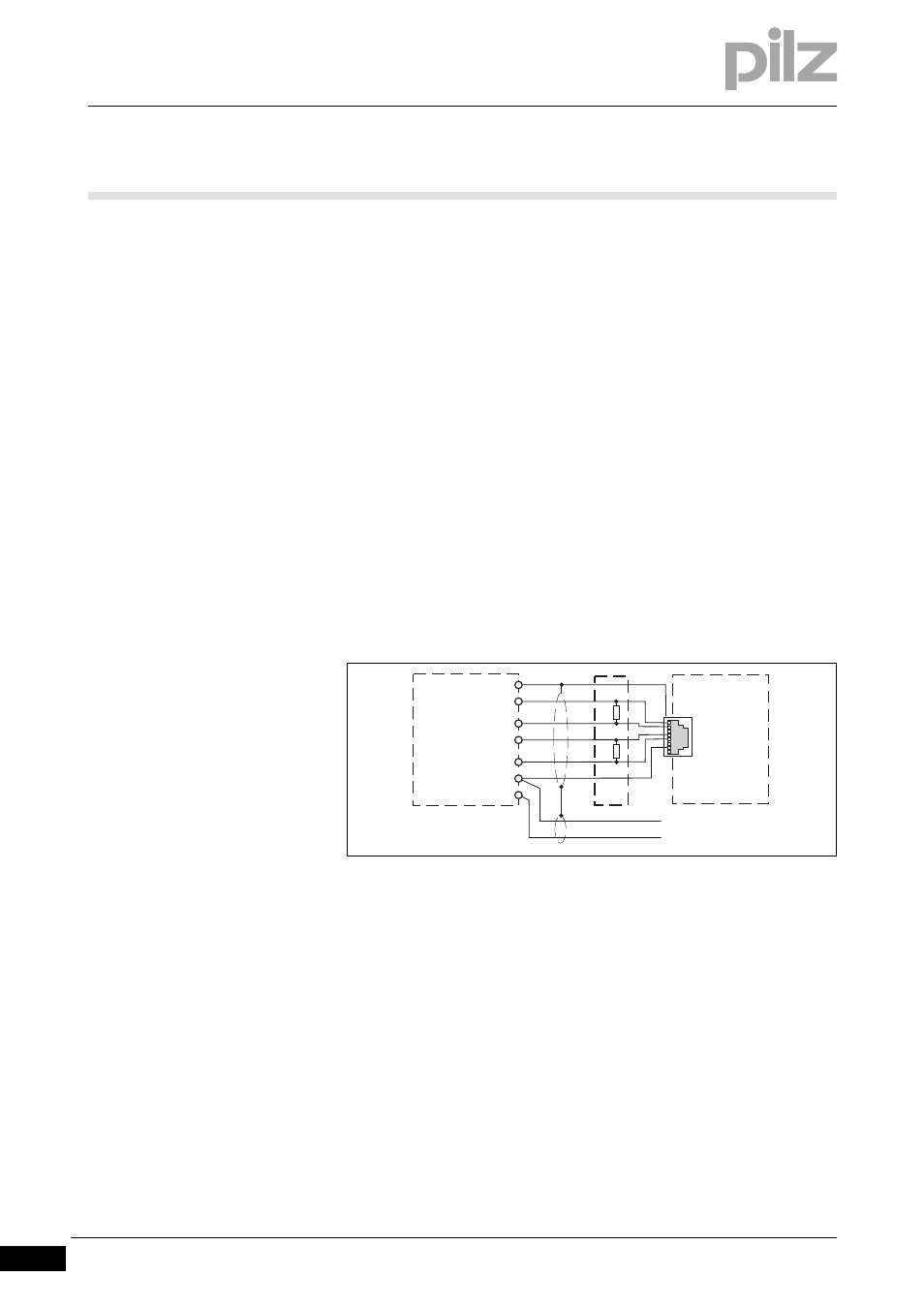

Fig. 6-2: Connection to incremental encoder type 1 Vss, 5 V-TTL
X12
X22
Speed monitor
5 V DC
0 V
2
4
5
7
8
A
/A
B
/B
5 V
0 V
Zo
Zo
Incremental
encoder
