Installation
Operating Manual PNOZ mm0p-T
1002704-EN-01
14

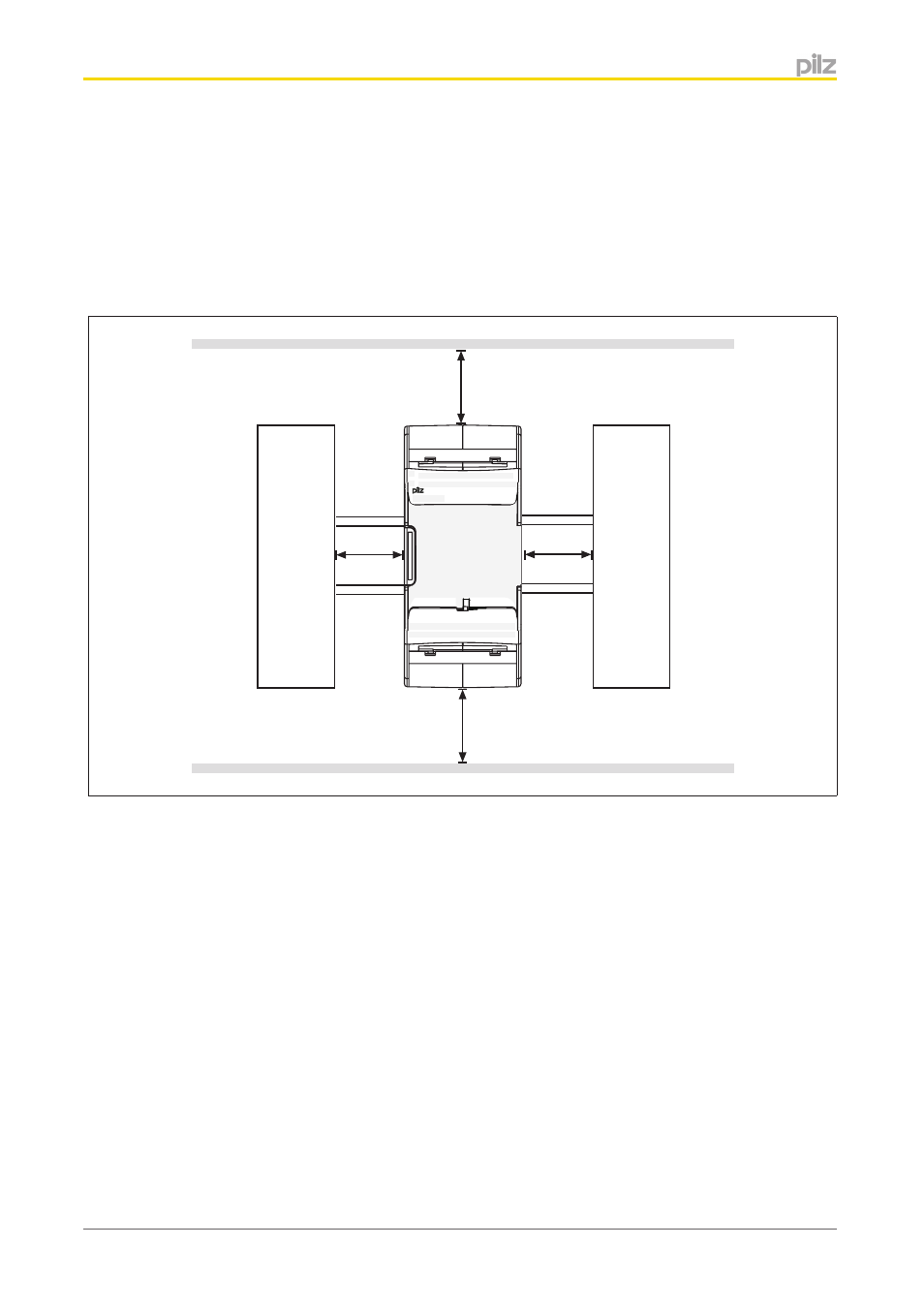

Mounting distances
With control cabinet installation it is essential to maintain a certain distance from the top
and bottom, as well as to other heat-producing devices (see diagram). The values stated
for the mounting distances are minimum specifications.
The ambient temperature of the product in the control cabinet must not exceed the figure
stated in the technical details, otherwise air conditioning will be required.
Mounting distances:
30 mm
(1.181")
30 mm
(1.181")
20 mm
(0.787") 20 mm
(0.787")
IM0 IM1 IM2 I6 I5 I4 IM3 I7
I8 I10 I14 I13 I12 I11 I15
X3
X1
X4
X2
PNOZ mm0.1p
T0 T1 T2 O2 O1 O0 T3 O3
IM16 IM17 IM18 0 V A2 A1 IM19 24 V
M20 M21 M22 M23
Heat-producing device Heat-producing device
5.1.2
