Preparación de la automatización o del control remoto
OTDR
263

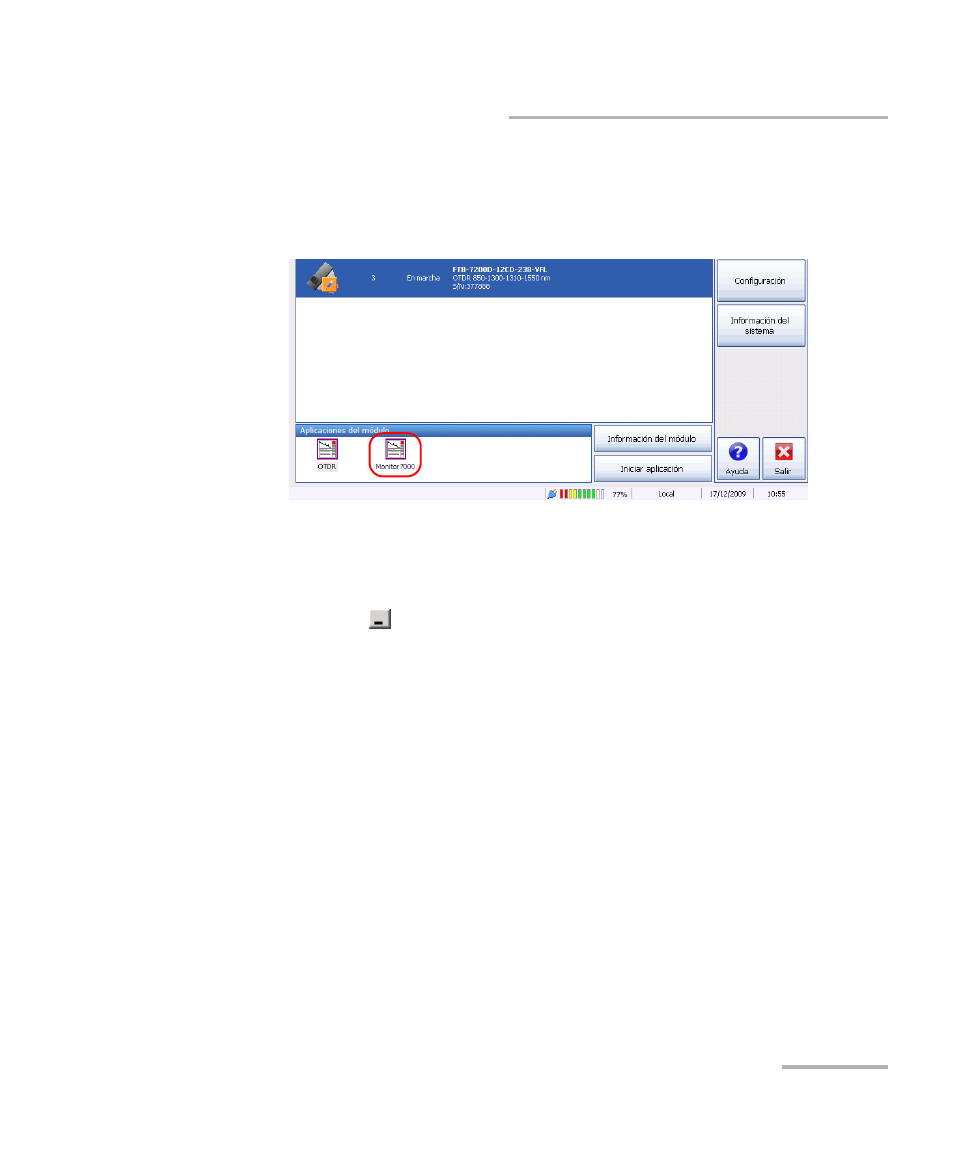

Para visualizar la ventana del monitor:
1. En ToolBox, vaya a la ficha Módulos.
2. Pulse Monitor 7000.
Puede ocultar (minimizar) la ventana del monitor y hacer que vuelva
aparecer según sea necesario.
Para ocultar la ventana del monitor:
Use el botón
situado en la esquina superior derecha de la ventana.
Para mostrar una ventana del monitor oculta:
1. Pulse el botón Alternador de programas. Este botón está situado en el
panel frontal del FTB-500 (para obtener más información, consulte la
guía del usuario del FTB-500).
2. Seleccione la aplicación OTDR.
