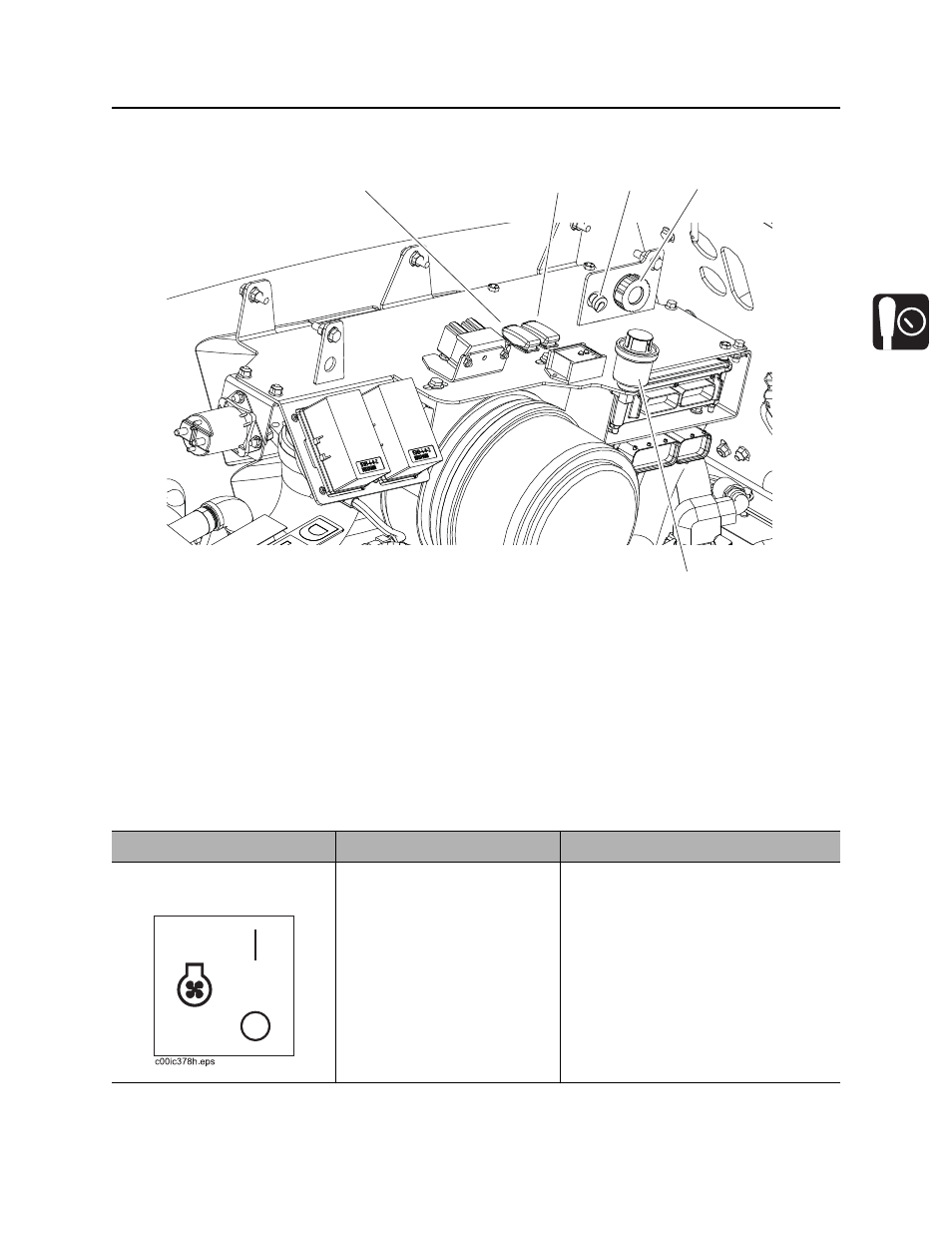

Engine Compartment Controls
CMW
®
Engine Compartment Controls
1.
High/auto fan speed switch
2.
Throttle switch
3.
Air filter restriction indicator
4.
Machine controller diagnostic port
5.
J1939 CAN diagnostic port, engine
Item
Description
Notes
1.
High/auto fan speed
switch
For high speed, press top.
For automatic speed, press
bottom.
If switch is on high speed, fan will run
at full speed all the time.
If switch is on auto speed, fan speed
will vary in relation to engine
temperature.
j38om007w.eps
1
2
4
5
3
