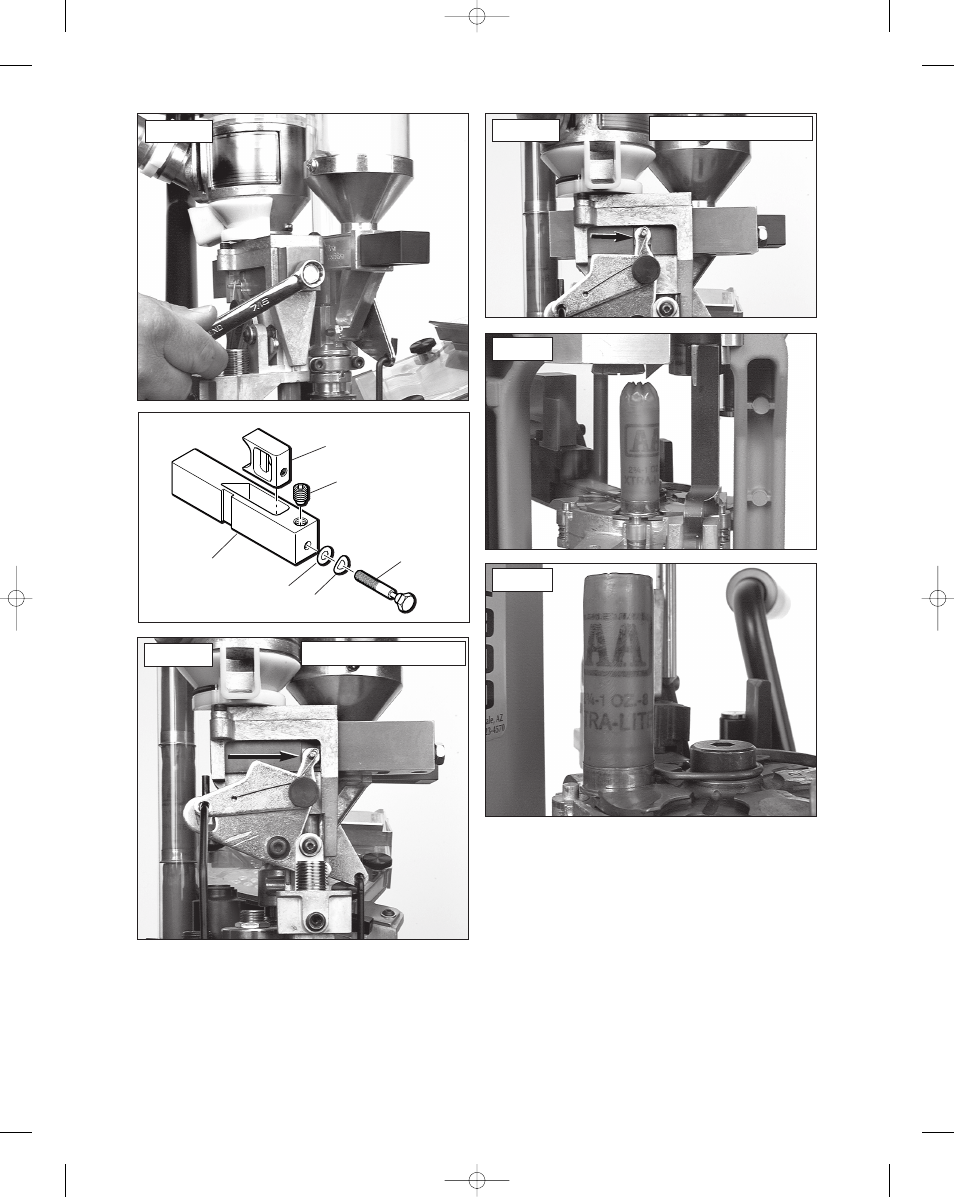

The body collar adjustment screw (#10641) has
been adjusted to seat the 1 1/8 oz (WAA-12) plastic
wad into the hull. The shot dispenser bellcrank makes
a complete stroke and dispenses one charge of shot
wile the wad is being seated into the hull. Fig 23B
Turning the body collar adjustment screw
(#10641) clockwise (too high) will raise the shot
dispenser, reducing the amount the wad is seated into
the hull and may result in an incomplete stroke of the
bellcrank. Fig 23C
Station Four – The starter crimp die (#10640)
forms and folds the loaded shotshell hull. This die is
set for Winchester AA hulls so we achieve 60%
closure of the top. Fig. 24
Station Five – Here we’ll finish crimp and seat. A
final seat plug presses the hull back down and below
the top by approximately 1/16 of an inch. The taper
crimp feature within the die radiuses and blends the
end of the hull and locks the crimp on the hull. It too
is adjusted for Winchester AA hulls. Fig. 25
23
Fig. 25
Fig. 24
Fig. 23C Incomplete Stroke Fig. 23A
16739
16740
Remember: Loosen the
bolt set screw before
making any adjustments.
13958
16738
14041
13943
Fig. 23B Complete Stroke
