Dillon Precision SL 900 - Manual (Page 11)

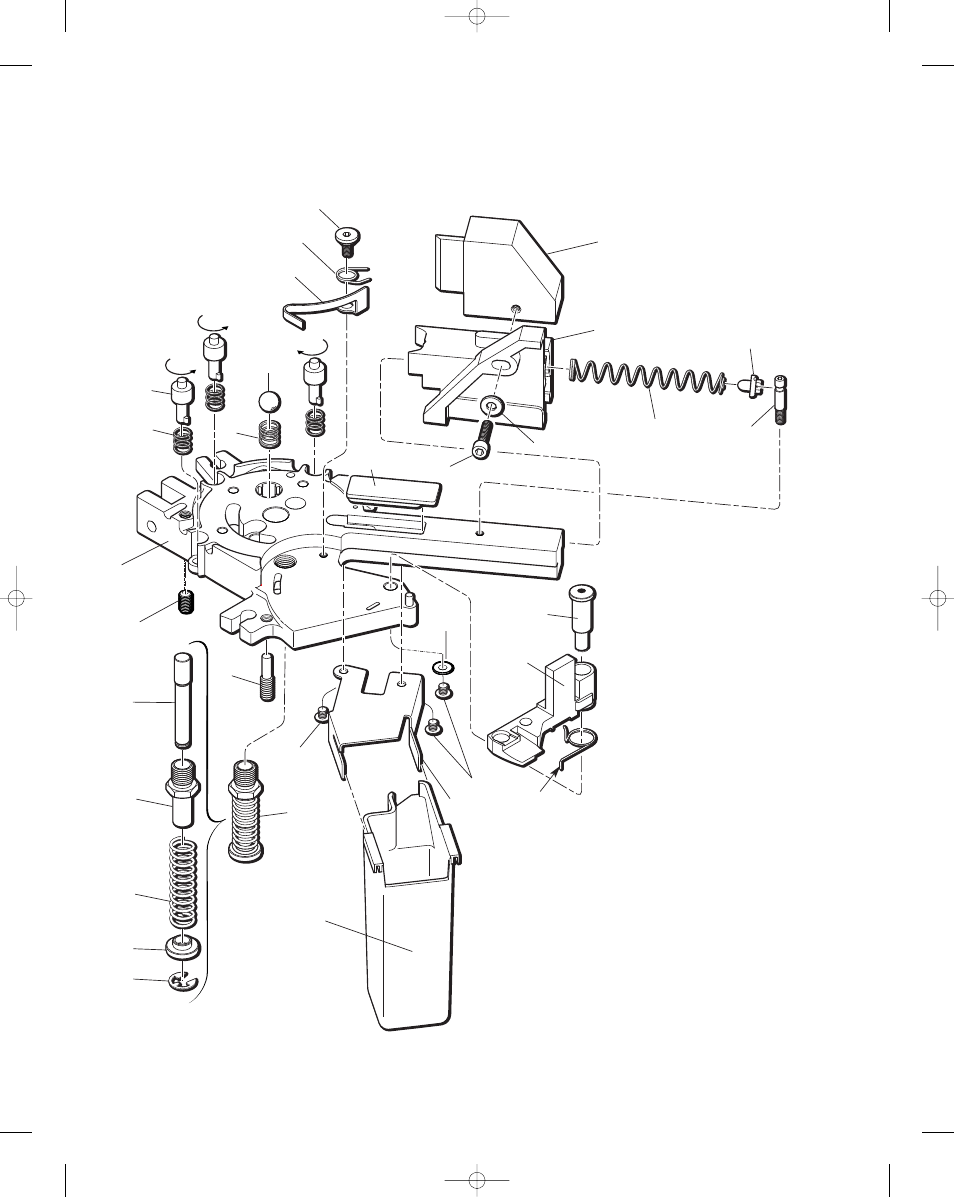

Platform Assembly
16684
16683
13937
13738
14037
16697
17944
13789
16700
16701
16702
17812
assembly
10716
13837
17639
14574
13311
16695
16696
16694
16753 (3)
17126 (3)
13891
13997
16699
16209
14689
14689
16692
16691
16693
17472
Part # Description
13311 Spring Pin
13738 10 Stainless Washers
13789 1/4-28 Set Screw
13891 3/8 Index Ball
13937 Slide Return Spring
13997 Index Ball Spring
14037 10-24 x 3/4 SHCS
14574 Case Insert Slide Spring Cap
14689 8-32 x 1/4 BHCS
16209 Spent Primer Cup Bracket
16683 Case Insert Slide
16684 Slide Block
16691 Primer Transfer Arm
16692 Arm Pivot Pin
16693 Transfer Arm Spring
16694 Station Two Locator
16695 Locator Pivot Screw
16696 Locator Torsion Spring
16697 Case Insert Ramp
16699 Spent Primer Cup
16753 Locator Buttons
17126 Locator Button Spring
17472 #8 Washer .032 Thick
17639 .175 dia. x 1/4-20 Post
17812 Primer Seater Assembly
10716 Primer Spring Cap
13837 1/4 E-Clip
16700 Primer Seater Pin
16701 Bushing
16702 Primer Seater Spring
17944 SL 900 Platform
