Dillon Precision SL 900 - Manual (Page 10)

*16741
*16743
16742
17351
*16748
13896
17141
16667
10640
12577
13989
13901
10185
10184
*11109
*11110
16668
17149
17148
17149
13742
17817
assembly
17147
16744
*16746
17477
17899
*17909
13895
* indicates a gauge specific part
Part # Description
10184 Crimp Die Spring
10185 Crimp Die Sleeve
11109 12 ga. Crimp Die
11110 12 ga. Seat Plug
12577 1/2-20 Jam Nut
13742 1/2 E-Clip
13895 10-24x3/8 BHCS
13896 1/4-20 x 3/8 BHCS
13901 3/8x24 Cam Pin Jam Nut
13989 10-24 x 5/8 SHCS
14008 Toolhead Pins
16667 Toolhead
16668 Toolhead Die Lockplate
16741 Depriming Pin
16742 SL Sizer Collet Sleeve
16743 Collet Sizer Die, 12 Ga.
16744 SL Powder Die
16746 Expander Powder Funnel
10640 Starter Crimp Die
16748 Dillon Starter Crimp Insert-1
17141 1/4 Hardened Washer
17147 Powder Die E-Clip
17148 1 1/4 Die Lock Ring
17149 1.0 Die Lock Ring
17351 Die Lock Bolt
17477 Collet Sizer Spring
17817 Powder Measure Assembly
17899 Stem Screw
17909 Eight Star Crimp
18140 Six Star Crimp
14008
Gauge Conversion Chart
part description 12 Ga. 20 Ga. 28 Ga.
Crimp Die 11109 10604 10615
Seat Plug 11110 10611 10621
Collet Sizer 16743 10606 10618
Decap Pin 16741 10607 10613
Powder Funnel 16746 10608 10619
Star Crimp Insert 16748 n/a n/a
Starter Crimp, 8-star 17909 18141 n/a
Starter Crimp, 6-star 18140 n/a 18142
Threaded Screw 17899 18143 18143
Shot Drop Tube 16726 10609 10616
Shot Bar Insert 16739 10187 10187
Shellplate 16675 10612 10625
Locator Button 16753 10602 10602
Locator Insert n/a 10603 10624
(yellow) (green)
Casefeed Sleeve 17130 10605 10617
Wad Guide 16681 10610 10620
(red) (yellow) (green)
This chart does not detail ALL the parts needed to
convert to another gauge. See the gauge conversion
sections of this manual.

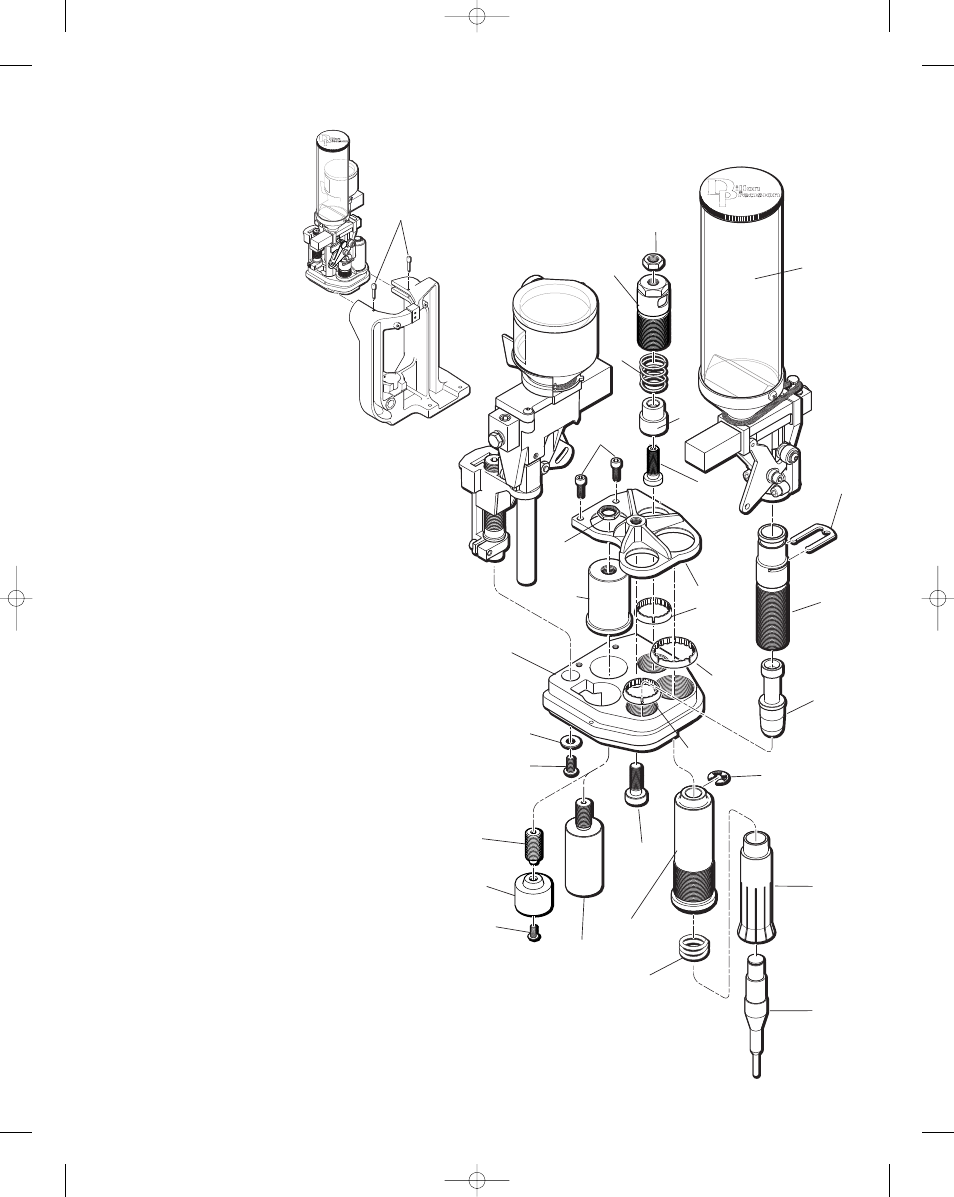

Toolhead Assembly
