Dillon Precision SL 900 User Manual
Page 12
14026
16717
17816
16721
16723
17601
16714
14023
17134
17354
13856
17603 (3)
17474 (3)
16340
14026
17815
17472
17472
17472
13773
13773
16711
14808
13923
13793
17132
14026
17472
Dillon provides a Magnetic
Pick-Up Wand (#22292) for
picking primers out of the
primer tray, or other hard to
reach places.
Part # Description
13773 8-32 Nut
13793 Collar Roller
13856 1/4 Washer SAE
13923 1/4-28 Brass Tip Set Screw
14023 8-32 x 3/4 BHCS
14026 8-32 x 1/2 BHCS
14808 Collar Roller Bushing
16340 10-32 Nylock Nut
16714 Slide/Bellcrank Spring
16717 Primer Feed Cam
16721 Tray Mounting Bracket
Part # Description
16723 Primer Feed Body
17132 Primer Drop Tube
17134 Primer Bellcrank
17354 Gate 3
17472 #8 Washer .032 Thick
17474 10-32 x 5/8 Tray Cover Screw
17601 Washer .100 Thick
17603 Black Knob
17815 Clear Primer Tray Cover
17816 SL Primer Slide Upper
17911 Primer Stop Block (with flag)

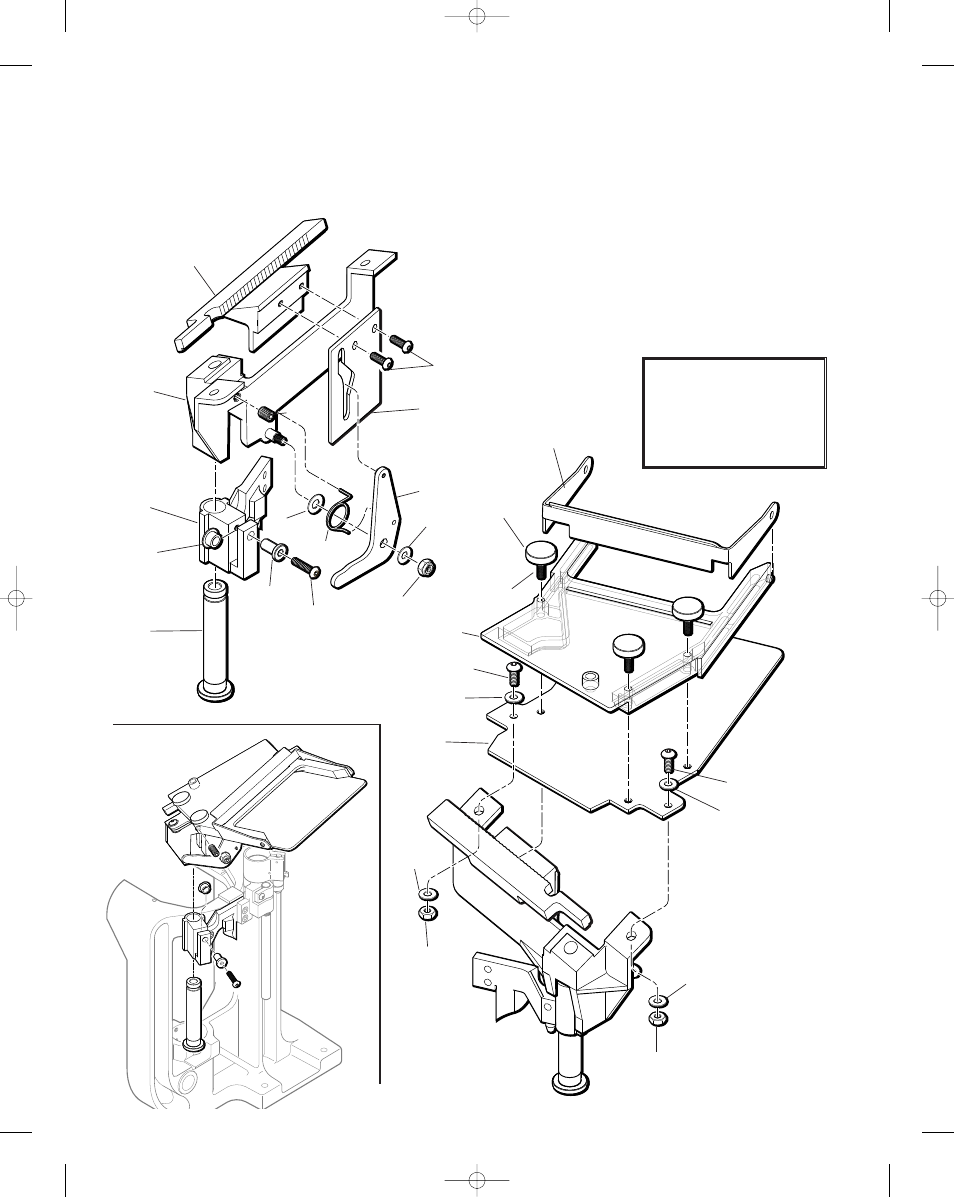

Primer Feed System Assembly - #19201
12
