Chicago Gaming Medieval Madness Remake - Manual (Page 95)

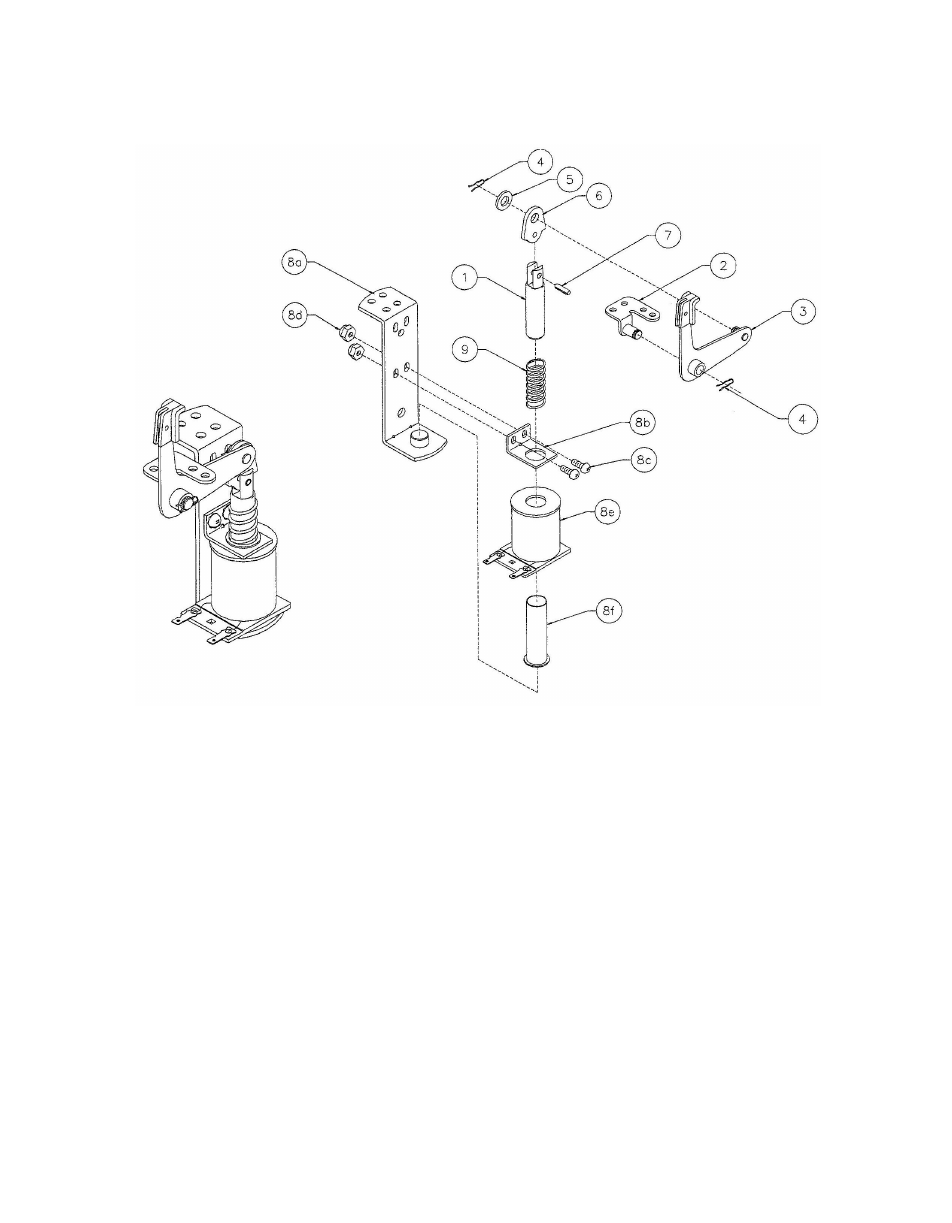

Associated Parts for Right & Left Kickers:
Item Part Number Description Item Part Number Description
1 02-2364 Coil Plunger 8 B-9362-R-3 Coil & Bracket Assembly, Right
2 A-17810 Mounting Bracket Assembly B-9362-L-2 Coil & Bracket Assembly, Left
3 A-12664 Kicker Crank Assembly a) A-17808 Bracket & Stop Assembly
4 12-6227 Hairpin Clip b) 01-8-508-S Coil Retaining Bracket
5 4700-00030-00 FW, 17/64 x 1/2 x 15ga. c)
4406-01119-00 Nut, 6-32 ESN
7 20-8716-5 Roll Pin, 1/8 x 7/16" e) AE-26-1200 Coil Assembly
f) 03-7066 Coil Tubing
g) H-19523 Mini Solenoid Cable
9 10-128 Spring
PIN-SUB-A17811L
PIN-SUB-A17811R
Kicker Arm (Slingshot) Assembly
4006-01017-06 Mach. Screw, 6-32 x 3/8"
6 03-8085 Armature Link d)
2-1 2
