5.5 Converting from CF to CFast Slot
DB-3CFAST is an optional accessory for the cPCI-3970 series. To
change the CF1 slot from CompactFlash to CFast, follow the
instructions below. For cPCI-3970 models with 2 or 3 slots, the
layer-2 and layer-3 daughter boards and front panel must first be
removed. For single slot models skip ahead to Installing the
DB-3CFAST Daughter Board
below.
Removing the Layer-3 Daughter Board
For "P/U" models, follow the instructions below to remove the
layer-3 daughter board. For "D/G" 2-slot models, skip ahead to
Removing the Layer-2 Daughter Board
below.

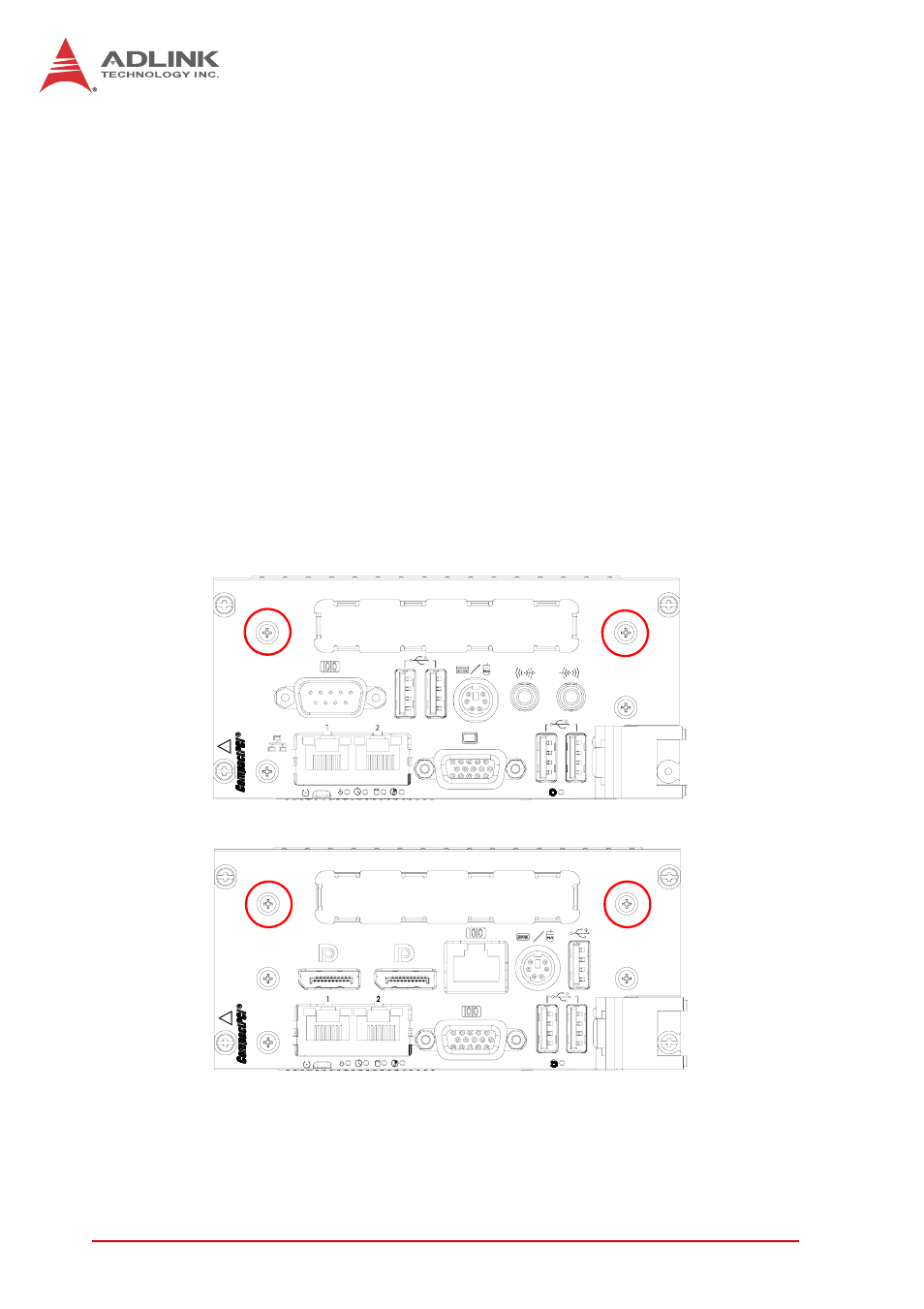

1. Remove the two screws on either side of the PMX/XMC
slot on the "P/U" front panel.
2. Remove the 4 screws securing the DB-3UMC daughter
board to the layer-2 daughter board.
3. Lift the DB-3UMC daughter board from the cPCI-3970
assembly.
cPCI-3970P
ˣ ˠ ˖ ˂ ˫ ˠ ˖
cPCI-3970U
ˣ ˠ ˖ ˂ ˫ ˠ ˖
