48

Board Interfaces

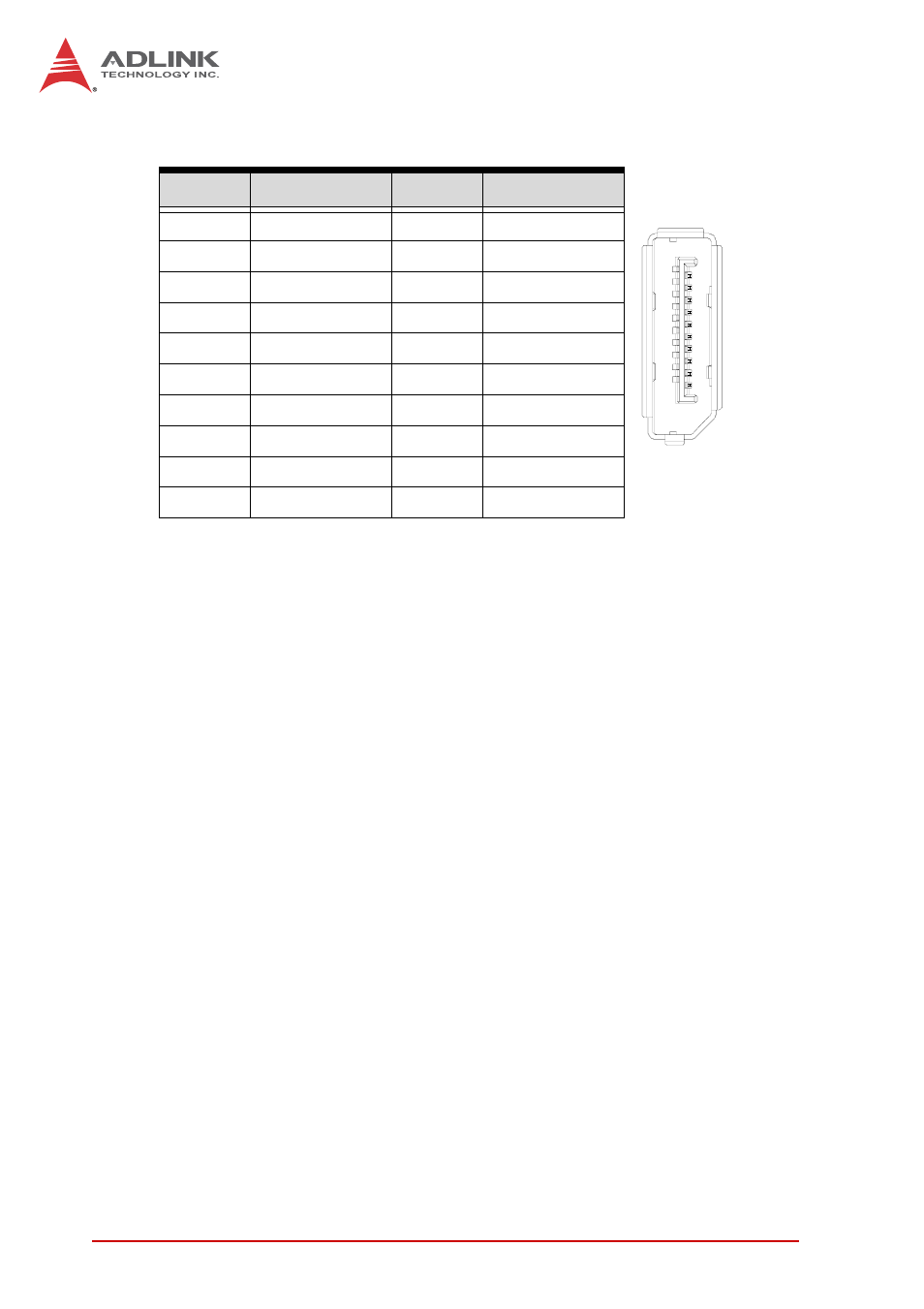

DisplayPort Connectors

Table 4-17: DisplayPort Pin Definition

Pin #

Signal

Pin #

Signal

1

CN_DP0_P

2

Ground

3

CN_DP0_N

4

CN_DP1_P

5

Ground

6

CN_DP1_N

7

CN_DP2_P

8

Ground

9

CN_DP2_N

10

CN_DP3_P

11

Ground

12

CN_DP3_N

13

CN_CAD-L

14

CN_CEC

15

CN_AUX_P

16

Ground

17

CN_AUX_N

18

DDP_HPD

19

Ground

20

P3V3

1

2

19

2 0
