Board Interfaces 33
cPCI-3970
4.5 cPCI-3970, cPCI-3970D, cPCI-3970G Faceplate

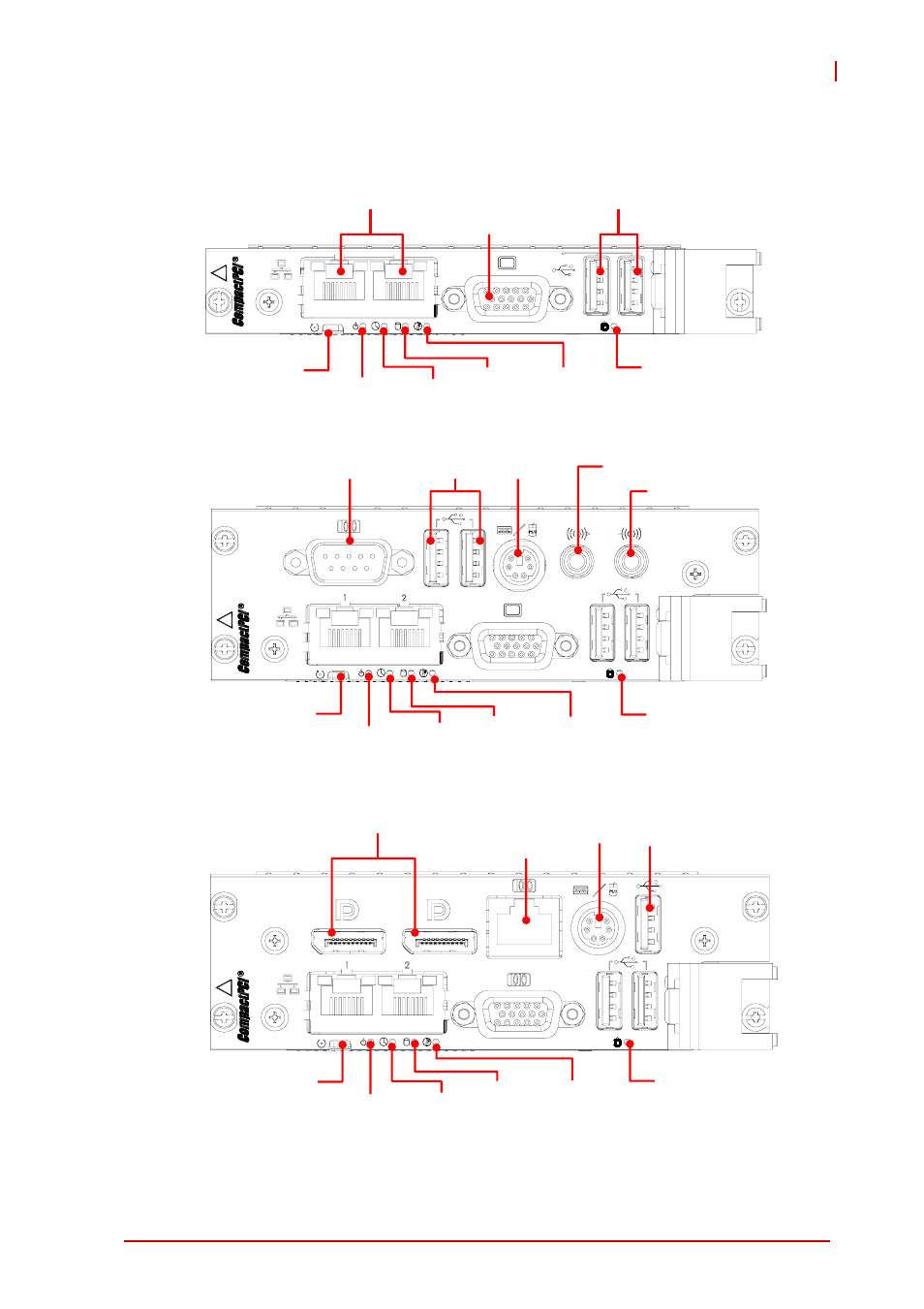

Figure 4-5: cPCI-3970, cPCI-3970D, cPCI-3970G Front Panel Layout
(See cPCI-3970 Processor Blade Specifications, Note 1 on page 10 for LAN1/2 info.)
cPCI-3970
cPCI-3970D
cPCI-3970G
Overheat LED
GP LED
WDT LED
VGA
0 . 2 B S U 2 / 1 E b G
Reset Button
Power LED
COM1
PS/2
KB/MS Line-in
Line-out
USB 2.0
WDT LED
Reset Button
Power LED
GP LED
HDD LED Overheat LED
WDT LED
Reset Button
Power LED
GP LED
HDD LED Overheat LED
COM1
USB 2.0
DisplayPorts
PS/2
KB/MS
HDD LED
