5.3 SATA Drive Installation
The cPCI-3970D/G 2-slot version and cPCI-3970P/U 3-slot version
provide space to install a slim type 2.5" Serial-ATA storage drive.
Installing a SATA Drive - cPCI-3970D/G(P/U)

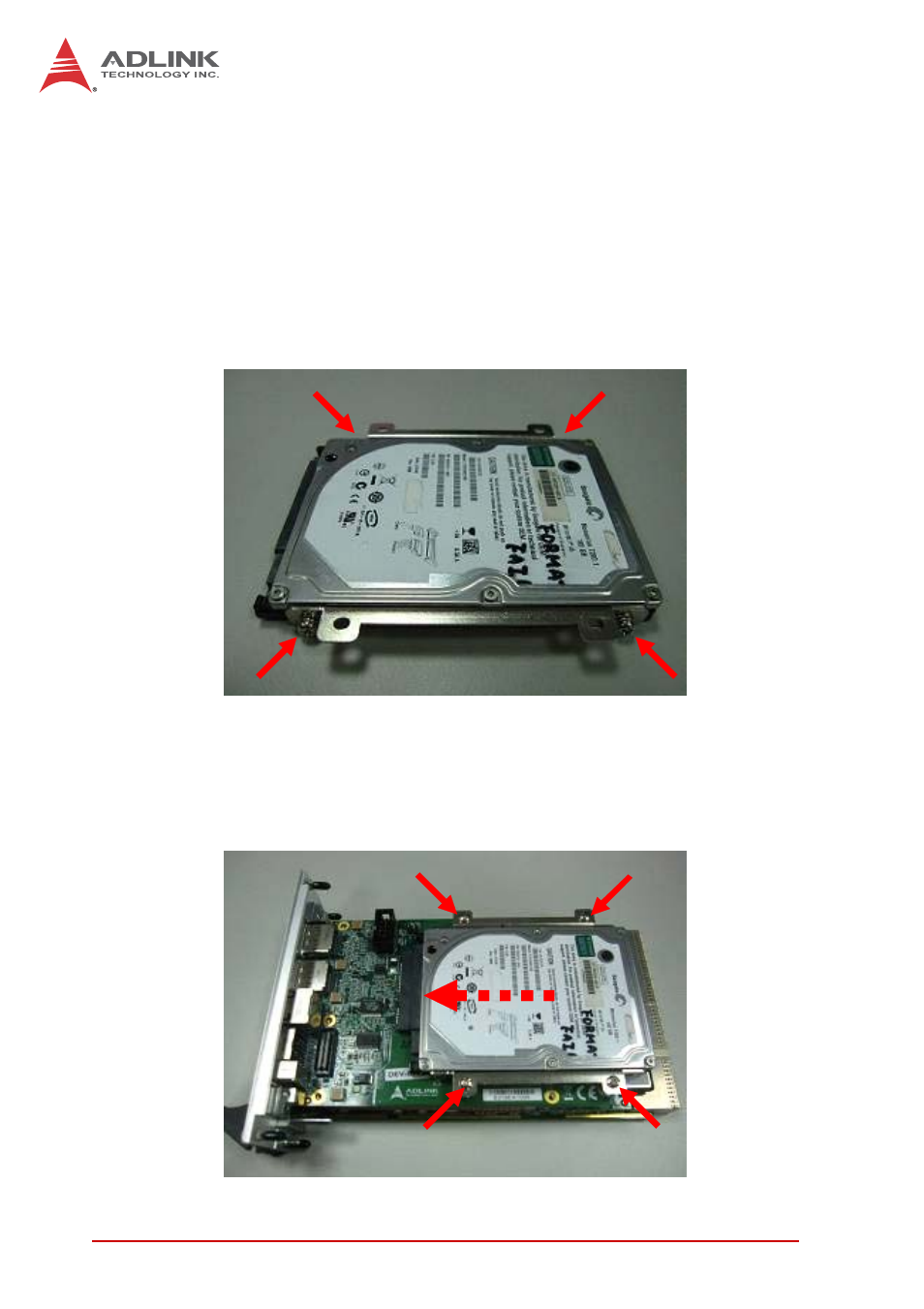

1. Drive mounting brackets and screws are provided in the
accessory kit. Secure the brackets to the SATA drive
with the four M3 screws provided.
2. Align the SATA drive assembly with the onboard SATA
connector on the cPCI-3970 as shown and push it in
until it is properly seated. Secure the drive assembly to
the layer-2 daughter board (DB-3610L2 or DB-3970L2)
as shown using the four M2.5 screws provided.
