18 Specifications
cPCI-R3P00T RTM

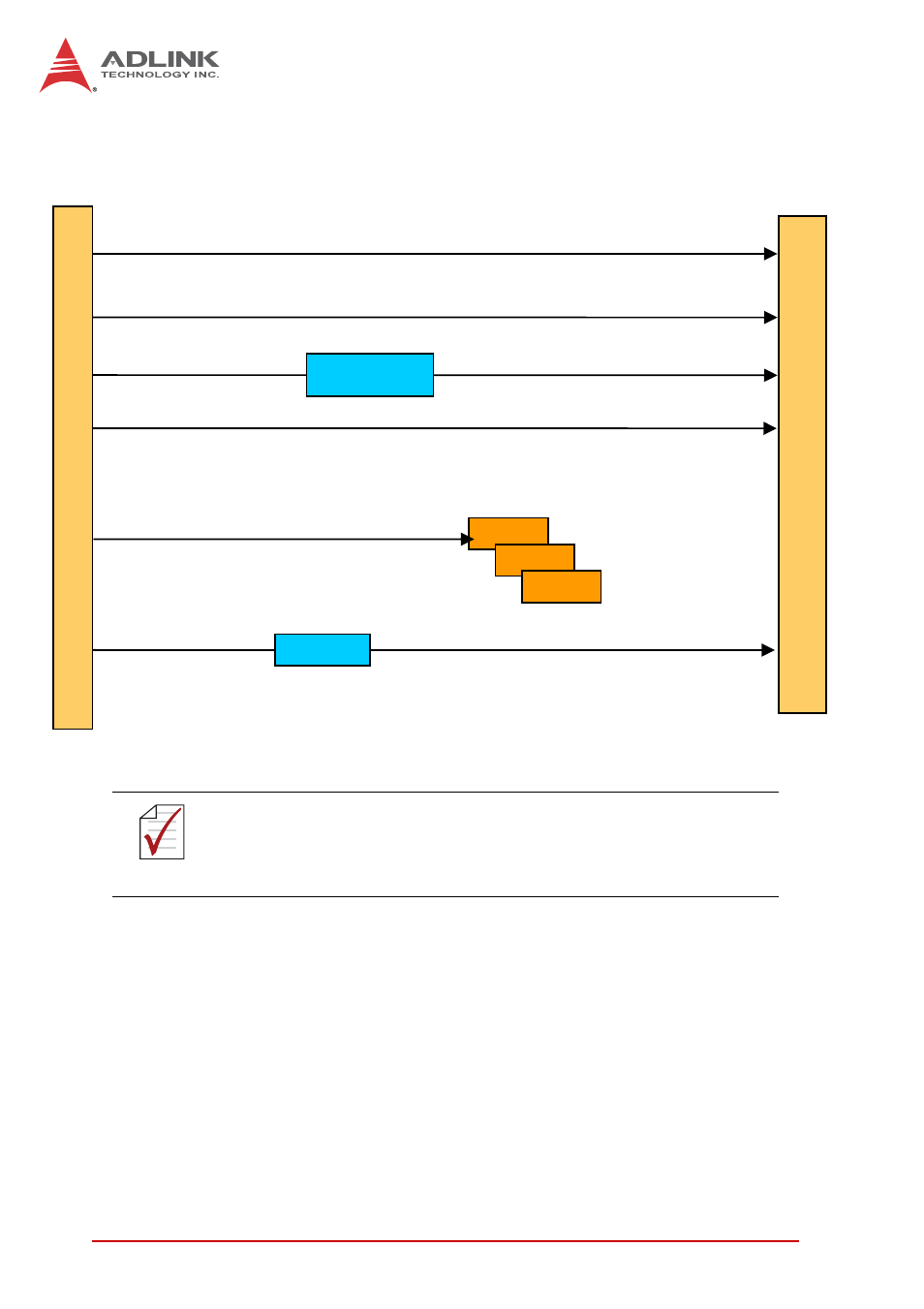

Figure 2-7: cPCI-R3P00T RTM Functional Block Diagram
NOTE: NOTE:
*cPCI-R3P00T GbE ports are LAN1/2 due to PCI-Express root
port sequence requirements of the PCH; cPCI-3970 front panel
GbE ports change to LAN3/4 when using the cPCI-R3P00T.
2x USB
GbE 1/2*
7 pin
SATA3/4/5
J2
R
E
A
R
P
A
N
E
L
7 pin
7 pin
VGA
FT232R
3 B S U
COM4 (Tx, Rx)
82580DB
PCIe x4
COM5 RS-232/422/485
