36 Signal Connections
3.12 Pulse Input Signals PA and PB (PCI-8158)
The PCI-8158 can accept differential pulse input signals through
the pins of PN1 listed below. The pulse behaves like an encoder.
The A-B phase signals generate the positioning information, which
guides the motor.
The pulse signals are used for Axis 0 to Axis 7. User can decide to
enable or disable each axis pulse with
_8158_disable_pulser_input function.

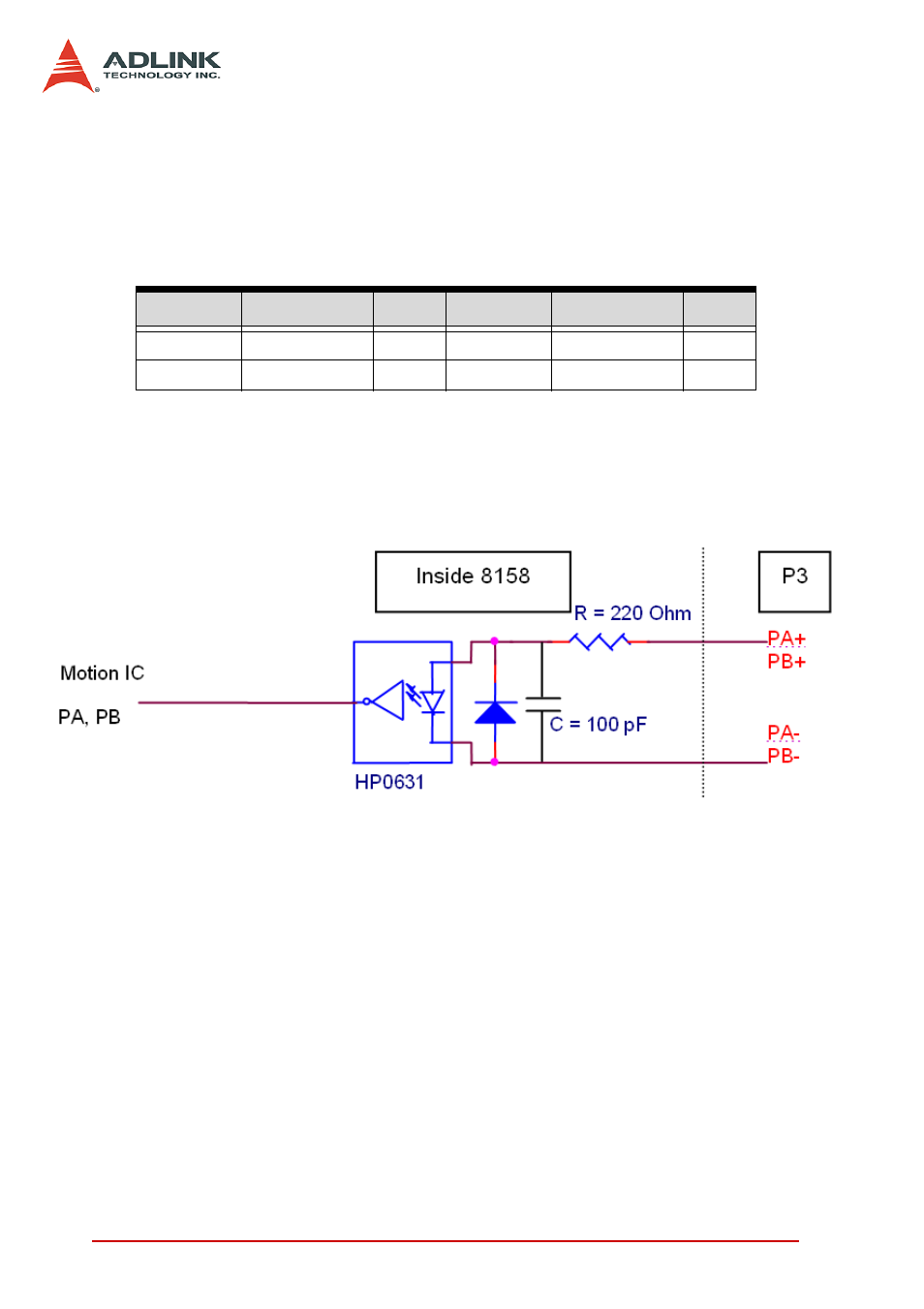

The wiring diagram of the differential pulse input pins are as fol-
lows:
P3 Pin No Signal Name Axis # P3 Pin No Signal Name Axis #
2 PA+ 0-7 3 PA- 0-7
4 PB+ 0-7 5 PB- 0-7
