Installation

15

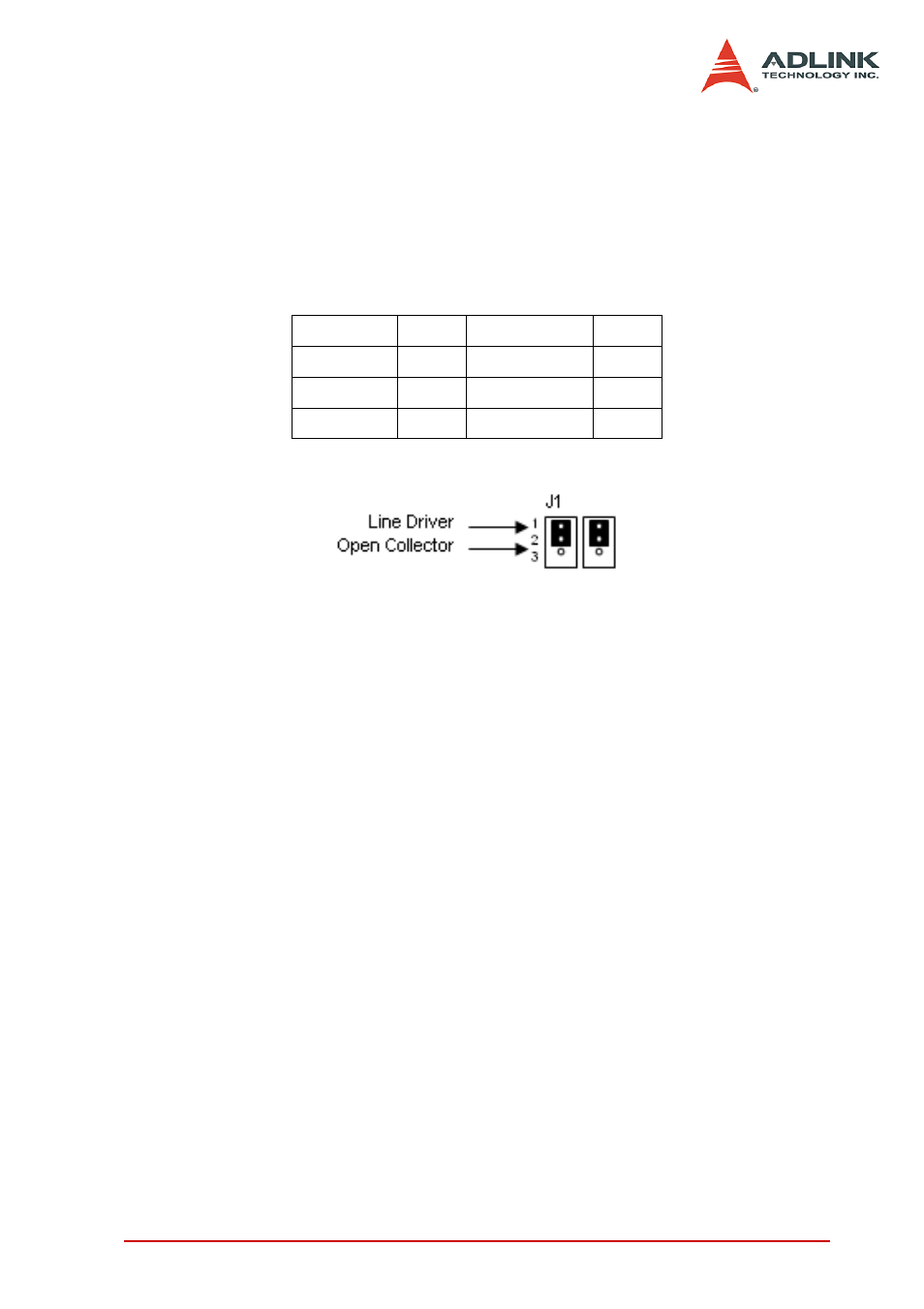

2.7 J1 to J16 Jumper Settings for Pulse Output

J1-J16 are used to set the type of pulse output signals (DIR and
OUT). The output signal type can either be differential line driver
or open collector output. Refer to Section 3.1 for detail jumper set-
tings. The default setting is differential line driver mode. The map-
ping table is as follows:

Table 2-3: J1 to J16 Jumper Settings

JP1 & JP2 Axis 0 JP9 & JP10 Axis 4
JP3 & JP4 Axis 1 JP11 & JP12 Axis 5
JP5 & JP6 Axis 2 JP13 & JP14 Axis 6
JP7 & JP8 Axis 3 JP15 & JP16 Axis 7
