Delta N028314 User Manual
Page 11
11

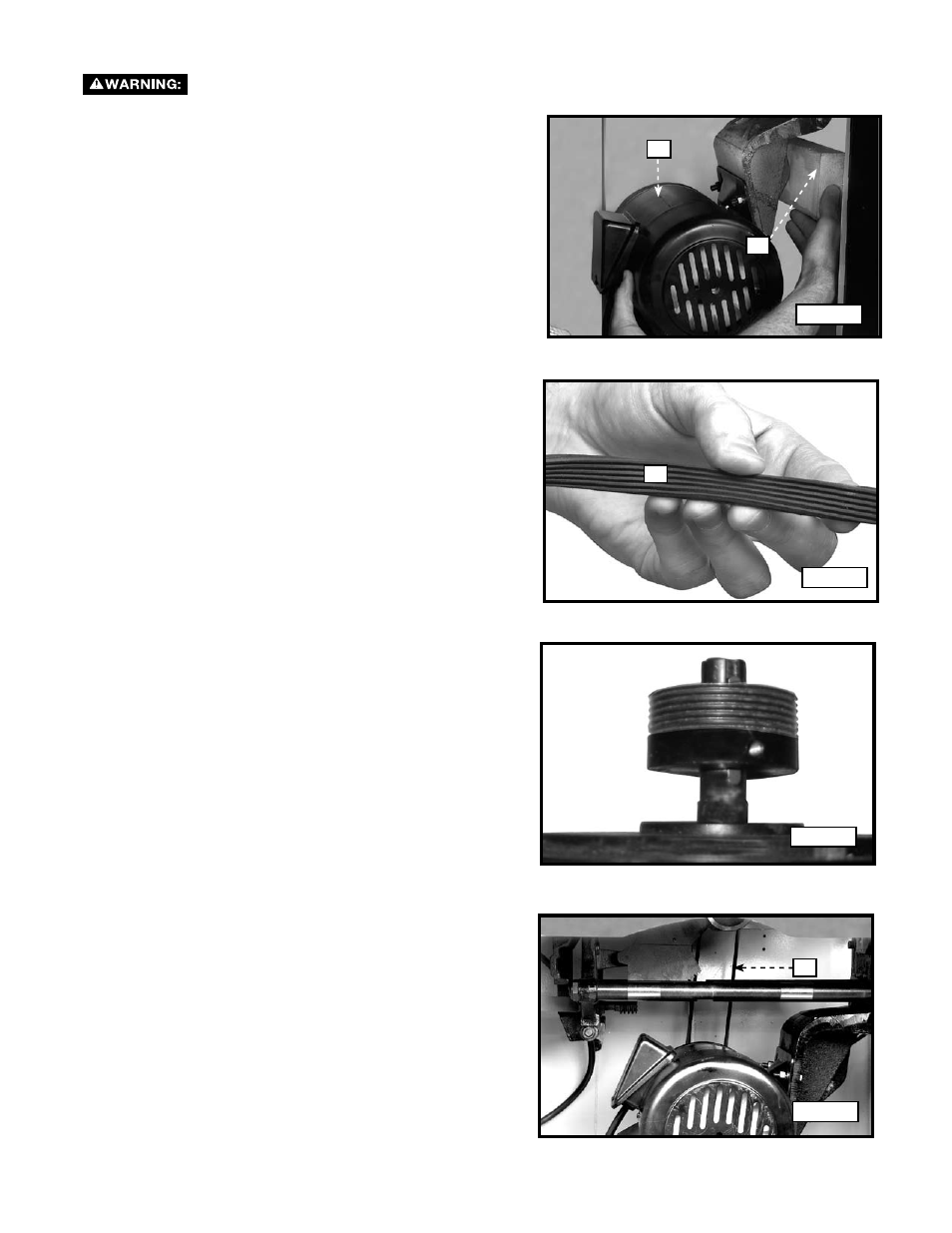

1. Lift the motor to remove the foam packing block.
2. While lifting the motor (A) Fig. 5, place a 10" - 12"
(254 mm to 305 mm) long piece of 2x4 (B) under the
motor bracket to prop up the motor.
3. Place one end of the grooved belt (C) Fig. 6 onto the
grooved pulley located behind the motor (shown in
Fig. 7). Place the other end of the grooved belt onto
the grooved pulley located directly above on the blade
arbor.
Ensure that the grooves of the belt completely make contact
with the grooves in these pulleys.
.
4. Carefully lift the motor and remove the block of wood.
The weight of the motor will provide the correct tension
on the belt.
5. The belt (C) Fig. 8 is shown installed correctly as seen
through the open door in the side of the saw.
INSTALLINg THE dRIVE BELT
disconnect the machine from the power source!
A
B
C
C
Fig. 5
Fig. 6
Fig. 7
Fig. 8
