Page 10

ASSEMBLY

ASSEMBLY TOOLS REQUIREd

Phillips-head screw driver (not supplied)

12 mm, 13 mm, and 18 mm open-end wrenches (not supplied)

Other wrenches and a drill with a 1/4" (6,4 mm) bit may be required, depending on the fence or table you choose.

ASSEMBLY TIME ESTIMATE

Assembly for this machine takes approximately two to three hours

For your own safety, do not connect the machine to the power source until the machine is completely

assembled and you read and understand the entire instruction manual.

To bolt the saw to a permanent location:

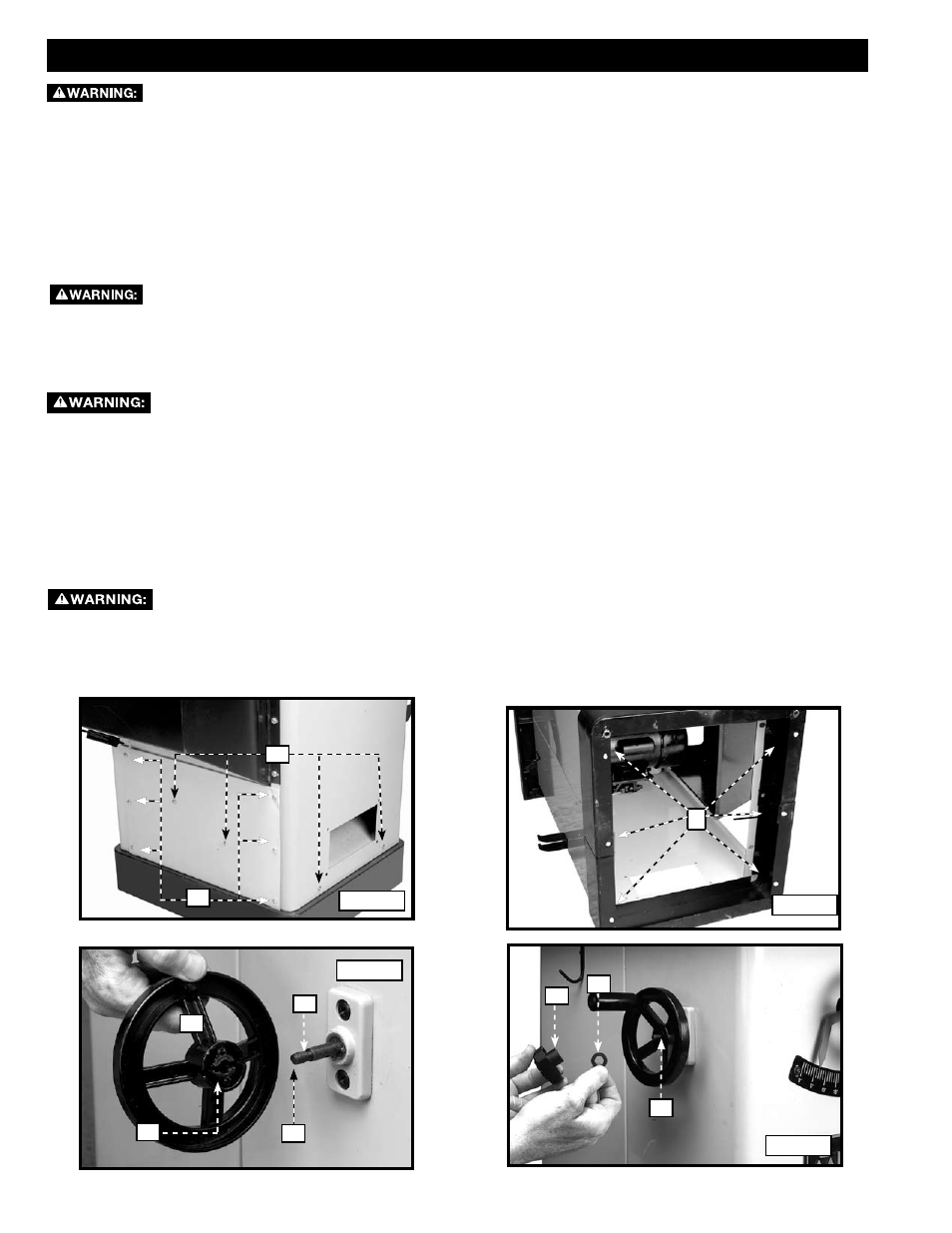

1. Remove the six screws that secure the dust chute inside the saw cabinet, four of which are shown at (A) Fig. 1.

2. Remove the side panel below the motor cover by loosening all six screws (B).

3. Find the holes (C) Fig. 2 in the bottom of the saw and mark their position on the floor where you want to place the saw.

4. Drill pilot holes in these spots and attach the machine to the floor using the appropriate hardware.

5. Reattach the dust chute and side panel.

SECURINg THE SAW TO A PERMANENT LOCATION

disconnect the machine from the power source!

1. Place the blade-tilting handwheel (A) Fig. 3 on the shaft (B) on the left side of the saw cabinet. Make certain that the slot

2. Place a nylon washer (E) Fig. 4 on the shaft. Thread the locking knob (F) Fig. 4 on the shaft (G). Tighten securely.

3. Attach the blade raising handwheel in the same manner.

BLAdE AdJUSTINg HANdWHEELS

disconnect the machine from the power source!

Fig. 2

Fig. 3

Fig. 4

To reduce the risk of injury, turn unit off and disconnect it from power source before installing and

removing accessories, before adjusting or when making repairs. An accidental start-up can cause injury.

Fig. 1
