INSTALLATION

COMMISSIONINO

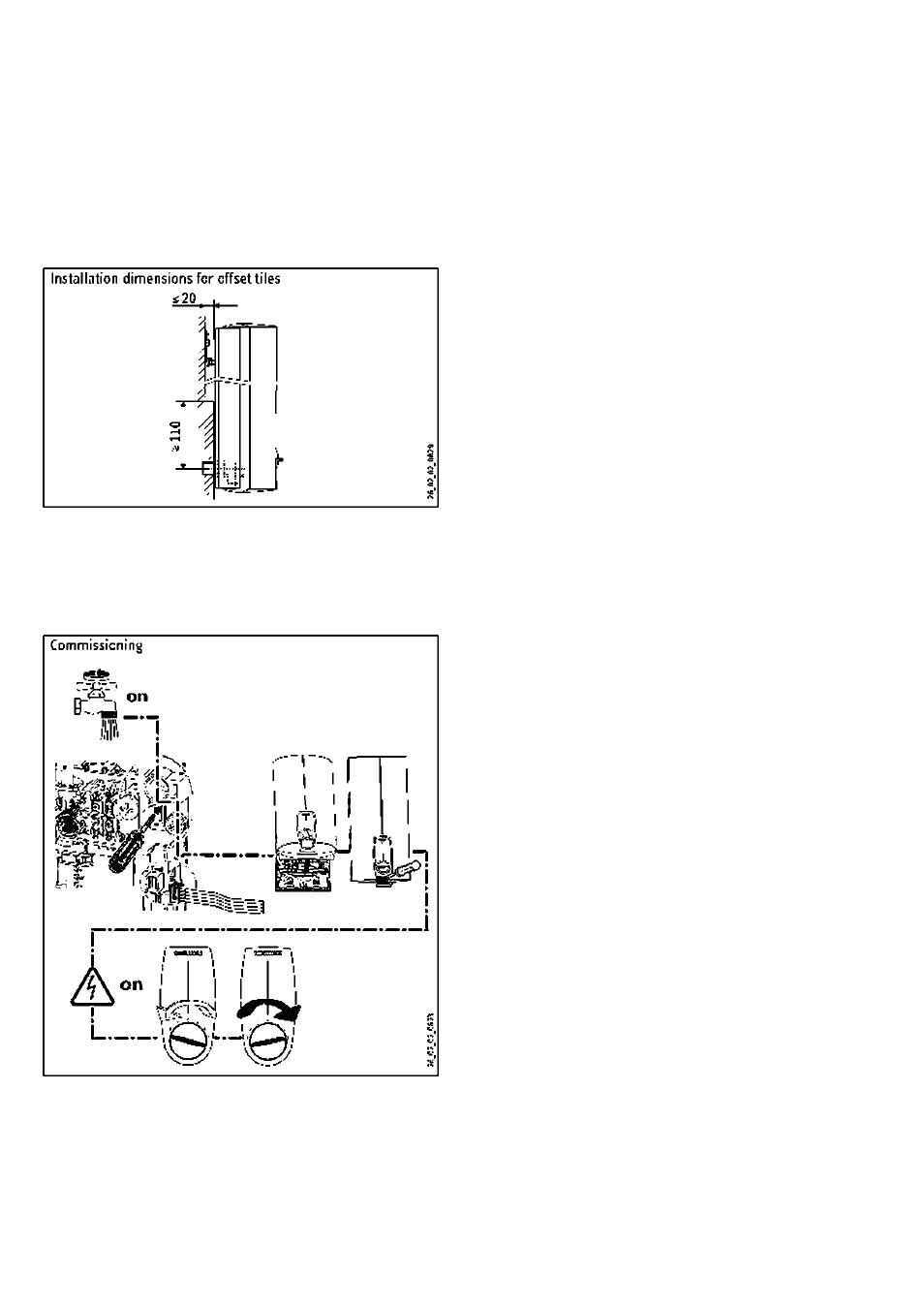

9.5.11 Installation for offsettiles

This appliance can be instal led where tiles are offset. See diagram

for maximum tile offset and minimum contact area of the appliance.

Adjust the wnl I clearance and lock the back panel with the fixing

toggle by turning it clockwise through 90*^.

10. Commissioning

Danger of electrocution

Commissioning must only be carried out by an author

ised contractor in accordance with safety regulations.

»Open and close allconnected draw-offvalves several times, until

all air has been vented from the pipework and the appliance.

» Activatethe safety pressure limiter by pressing the reset button.

The

appliance

supplied

with

the

safety

pressure

limiter

deactivated.

»Push

the

temperature

selector

plug

into

the

"settemperature"

PCB. Ensure thatthe gasket pocket on the lower part of the back

panel is not bent and that it seals the lower part of the user

interface while the appliance cap is being installed.

»Fit the appliance cap nnd secure with a screw.

» Switch the mains power ON.

»Calibrate the temperature by turning the temperature selector

as far as possible clockwise nnd then anti-clockwise.

Check the appliance function.

» Remove the protective foil from the user interface.

11. Appliance handover

Explain the appliance function to the user and familiarise him/

her with its operation.

»Make the user aware of potential dangers, especially the risk

of scalding.

» Hand over these instructions to the user for safe-keeping.
