INSTALLATION
INSTALLATION
9.S Installation versions
9.5.1
Power supply from above for unfinished vi/alls

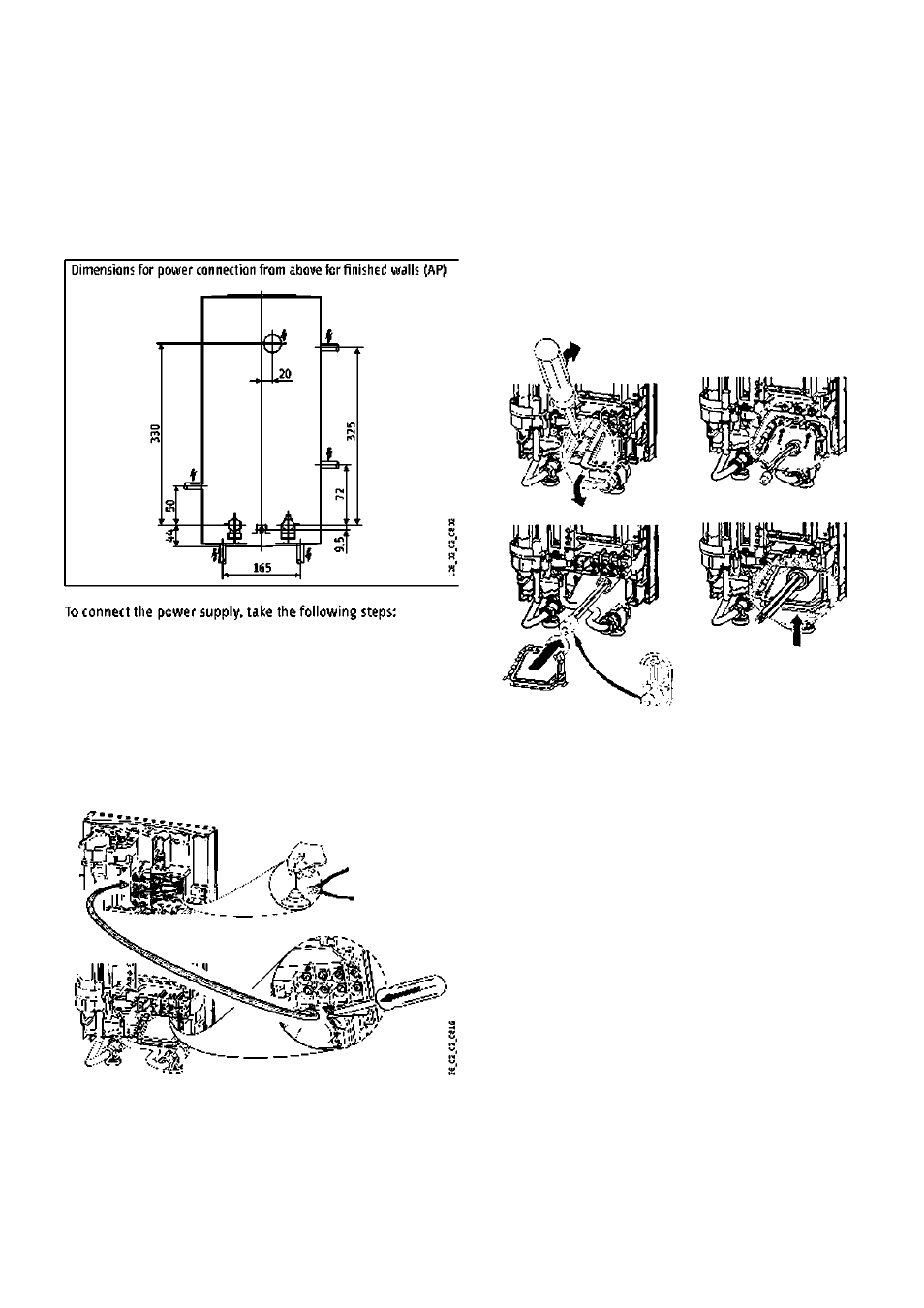

Thefollowing diagram shows the dimensions for the power supply
from above.
»Open out the cable grommet to match the cross-section of the
power cable.
»Push down and remove the locking hookthat secures the mains
terminal.
»Move the mains terminal in the appliance from the bottom to
the top and click into place.
Power supply from above
9.5.2
Power supply for finished walls
The appliance can also be connected if the power supply has been
routed over finished walls. This applies to the connection from
below and above. Take the fallowing steps:
»Cut
or
break
knock-outs
in
the
back
panel
and
appliance
cap. Possible knock-out paints can be seen in the diagram
"Dimensions for power supply".
•~| Changing the type of protection
1-1 If the appliance has been connected with a power
supply on finished walls, the type of protection on the
type plate must be changed from IP 25 to IP 24. Use a
permanent marker for that.
»Cress out *IP 25" and mark the box "IP 24".
9.5.3
Power supply for large cross*$ections
Removing and installing the cable grommet
CO
_l
19
If cables with a large cross-section are used, the cable grommet
enn be fitted after the appliance has been installed. Take the
following steps:
»Before installing the appliance, use a screwdriver to push the
cable grommet out.
»Push the appliance over the stud of the mounting bracket, sc
that it breaks through the soft seal.
»Push the fixing toggle onto the stud of the mounting bracket that
penetrates the back panel.
»Press the back panel h'rmlyinto place and lockthe fixing toggle
by turning it through 90^
» Push the cable gremmet over the power cable. For this, use the
installation aid. For a power cable of 10 or 16 mm^, the hole in
the cable grommet must be enlarged. Click the cable grommet
into place in the back panel.
9.5.4
Connecting a load shedding relay
Install the load shedding relay in conjunction with other electric
appliances, e.g. electric storage heaters. The relay responds when
the instantaneous water heater starts. The load shedding relay is
available from Stiebel Eltron as a special accessory.
DHB-E ... SLi electronic | 29
