INSTALLATION
INSTALLATION
Coding card fcr output changeover
..... \,
-11»
n-‘
M

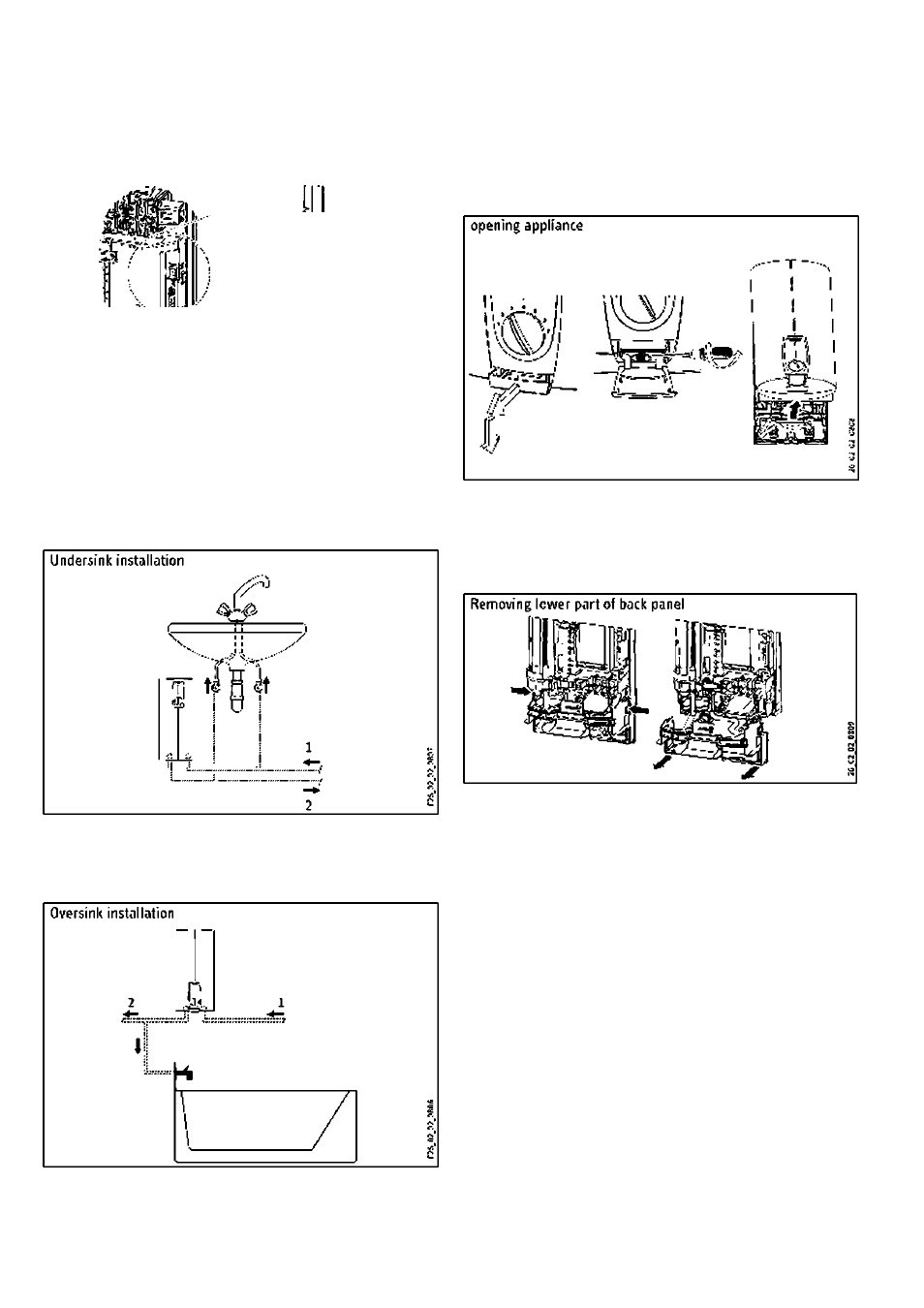

9.2 Installation
9.S Installation location
The iippliance is exclusively designed for installotion cn a solid
wall. Ensure that the wall has a sufficient load-bearing capacity.
Always install the appliance vertically (over or undersink) in a
room free from the risk of frost,
9.3.1 Undersifik
1 Cold water inlet
2 DHW outlet
9.3.2 Oversifik
1 Cold water inlet
2 DHW outlet
9.4 Installation
9.A.1 Opening the appliance
To maintain contact protection in the delivered condition, some
models have a strip of card inserted in the user interface. Remove
this strip before installing the appliance.
9.4.2 Removing the back panel
y> Press the two locking hooks on the r.h. and l.h. side and remove
the lower part towards the front.
9.4.3 Pitting the mounting bracket
»Mark out the holes for drilling using the installation template.
If the appliance is to be installed with water connections for
finished walls, the fixing hole in the lower part of the template
must also be marked out.
8 Drill the holes and secure the mounting bracket with two screws
and two rawl plugs. The screws and rawl plugs are not part of
the standard delivery.
