INSTALLATION
INSTALLATION
B.5.5 Offset instalfation pipe assembly
Part number 220290, ccmprismg: Universal mcunting Frame {For
technical description see part number 220291) and pipe bendsfor
the vertical offset of the appliance against the water connection
by 90 mm downwards.
Pipe assembly, replacement of a gas fired water heater
Part number 220510, comprising: Universal mounting frame (for
technical description see part number 220291) and pipe bends For
installation with existing gas Fired water heater connections (cold
water connection on the left: DHW connection on the right).
B.5.7 DHB replacement pipe assembly
Part number 159B76, comprising: 2 x water plug-in couplings.
These allow the appliance to be connected to the available water
plug-in connections of a DHB.
B.S.B Load shedding relay LR 1*A
Part number 0017B6. The load shedding relay enables operation
with,
for
example,
electric
storage
heaters.
The
instantaneous
water heater is operated via the load shedding relay prior to any
other appliance.
9. Installation
9.1 Insiallaiion information
9.1.1
Flow pressure
If the flow rate required for the appliance to switch on is net
achieved even with the tap fully open, remove the flow limiter.
Replace it with the plastic profile wnsher supplied. If required the ^
pressure in the water inslalintion can also be raised.
A
Thermostatic valves.
For the thermostatic valve to function correctly, the
flow limiter for this valve must not be replaced with
the plastic profile washer.

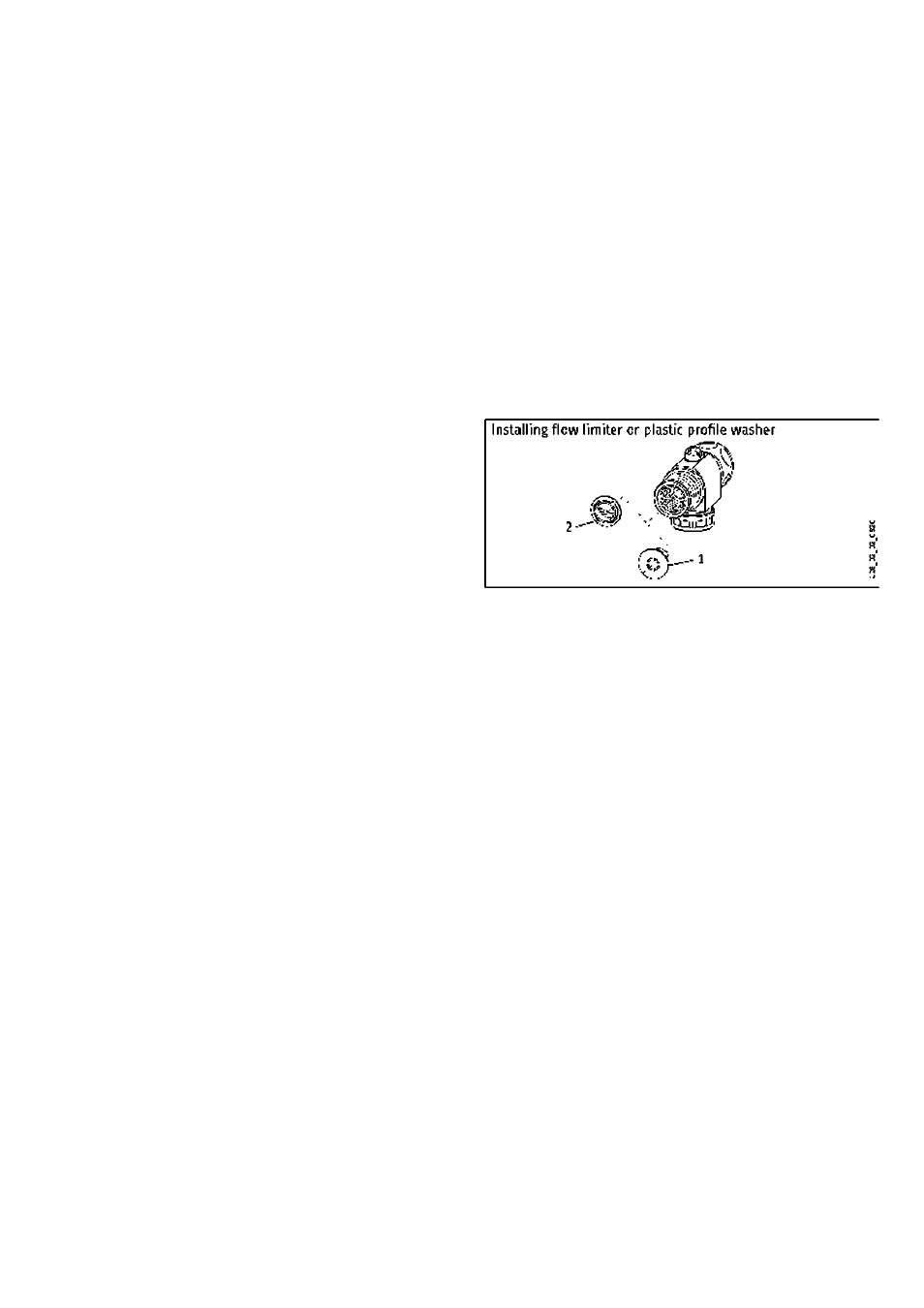

19
1
Flow limiter
2
Plastic profile washer
9.1.2
Flexible water connection lines
If the appliance is connected with flexible water connection lines,
ensure that the bayonet fittings of the pipe bends do not become
twisted inside the appliance.
9.1.3
Appliance with changeover connected load
The appliance DHB-E lB/2l/24SLiissetto2l kW when delivered.
If the appliance is installed with a different output, take the
following steps:
»Re-plug the coding card according to the selected output: for
selectable
output
and
fuse
protection
of
the
appliance
see
"Specificaticn“.
»Mark the selected output on the type plate using a permanent
marker.
»Install the flew limiter with a rating corresponding to that of
the appliance. The colour of the flow limiter is given in the table
"Specification".
DHB-E ... SLi electronic I 25
