SECTION 3
OPERATION

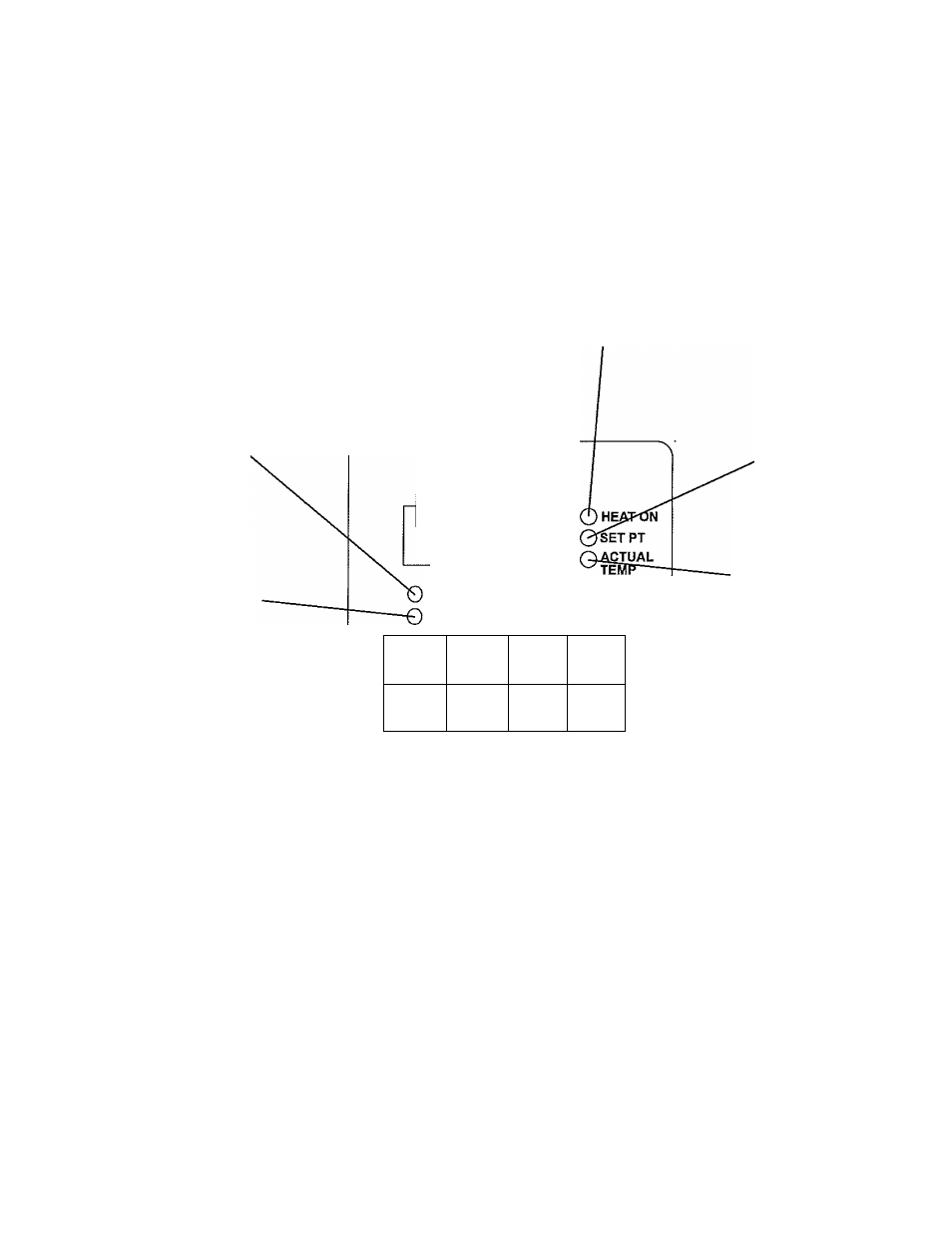

"SP LOCK"
Light
Lights when the
set point is locked
out from changes.
This setting can
only be changed by
service personnel.
OVERTEMP
Light
Lights when the oven
temperature is
greater than 650“F
(343"C). Referto
Quick Reference:
Troubleshooting in
this section.
Temperature
Key
Press this key once
to view thè Actuai
Temperature in thè
Display.
Display
Shows the Set Point
or the Actual Tem
perature in degrees
Fahrenheit (F) or
Celsius (C).
"HEAT ON"
Light
Lights when the
burner Is in
operation.
c
nn
f
J U U I
SP LOCK
OVERTEMP
fi /t]
V_Z___
_J
"SET PT"
(setpoint)
Light
Lights when the
set point is shown
in the display.
"ACTUAL TEMP"
Light
Lights when the Actual
Temperature is shown
in the display.
Service Key
Service use
only.
Unlock Key
Press this key
together with the Set
Point Key to allow the
Set Point to be
changed. Changes
can only be made for
60 seconds.
Up Arrow and Down
Arrow Keys
Press these keys to
adjust the Set Point up or
down. If the Set Point will
not change, refer to Set
Point Key and Unlock Key
in this section.
Set Point Key
Press this key
together with the
Unlock Key to allow
the Set Point to be
changed.
Changes can only be
made for 60 sec
onds.
