NOTE: The oven, when instaHed, must be electricaHy
grounded in accordance with hcai codes, or in the ab­
sence of iocai codes, with the Nationai Electricai Code
(NEC), orANSi/NFPATO.
SECTION 2
INSTALLATION
NOTE
There must be adequate clearance between
the oven and any adjacent combustible con­
struction, Clearance must also be provided
for servicing and for operation.
CAUTION
It is recommended that the oven be placed under
a ventilation hood for adequate air supply and
ventiiation.
CAUTION
Do not obstruct the flow of ventilation air to and
from your oven. Do not obstruct the fan holes in
the rear of the unit.
I. UNLOADING
Your Blodgett S1820G-Series Oven is shipped partially
assembled. It will arrive in a carton on a crate.
Carton size for a S1820G-Series Oven is:
46" {1168mm) Longx
39" {990mm) Wide X
29"{736mm)Highx
The crate and cartonmuMbe examined before signing the
Bill of Lading. Report any visible damage to the transport
company, and check for the proper number of crates. If
apparent damage is found, make arrangements to file a
claim against the carrier. Surface Interstate Commerce
Regulations {U.S.A.) require that the claim must be
initiated by the consignee within 10 days from the date that
the shipment Is received.
PARTS LIST FOR SERIES S1820G GAS OVEN
INSTALLATION KIT
Single Stack Oven
P/N 59182
ITEM
NO. QTY PART NO. DESCRIPTION
1 4 3101908 LEG 4" AD FT
2 2 48392 INSULATION BOTTOM TRAY
3 1 48394 BOTTOM TRAY WELDMENT
4 1 48396 TOP COVER
5 4 51387 SCREW MSSLT THREAD 8-32 x 1/2, 18-8
6 1 60213 OWNER'S OPERATING & INSTALUTION MANUAL
7 1 22450-0228 GAS HOSE RESTRAINT CABLE
8 1 22361-0001 GAS HOSE
9 1 49975 CORD & PLUG NEMA L6-20P
10 1 23115-0009 MANUAL GAS VALVE, 3/4" x 1/2, COUPLER
11 1 31823 Reducer, 3/4" - 1/2"
10
rTT~
iy—
11

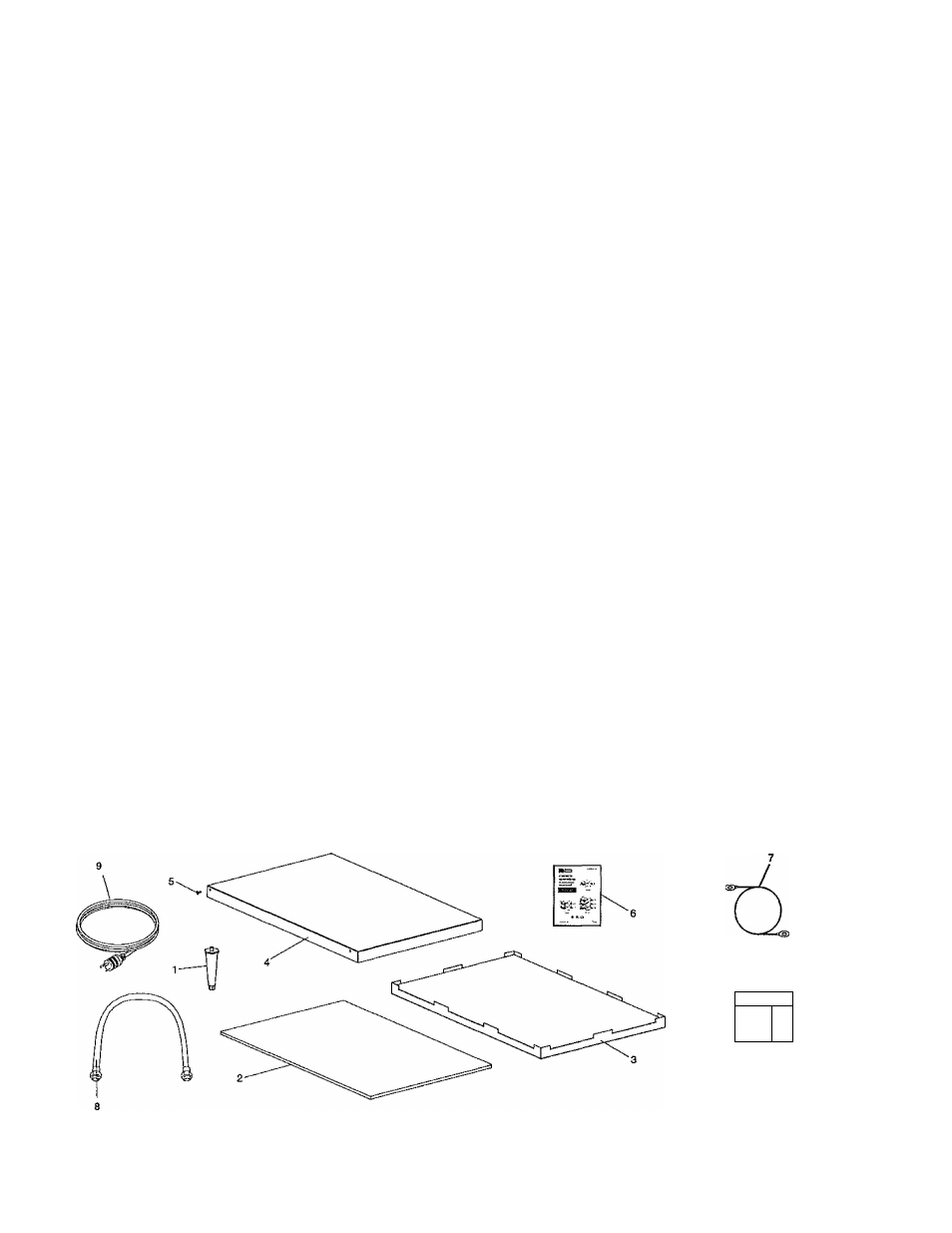

Figure 2-1. S1820G-Series Gas Oven Installation Parts
