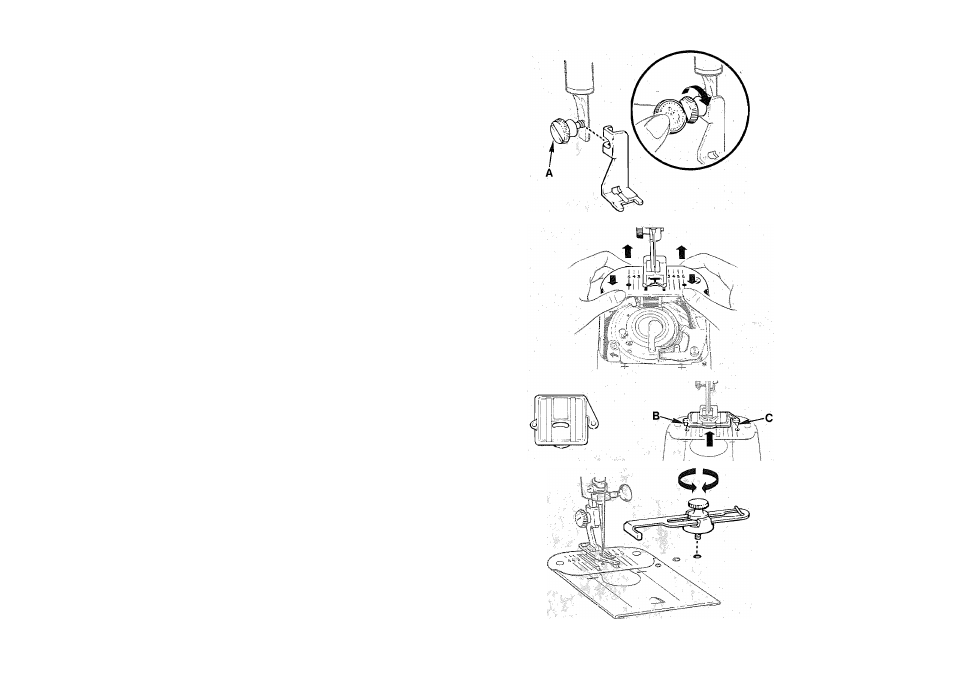

One-piece Presser Feet

(Button Foot)

• Raise needle and take-up lever to highest position by

turning the hand wheel

toward you.

• Raise presser foot.
• Loosen presser foot screw

and remove the foot, guiding

it to the right.

To Replace One-piece Feet

• Hook one-piece foot around the presser bar and tighten

presser-foot screw.

Note:

Insert the edge of a coin in the slot of the presser-foot

screw to loosen it and to tighten it securely.

Changing Needle Plates

Note:

Remove bobbin if it contains thread in order to prevent

thread being caught when plate is replaced.

• Raise needle and take-up lever to highest position by

turning the hand wheel

toward you.

Raise presser foot.

• Open slide plate. Press down on front edge of needle plate

and lift up and out.

• Position new plate over pins and release. Plate is drawn

into position by magnets.

® Close slide plate.

Caution: The straight stitch foot and zipper foot must oniy be
used with the straight stitch needie píate. Needie breakage
can occur if the straight stitch foot or zipper foot is used with
any other needie piate.

Attaching Snap-on Feed Cover

• Raise needle and take-up lever to highest position by

turning hand wheel

toward you.

• Raise presser foot.
• Slide snap-on feed cover away from you, as illustrated over

needle plate until points

and

are positioned directly

over holes in needle plate. Then snap down.

To remove, open slide plate then simply lift up front edge of
feed cover.

Attaching the Seam Guide

Place screw in the right hand hole to the right of the slide
plate; line up straight edge of guide with the needle plate
guideline for desired seam width, and tighten screw.
