Object Information Query
It is possible to query any type of data that can be viewed in Map Manager. Using the pointer tool, select by
clicking on the area of the view you want to obtain information about. The area selected changes to a fluorescent
green color and an “Object Information” dialog box appears on the left hand side of the Map Manager window.
The “Object Information” dialog box displays a variety of information about the object selected, such as position
and name. If the selected object is an application Record File (.RCD) you can query the individual polygons and
obtain information. (Figure 5) shows an information query on a Fieldware “as applied” map sprayed swath object.
(Figure 6) shows a close up of the “Object Information” dialog box for the sprayed swath query. If the area you
select has several objects layered one on top of the other, the “Object Information” dialog box displays the number
of objects selected as “Objects Found” and allows you to select and view information for each object.

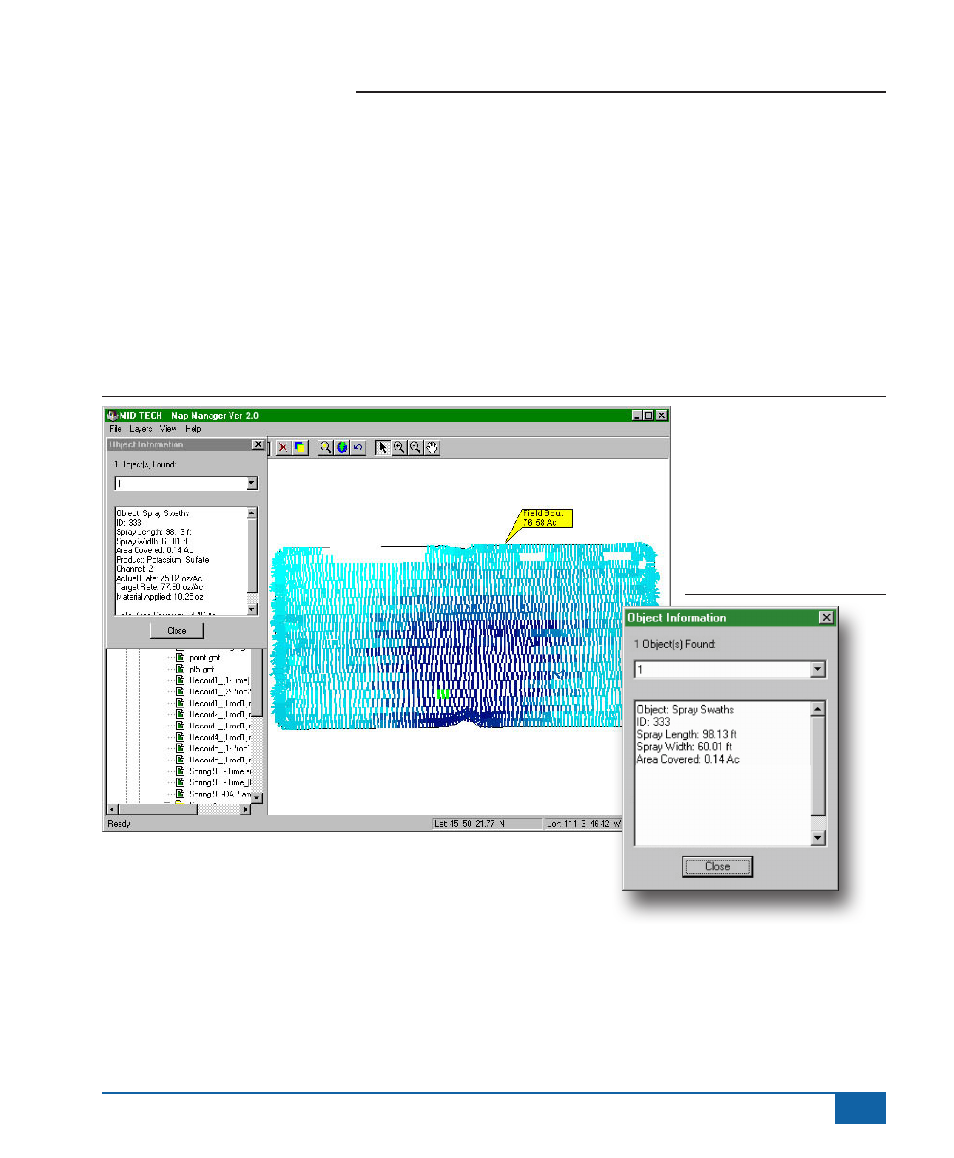

Figure 5: Object Information Query Feature
Figure 6: Object Information
Dialog
