41
Fieldware
®
Tools
98-05048 R3

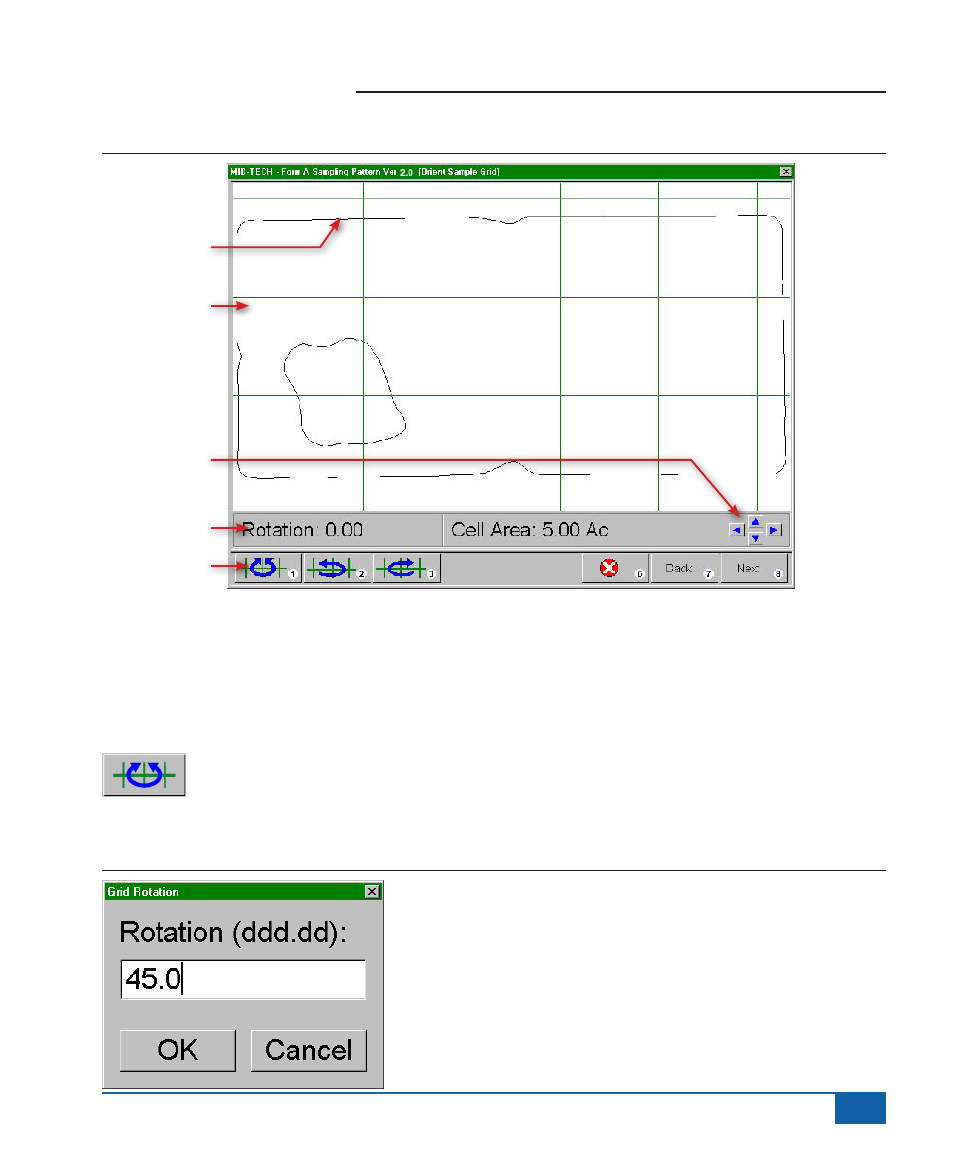

Figure 48: The Orient Sample Grid Page
Sampling Grid
Background data
of field boundary
Grid shift buttons
Grid rotation
buttons
Rotation angle
Rotating the Grid
The sample grid can be rotated by either of two methods. The first method is to enter the desired rotation angle
and the second method is to “spin” the grid in a left or right direction to the desired rotation angle. The point of
rotation for the grid is located at the center of the background data set.
Rotating the grid by entering a rotation angle
To rotate the grid by entering a rotation angle, press the button shown to the left. Once pressed, a
“Rotation Angle” dialog box appears. Enter the desired angle and press Enter. The grid rotates in a
clockwise direction from North, or straight up the page. To reset the grid, enter a rotation angle of 0.
(Figure 49) shows the “Grid Rotation” dialog box.
Figure 49: The Grid Rotation Dialog Box.
