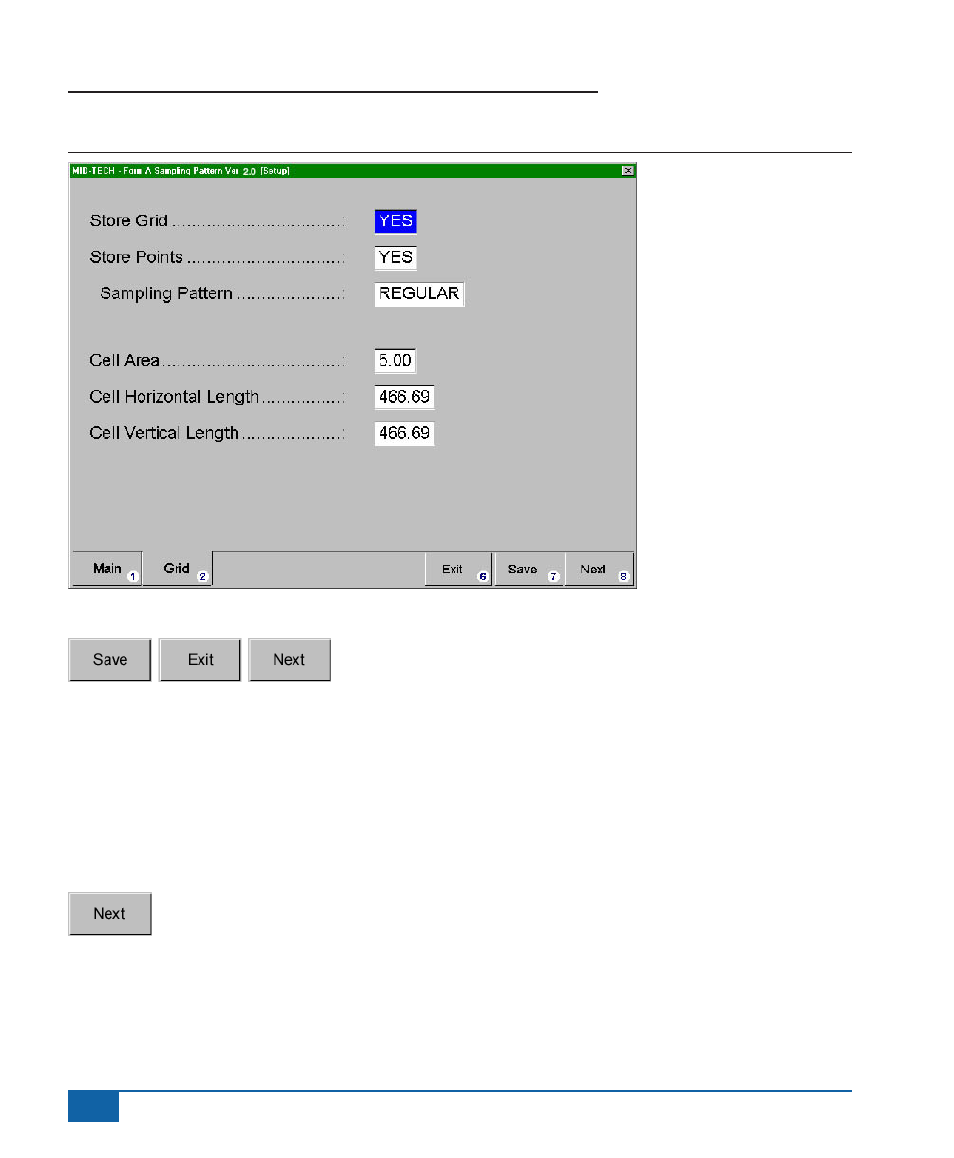

Figure 47: The Grid Setup Page
Completing the Setup Process
Once all of the appropriate menu fields have been entered or selected, the
next step is to save these entries. To save all of the setup menu entries
press the SAVE button at the bottom of the setup menu page. When SAVE
is pressed, all of the menu items are stored in the Setup file found in the Main Setup page. If you need to exit the
program process at anytime or you want to resume generating a sample pattern with the same menu items
selected, you may select the appropriate existing Setup file name and all of the menu items are filled in with the
appropriate data.
At this point you may exit the Setup process by pressing the EXIT button or you may go to the Sample Grid
Placement page by pressing the NEXT button.
Orienting the Sample Grid
Once the Setup menu pages have been properly entered, then next step is to orient the sample grid
over the background data. To begin this step press the NEXT button at the bottom of the Setup
menu Page.
Pressing NEXT brings up the Orient Sample Grid page which should show the background file with a sample grid
placed over the top, (Figure 48). This page allows you to rotate and shift the sample grid prior to positioning the
sample points within the sample grid.
