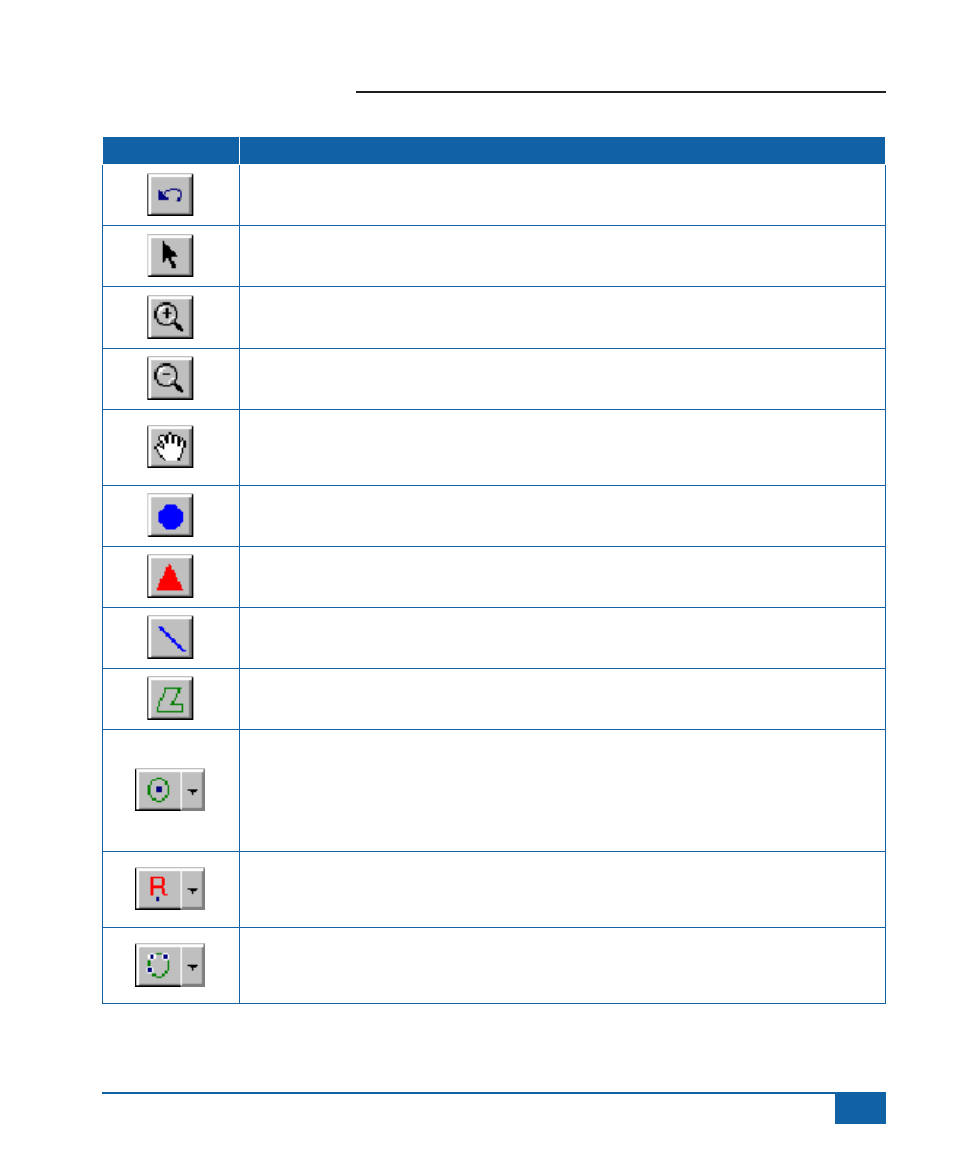

Button Description
Undo Zoom - returns to the previous zoom state.
Selection Arrow - activates the selection arrow (pointer).
Zoom In - enlarges (magnifies) the map view. Two modes, drag box and point and click.
Zoom Out - increases area displayed in the map view. Two modes; drag box and point and
click.
Pan - select this button and then place hand in map view and hold down left mouse button.
Moving the hand with left mouse button depressed moves the contents of the map view in a
panning fashion.
Point Object - select this button and left click in the map view to place a point object in the
view.
Hazard Object - select this button and left click in the map view to place a hazard object in
the view. In real time applications the user is notified when approaching a hazard.
Polyline Object - select and draw a polyline in the map view. Double click the left mouse
button to stop drawing.
Polygon Object - select and draw a polygon object in the map view. Double click the left
mouse button to close and stop drawing the polygon.
Circle Tool (Drag Option) - select this and draw a circle by pressing and holding down the
left mouse button. Drag the mouse with left button depressed to create the desired radius,
release left mouse button to create circle object. Select and hold down left mouse button on
the circle tool and two other circle drawing options (Radius and 3-Point) appears in the drop
down tool.
Circle Tool (Radius Option) - select and click left mouse button at center location of desired
circle in the map view. A small Radius dialog box appears. Enter the desired circle radius
and click OK.
Circle Tool (3-Point Option) - select and click left mouse button on three different locations
you want the circle perimeter to intersect. Once the third point is selected, the circle is
drawn.
