positions points in a random fashion across a gridded field boundary ensuring that a point falls within each cell.

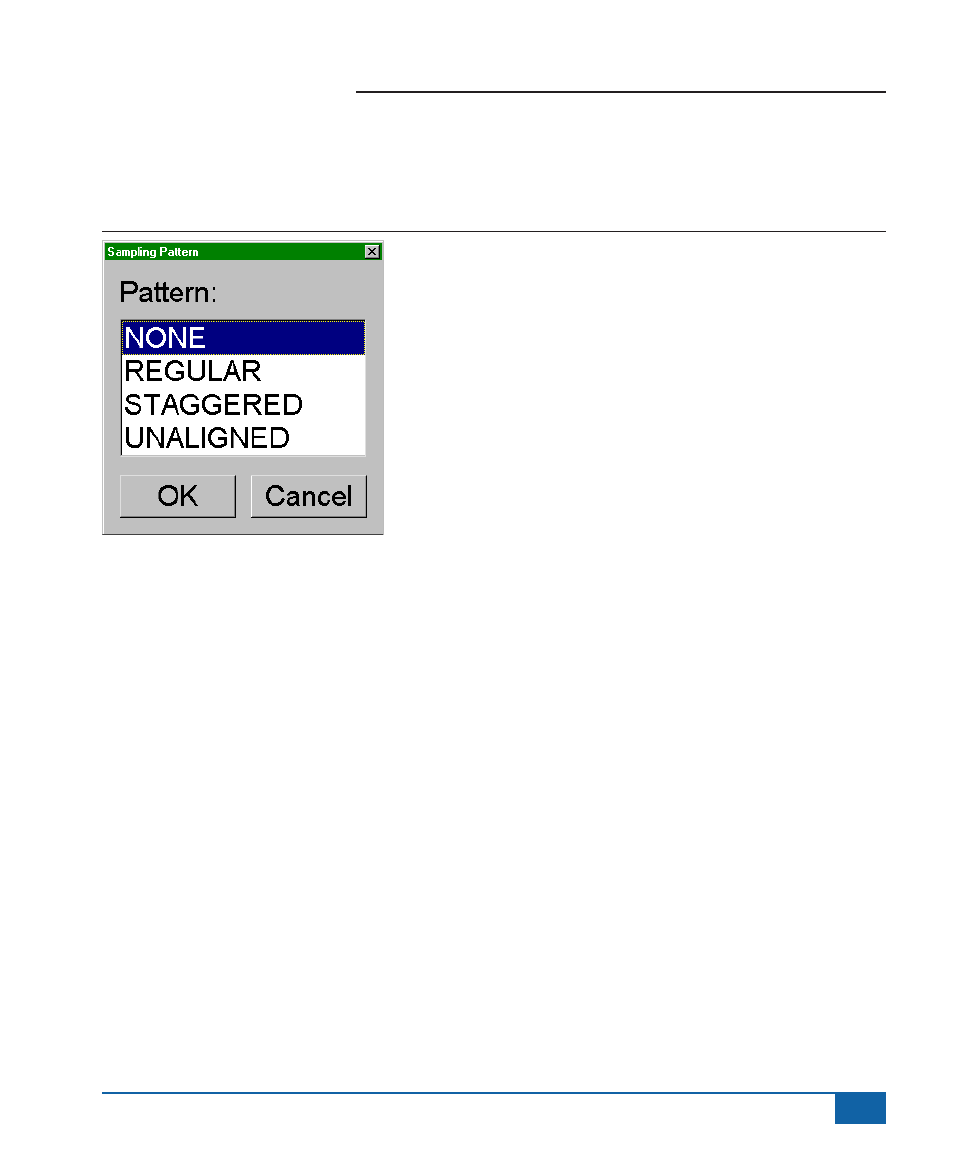

(Figure 46) shows the “Sampling Pattern” selection box. This menu field is only active if the Store Points menu
field is set to YES. Notice the pattern selected in (Figure 47) is Regular.
Figure 46: Sample Pattern Selection Box.
Cell Area Menu Field
The Cell Area menu field allows you to enter the size of a sample grid cell. The cell area unit is based on the
System Unit of Measure selected in the System Setup menu. If the System Unit of Measure is ENGLISH (US
English), then the cell area unit is Acres. If the System Unit of Measure is METRIC, then the cell area unit is
Hectares. In the example shown in, the System Unit of Measure is ENGLISH, and therefore the Cell Area value is
5.00 Acres. As you enter a cell area value you will notice that the two additional Cell menu fields (Cell Horizontal
and Vertical Length) adjusts accordingly.
NOTE: Grid cells created using this menu field generate square sample grids only. To create non-square grid
cells, use the following two menu fields.
Cell Horizontal and Vertical Length Menu Fields
These two menu fields allow you to create non-square grid cells by entering the horizontal and vertical lengths.
The unit of length is based on the System Unit of Measure set in the Program Launcher System menu page. If
ENGLISH is selected, then the lengths are in Feet, and if METRIC is selected then the length unit is Meters.
