Instruction Manual 4
Component Description
1 Power Jack The power adapter connection
2 PC/KVM Port
The connection for the cable that links the SV1107IPEXT
to your computer
3
USB Console
Port
This is the connection for the local console cable (USB
keyboard, monitor, and USB mouse). Each port is
color coded and marked with an appropriate icon for
identification*
4
Virtual Media
Port
The connection for the virtual media cable that connects
the SV1107IPEXT to a USB port on your computer -
allowing file transfers to occur
5 LAN Port The network Ethernet cable connection

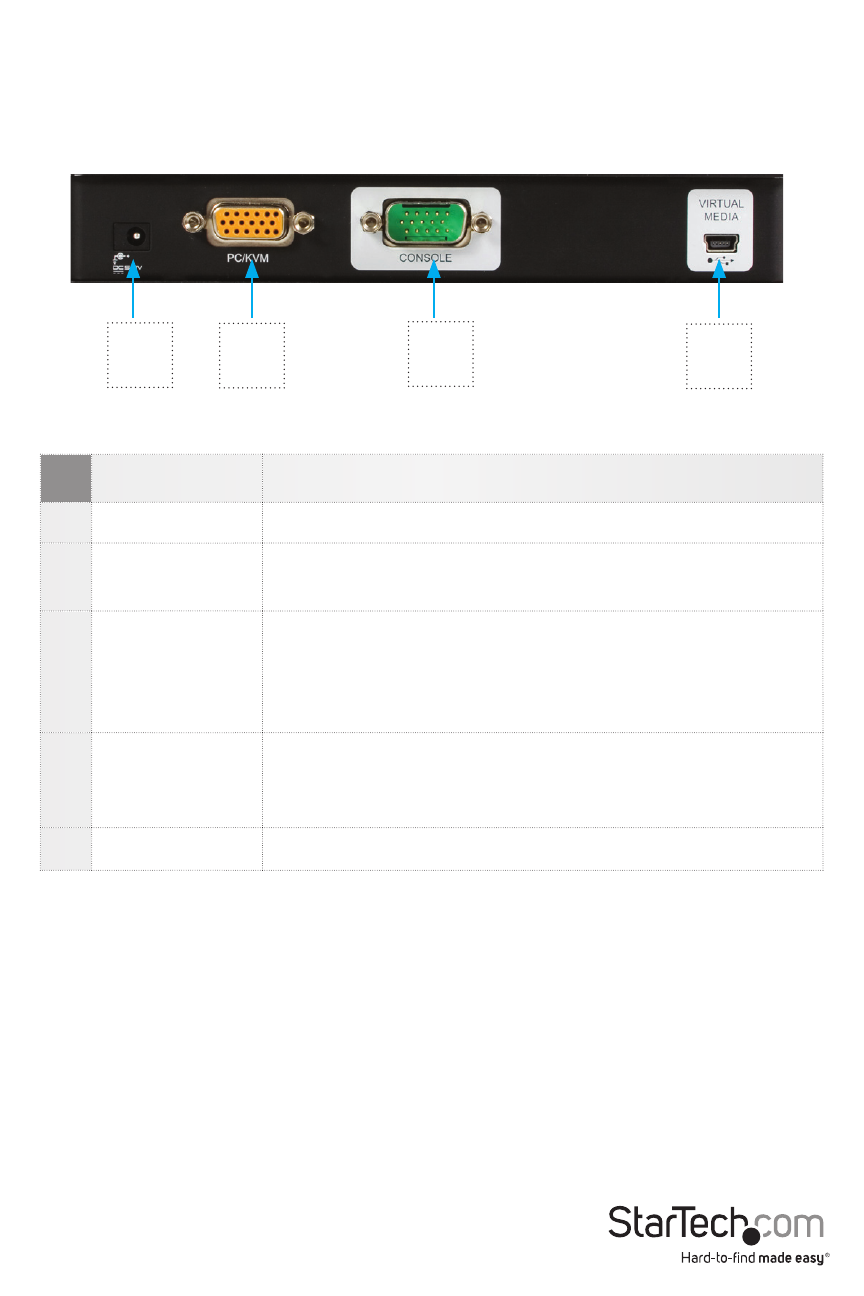

Hardware Guide - Cont’d
1 2 3 4
Please Note: if you are using a wireless keyboard/mouse set, connect the receiver to the
Keyboard port of the KVM cable
