Instruction Manual 20
User Station Filtering – IP Addresses
To add an IP Address filter:

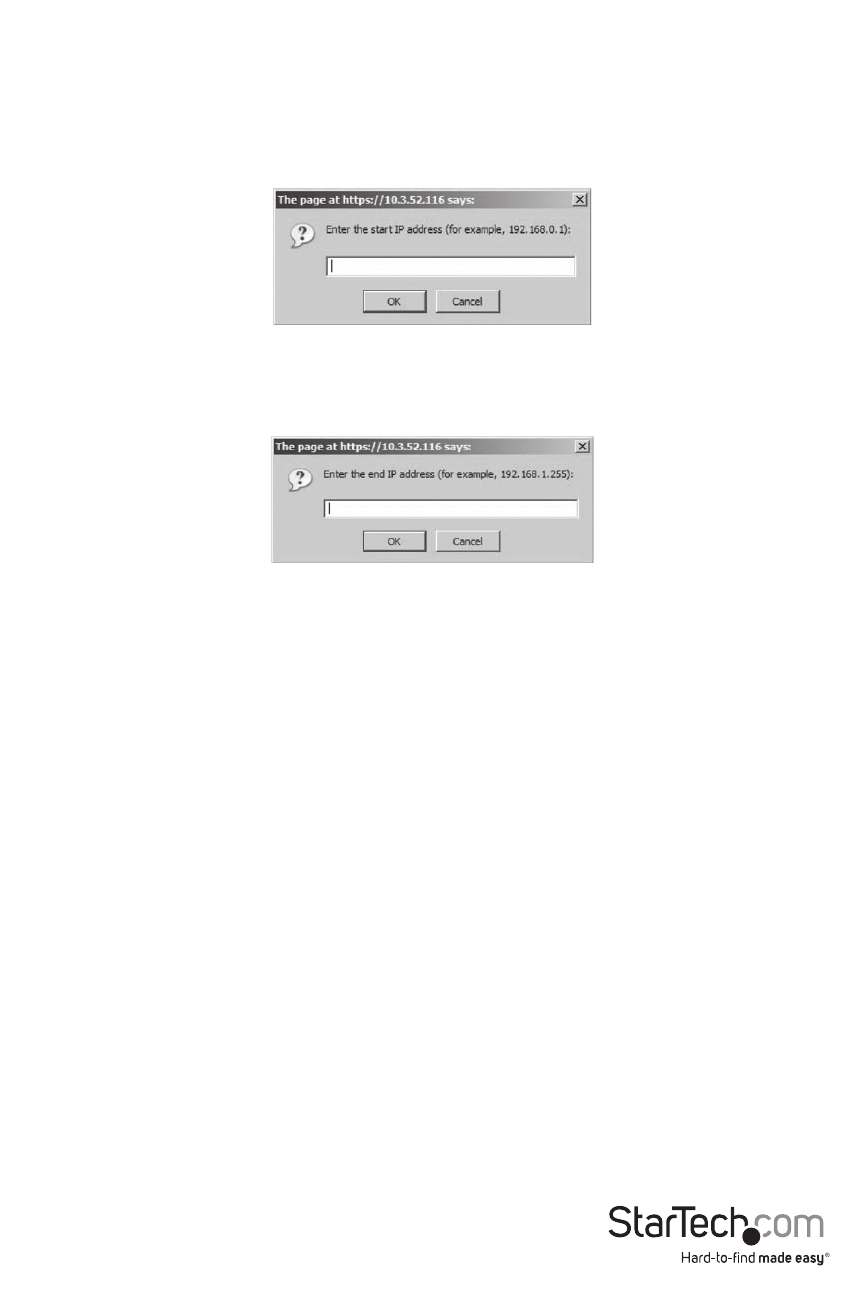

1. Click Add. A dialog box similar to the one below appears:
2. Specify the filter address in the dialog box, then click OK. A second
dialog box, similar to the one below, appears:
3. To filter a single IP address, key in the same address as the start IP Address. To filter a
continuous range of addresses, key in the end number of the range.
4. After filling in the address, click OK.
5. Repeat these steps for any additional IP addresses you wish to filter.
To delete a filter, select it and click Remove.
To modify a filter, select it and click Edit. The Edit dialog box is similar to the Add dialog box.
When it appears, simply delete the old address and replace it with the new one.
