Hardware Guide

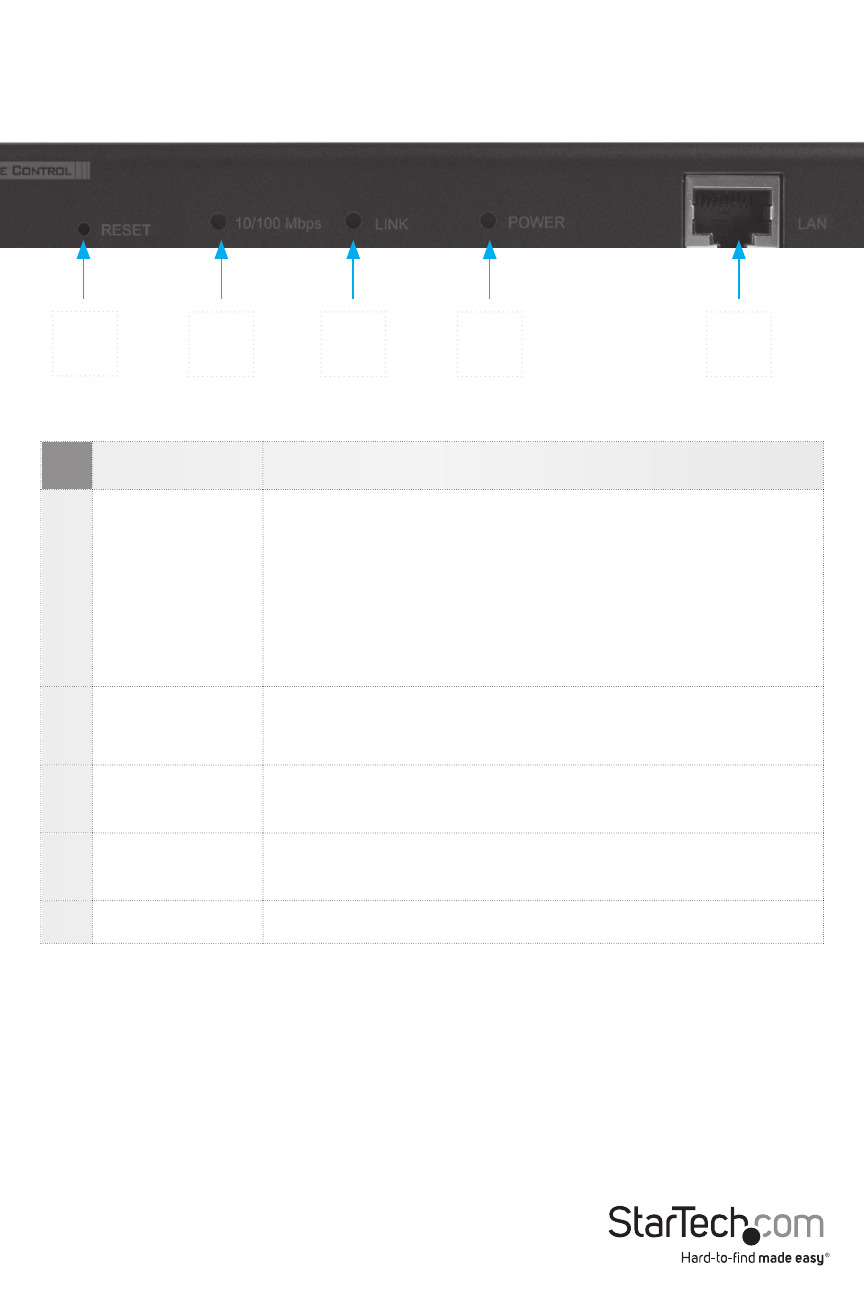

Component Description
1 Reset Switch
System Reset: Pressing and holding this switch in for
more that three seconds performs a system reset
Restore Factory Default Settings: Power off the
SV1107IPEXT, then press and hold the reset switch for at
least 3 seconds while reconnecting power
Please Note: This will not reset users or passwords
2
10/100 Mbps
LED
ORANGE: Indicates 10 Mbps connection
GREEN: Indicates a 100 Mbps connection
3 Link LED
Flashes GREEN to indicate that a Client program is
accessing the device.
4 Power LED
ORANGE: SV1107IPEXT unit is powered and ready to
operate.
5 LAN Port The network Ethernet cable connection
1 2 3 4 5
