Instruction Manual 33
The Message Board
The SV1107IPEXT supports two user logins, (only one user has control at a given time), which
can possibly create access conflicts. To alleviate this problem, a message board feature has been
provided, allowing users to communicate with one other.

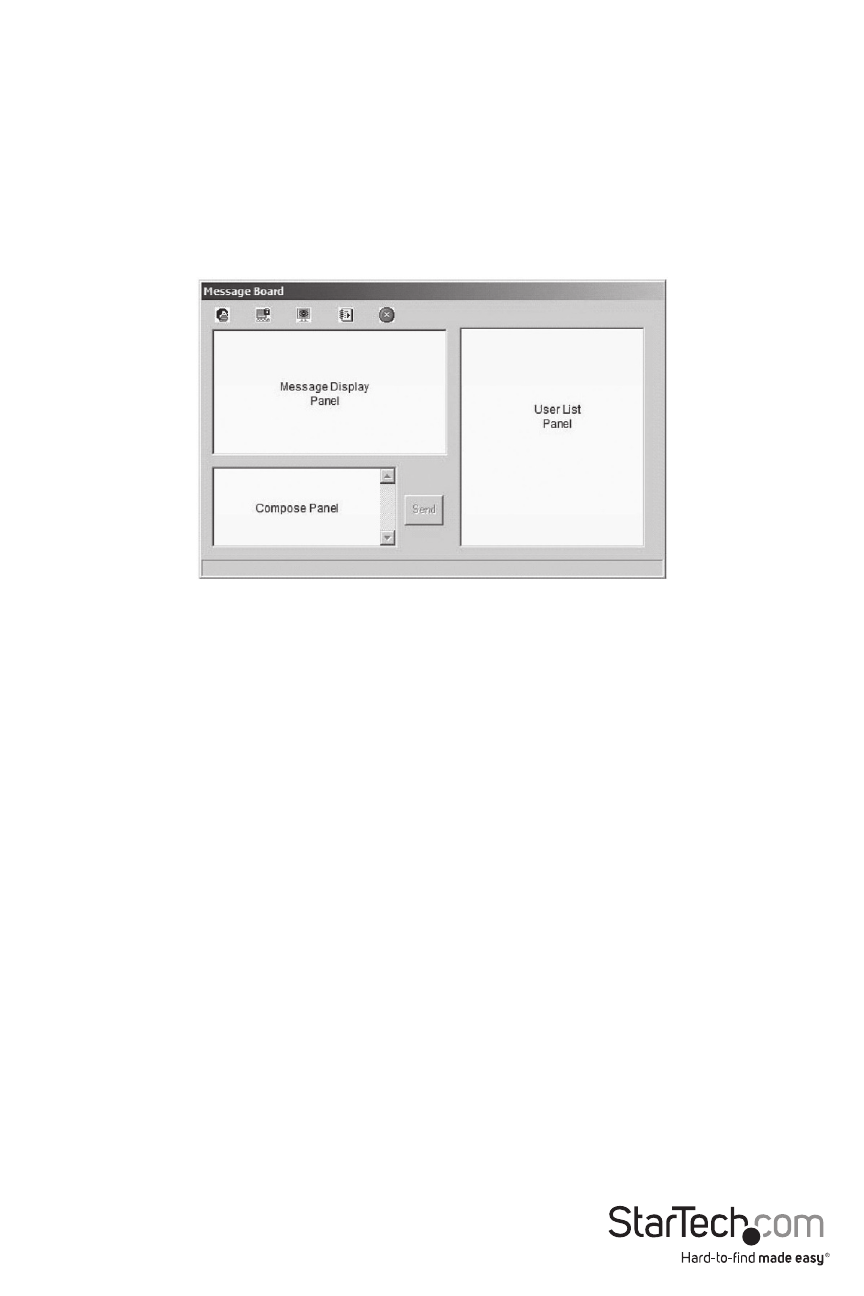

Message board operation resembles that of an Internet chat program. When you click the
Message Board icon on the Windows Client tool bar, a screen similar to the one shown here will
appear:
Compose Panel
Key in the messages that you want to post to the board in this panel. Click Send, or press [Enter]
to post the message to the board.
Message Display Panel
Messages that users post to the board, as well as system messages, display in this panel. If you
disable Chat, however, messages that get posted to the board will not appear.
