Termination Options
9/24/01 10-3

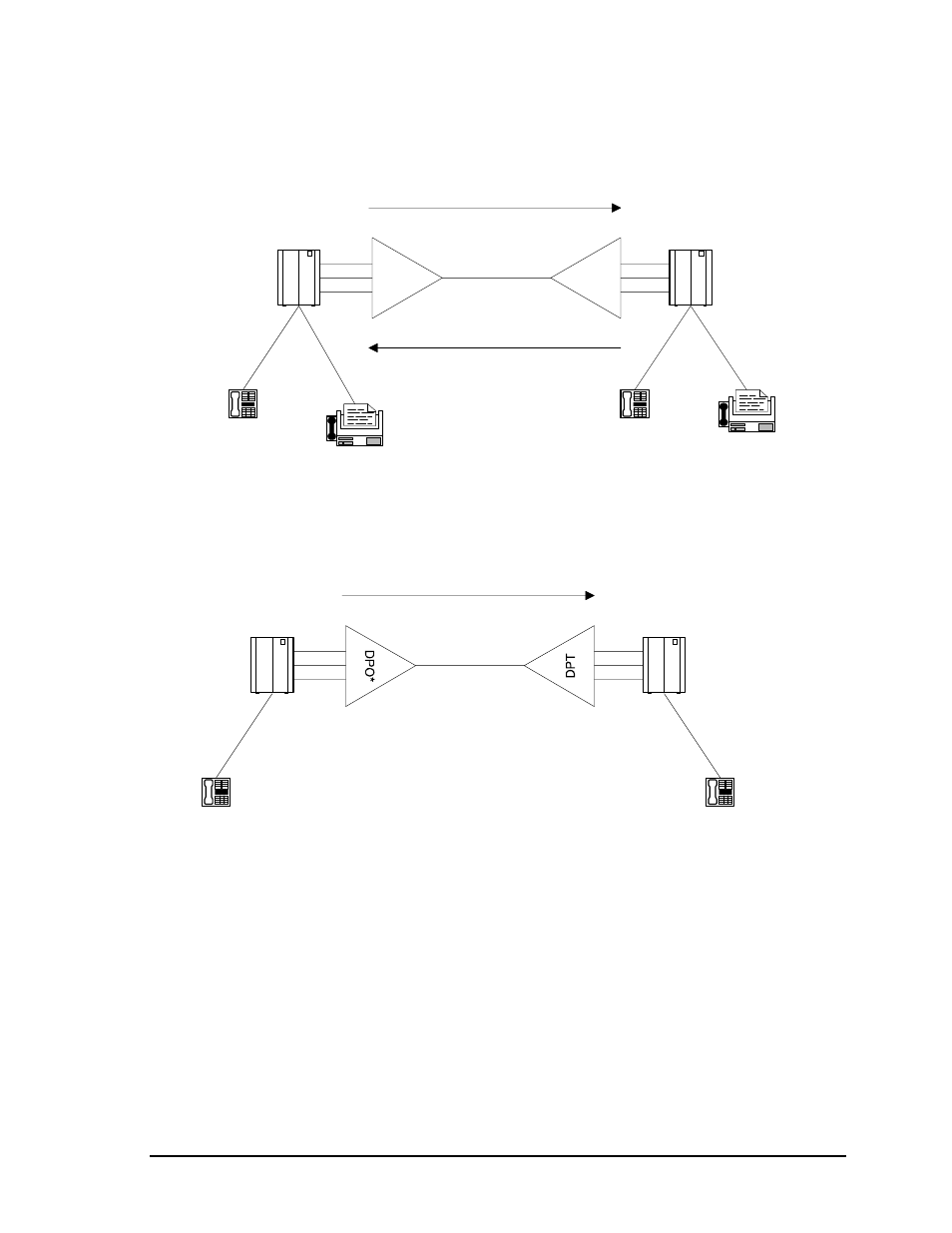

Figure 10-1: FXO Operation
________________________________________________________________________________
Figure 10-2: DPT Operation
10.3.2 Dial Pulse Termination (DPT)
In DPT mode, the FXO/DPT offers near end termination for one-way Direct Inward Dial (DID). Two-
way DID is provided by CAC’s 4 wire E&M interface. The DPT card interprets T1 signaling bits to:
• provide incoming seizure
• act as a current sink for a PBX -48V battery source
• establish an audio path
Telephone Telephone
Fax
Fax
FX
O
FX
S
PBX CO
Incoming
Outgoing
T1
Calling Party Called Party's
Direct Extension
PBX CO
Direct Inward Dialing (DID)
T1
*Battery Reversal FXS/DPO 12-
Channel Analog Card
