Form P-ADF, P/N 270068 R1, Page 6
Blower Motors, Contactor, and Starters
CODE 45 - Blower Motor
Motors in the table below that do not have a CODE 46 contactor listed do not have
internal overload protection and MUST be used with the CODE 47 motor starter and
starter overload. If a CODE 46 contactor is listed, motor may be used with either the
contactor or an optional starter and overload.
CODE 46 - Motor Contactor (Option AN2), P/N 216386
CODES 47A & 47B - Replacement Starter Contactor (with 24 volt coil)
used beginning 9/03 (Serial No. Code BCI) and Overloads (Option AN10)
When ordering a replacement IEC starter contactor or overload, check the
manufacturer's number on both parts. If the numbers are different than that listed, both
components must be replaced. Replacement coils (CODE 51) are on page 10.
NOTE: For starter contactor with line voltage coil, see CODE 50 on page 9.

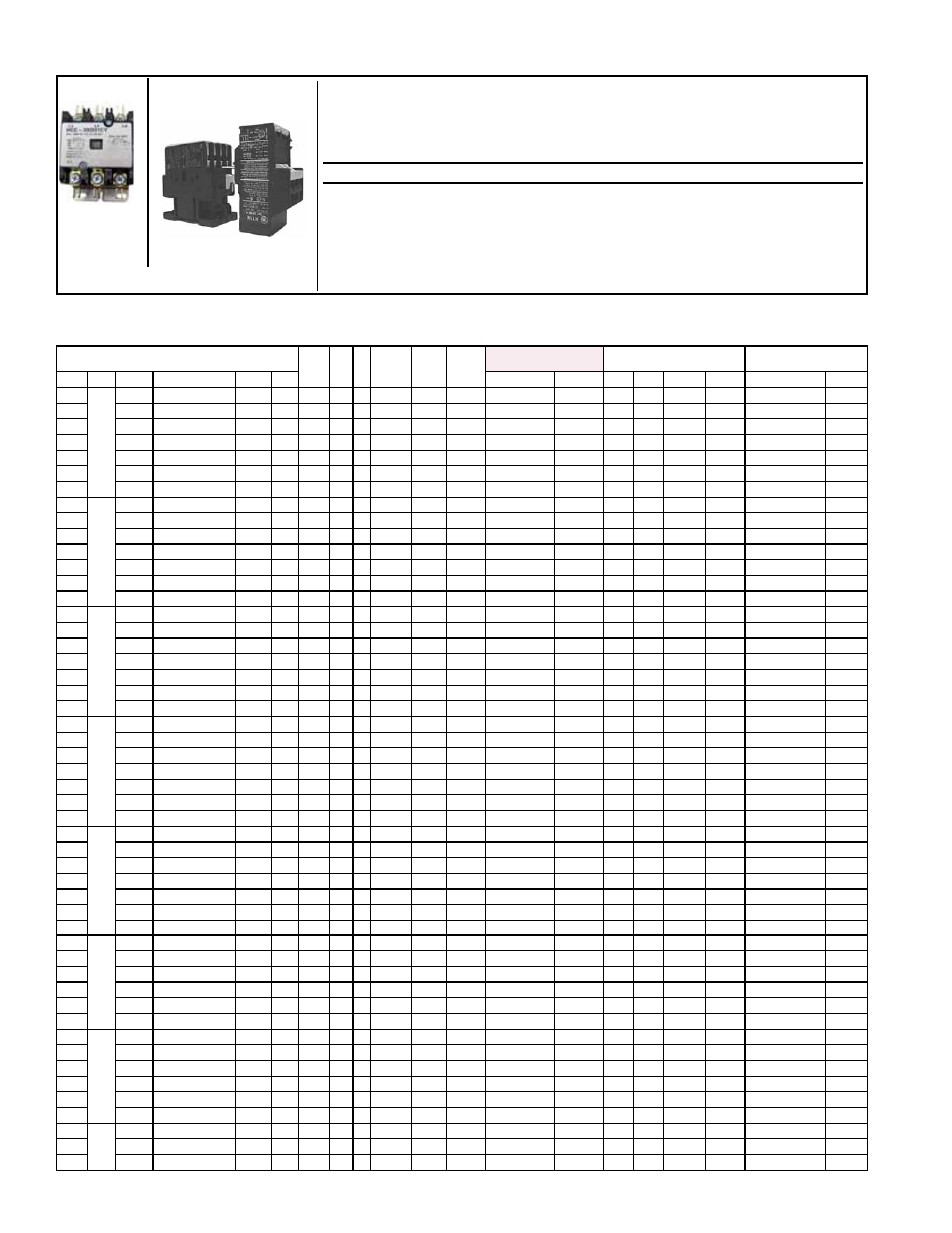

CODE 46 CODES 47A&B and 50 -
Starter (Option AN10)
Starter
Overload
Motor
Contactor
(Option AN2)
(Located in the electrical compartment.)
CODE 45 - Motor
Shaft volt ph Service
Factor
Power
Factor
EFF.
CODE 47A - Starter
Contactor w/24 volt coil
CODE 47B - Starter Overload
CODE 46 - Contactor
(Option AN2)
Type hp P/N Mfr No. Frame fla Mfr No. P/N min max GE # P/N Mfr No. P/N
Open
1/2
102627 AO-BF2054 56Z 8.8 5/8" 120 1 1.2 CL00A310T-1 151275 8.0 12.0 RTA1-N 151193 HCC-3XQOICY 216386
Open 102627 AO-BF2054 56Z 5.1 5/8" 208 1 1.2 CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 HCC-3XQOICY 216386
Open 102627 AO-BF2054 56Z 4.4 5/8" 240 1 1.2 CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 HCC-3XQOICY 216386
Open 159183 AO-H880 LA56 2.5 5/8" 208 3 1.3 CL00A310T-1 151275 1.8 2.7 RTA1-J 151189 HCC-3XQOICY 216386
Open 159183 AO-H880 LA56 3.0 5/8" 240 3 1.3 CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 159183 AO-H880 LA56 1.5 5/8" 480 3 1.3 CL00A310T-1 151275 1.3 1.9 RTA1-H 151188 HCC-3XQOICY 216386
Open 202089 AOS - H991 H56 0.9 5/8" 575 3 1.3 CL00A310T-1 151275 0.7 1.1 RTA1-F 151186 ============ ======
Open
3/4
93548 AO-312P629 B56 11.0 5/8" 120 1 1.3 CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 HCC-3XQOICY 216386
Open 93548 AO-312P629 B56 6.3 5/8" 208 1 1.3 CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 93548 AO-312P629 B56 5.5 5/8" 240 1 1.3 CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 HCC-3XQOICY 216386
Open 36951 AO-312P696 D56 2.9 5/8" 208 3 1.3 CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 36951 AO-312P696 D56 2.6 5/8" 240 3 1.3 CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 36951 AO-312P696 D56 1.3 5/8" 480 3 1.3 CL00A310T-1 151275 1.0 1.5 RTA1-G 151187 HCC-3XQOICY 216386
Open 202090 AOS - H992 H56 1.0 5/8" 575 3 1.3 CL00A310T-1 151275 0.7 1.1 RTA1-F 151186 ============ ======
Open
1
13685 AO-C523 H56 13.0 5/8" 120 1 1.3 CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 HCC-3XQOICY 216386
Open 13685 AO-C523 H56 7.5 5/8" 208 1 1.3 CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 13685 AO-C523 H56 6.5 5/8" 240 1 1.3 CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 36580 AO-H882 F56 3.7 5/8" 208 3 1.2 79% CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 36580 AO-H882 F56 3.2 5/8" 240 3 1.2 79% CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 36580 AO-H882 F56 1.6 5/8" 480 3 1.2 79% CL00A310T-1 151275 1.3 1.9 RTA1-H 151188 HCC-3XQOICY 216386
Open 158175 AO-E1006 N143T 1.1 7/8" 575 3 1.2 82.5% CL00A310T-1 151275 1.0 1.5 RTA1-G 151187 ============ ======
Open
1.5
194202 AO-C621 56 15.0 5/8" 120 1 1.2 86.4 77.2% CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 HCC-3XQOICY 216386
Open 194202 AO-C621 56 7.8 5/8" 208 1 1.2 86.4 77.2% CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 194202 AO-C621 56 7.5 5/8" 240 1 1.2 86.4 77.2% CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 115859 AO-H884 UA56 5.6 5/8" 208 3 1.2 66.4 78.6% CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 HCC-3XQOICY 216386
Open 115859 AO-H884 UA56 5.0 5/8" 240 3 1.2 66.4 78.6% CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 HCC-3XQOICY 216386
Open 115859 AO-H884 UA56 2.8 5/8" 480 3 1.2 66.4 78.6% CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 158162 AO-E1007 R145T 1.6 7/8" 575 3 1.2 85.3 84.0% CL00A310T-1 151275 1.3 1.9 RTA1-H 151188 ============ ======
Open
2
202581 AO-RB1204A 56H 24.6 5/8" 120 1 CL04A310M-1 151279 21.0 26.0 RTA1-U 151198 HCC-3XQOICY 216386
Open 202581 AO-RB1204A 56H 12.3 5/8" 208 1 CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 HCC-3XQOICY 216386
Open 202581 AO-RB1204A 56H 12.3 5/8" 240 1 CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 HCC-3XQOICY 216386
Open 159327 AO-H886 56HZ 7.0 7/8" 208 3 1.2 67 79% CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 159327 AO-H886 56HZ 6.6 7/8" 240 3 1.2 67 79% CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 159327 AO-H886 56HZ 3.5 7/8" 480 3 1.2 67 79% CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 158176 AO-E1008 P145T 2.1 7/8" 575 3 1.2 86 84.0% CL00A310T-1 151275 1.8 2.7 RTA1-J 151189 ============ ======
Open
3
111560 AO-B735 L56 13.7 5/8" 208 1 1.2 CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 ============ ======
Open 111560 AO-B735 L56 12.4 5/8" 230 1 1.2 CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 ============ ======
Open 159185 AO-H845 P56HZ 9.0 7/8" 208 3 1.2 CL00A310T-1 151275 8.0 12.0 RTA1-N 151193 HCC-3XQOICY 216386
Open 159185 AO-H845 P56HZ 8.6 7/8" 240 3 1.2 CL00A310T-1 151275 8.0 12.0 RTA1-N 151193 HCC-3XQOICY 216386
Open 159185 AO-H845 P56HZ 4.3 7/8" 480 3 1.2 CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 HCC-3XQOICY 216386
Open 120019 AO-H954 N56HZ 3.6 7/8" 575 3 1.2 80.3 83.8% CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 ============ ======
Open
5
111562 AO-V211 L184T 28.3 1-1/8" 208 1 CL04A310M-1 151279 25.0 32.0 RTA1-V 151199 ============ ======
Open 111562 AO-V211 L184T 25.6 1-1/8" 240 1 CL04A310M-1 151279 25.0 32.0 RTA1-V 151199 ============ ======
Open 113371 AO-196033 Y56HZ 13.4 7/8" 208 3 1.2 87.2 85% CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 ============ ======
Open 113371 AO-196033 Y56HZ 13.2 7/8" 240 3 1.2 87.2 85% CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 ============ ======
Open 113371 AO-196033 Y56HZ 6.6 7/8" 480 3 1.2 87.2 85% CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 ============ ======
Open 120020 AO-H956 Y56HZ 5.4 7/8" 575 3 1.2 85.9 85.3% CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 ============ ======
Open
7.5
105828 AO-V305 S215T 35.4 1-3/8" 208 1 CL06A311M-1 203687 30.0 43.0 RTA2-E 151206 ============ ======
Open 105828 AO-V305 S215T 32.0 1-3/8" 230 1 CL06A311M-1 203687 30.0 43.0 RTA2-E 151206 ============ ======
Open 105855 AO-E300 213T 22.5 1-3/8" 208 3 CL04A310M-1 151279 21.0 26.0 RTA1-U 151198 ============ ======
Starter
Contactor
Blower Motors, Contactor, and Starters with 24 Volt Coil (units mfgd beginning 9/03; Serial No. Date
Code BCI)
