Reznor ADFH Parts Manuals - Manual (Page 13)

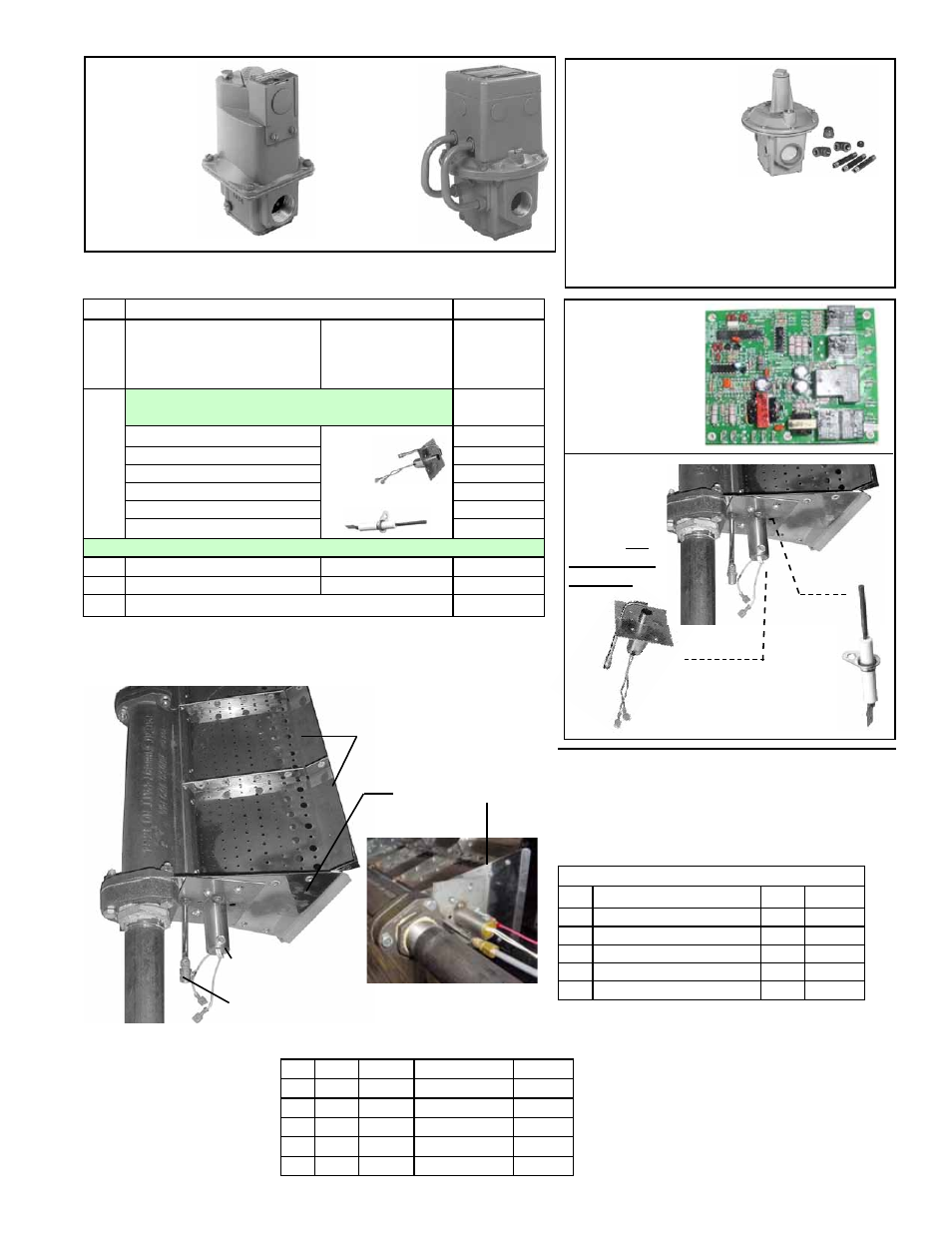

Form P-ADF, P/N 270068 R1, Page 13
CODE 98 -
Gas Control
Regulators
P/N 87001,
1", Maxitrol
M611 R-88
P/N 89351,
1-1/4",
Maxitrol
MR212D
P/N 91071,
2", Maxitrol
MR212E
CODE 99 - Gas
Regulator Kit,
outlet pressure
range 1 - 12"
(maximum 5 psi)
P/N 124258 (Same as Option CZ1), Kit
includes Maxitrol 1"x1" NPT regulator
P/N 124259 (Same as Option CZ2), Kit
includes Maxitrol 1-1/2"x1-1/2" NPT
regulator
P/N 123916,
3/4", Maxitrol
M611R
Ignition System - Hot Surface Ignition
CODE Descriptions P/N
100
Hot Surface Ignition Module,
Synetek IH11040B-C, single flame
rod - Serial No. Ignition System
Code 82
Located in the
electrical control
compartment
204376
(replaces
157953, Serial
No. Code 72)
101
Pilot Assembly for Hot Surface Ignition prior to ADF
Series 3 (prior to 9/03) including:
120048
Pilot 122840
Flame Sensor, J/C #Y75MK-1D 134706
Screw, #8-1/2" long 38529
Pilot bushing 121730
Hex head cap screw, #10-32x3/8" 90167
Hot Surface Ignitor, Norton #401E 121865
Pilot, Sensor, and Ignitor for Model ADF Series 3
102 Pilot for ADF Series 3 127910
103 Hot Surface Ignitor, Norton #401E 121865
104 Flame Sensor, J/C #Y75MK-1D 134706
Flame Sensor
Pilot and
Ignitor
CODE 100 -
P/N 204376, Hot
Surface Ignition
Module, Synetek
IH11040B-C
Location only
(not shown)
CODE
102 CODE
103
CODE
104
Pilot, Hot
Surface
Ignitor,
and Flame
Sensor on
ADF Series
3 Burner
Burners (for units manufactured beginning 9/03)
Beginning 9/03 (Serial No. Date Code BCI)
Model Series ADF uses Midco HMA-700
Series Burners. The Burner P/N includes
the burner, the mixing plates, and the end
plate.
CODE 105 - Model ADF Series BURNER
Opt Length & Configuration MBH P/N
BL1 6" Burner - Linear 250 203312
BL2 12" Burner - Linear 500 203313
BL3 18" Burner - Linear 750 203314
BL4 24" Burner - Linear 1,000 203315
BL5 30" Burner - Linear 1,250 203316
Burner
Mixing Plates
Ignitor
Gas
Supply Pilot Assembly
Burner End Plate
Replacement Burners
Replacement Burners for units manufactured prior to 9/03 (see illustration, next page)
Opt MBH Length Configuration P/N
BL1 250 6" Linear 123405
BL2 500 12" Linear 123665
BL3 750 18" Linear 123684
BL4 1000 24" Linear 123696
BL5 1250 30" Linear 123700
CODE 106 -
Replacement Burner
Assemblies for Maxon
Burners (includes
burner, end plates, and
mixing plates)
