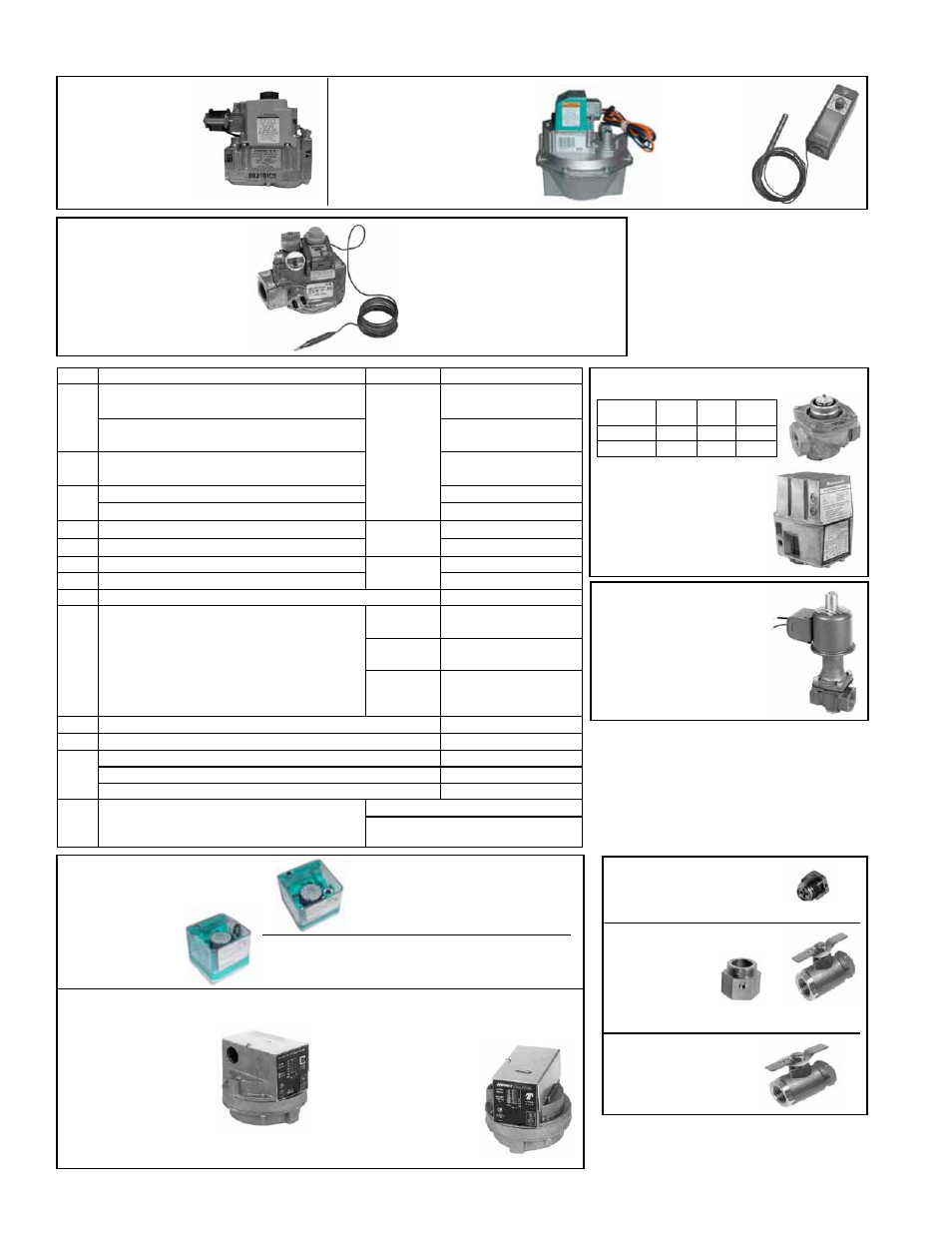

Form P-ADF, P/N 270068 R1, Page 12
Components
in Gas
Control
Option AG3
beginning
9/03
CODE 83 -
P/N 203866,
2-Stage
Gas Valve
CODE 84 -
P/N 41700,
2-Stage
Ductstat
CODE 85 - Mechanical
Modulation Valve
used prior to 9/03,
P/N 131455
P/N 131455 plus single-stage
valve P/N 89398 in series may
be used as a replacement for
previously used P/N 100321.
CODE 82 -
2-Stage Valve
used prior to
9/03, 1/2", P/N
177396 or 3/4",
P/N 177397
CODE Description When used P/N
88A
Valve only, 1" fluid power, Honeywell
#V5055A1004
Used prior
to Series 3
(9/03)
86992
Valve only, 1-1/4" fluid power, Honeywell
#V5055A1012
89356
88B Actuator only, 120V, fluid operated, Honeywell
#V4055A1007
86993
89
Vent Valve, 3/4" G/C #S262 86996
Vent Valve, 1" G/C #S262A02N3FJ5 91084
90 Low Gas Pressure Switch, automatic Beginning
9/03
204375
71 High Gas Pressure Switch, manual reset 204297
92 Low Gas Pressure Switch, Antunes #RLGP-A Prior to
Series 3
93849
93 High Gas Pressure Switch, Antunes #HGP-AMI 93850
94 Vent Limiter, Maxitrol #12A09 123481
95 Gas Valve, Watts B-6000-UL-TH, with ball
valve adapter
3/4"
122842, Valve; 120169,
Ball Valve Adapter
1"
159725, Valve; 110758,
Ball Valve Adapter
1-1/4"
159729, Valve; 110759,
Ball Valve Adapter
96 Pilot Gas Valve, 3/8", Jomar 7204 122843
97 Vent Valve, 3/4, 24V, N.O. (not illustrated) 124010
98
Gas Control Regulator, 3/4", Maxitrol M611R 123916
Gas Control Regulator, 1", Maxitrol M611 R-88 87001
Gas Control Regulator, 1-1/4", Maxitrol MR212D 89351
99 Gas Supply Regulator Kit, 5 psi
124258, 1"x1"NPT (Same as Opt CZ1)
124259, 1-1/2"x1-1/2"NPT
(Same as Option CZ2)
Gas Regulators, Valves, and Pressure Switches (cont'd)
CODE 88A (used with CODE 88B)
CODE 88B
Part of Serial No.
Valve codes J2, J3,
J4, K2 and K4
CODE 89 - Vent
Valve 3/4", P/N
86996, G/C #S262;
1", P/N 91084, G/C
S262A0N3FJ5
CODE 93 - High Gas
Pressure Switch,
P/N 93850, Manual
Reset, Settings -
125% - of normal
manifold gas
pressure as stated
on the rating plate
CODE 94 - Vent
Limiter for Pressure
Switches, P/N 123481
CODE 95 -
Valve and
Adapter
with Test
Port Valve Adapter
CODE 96 -
Pilot Gas Valve,
P/N 159720
Serial No.
Code
Size Gas P/N
J2, J3, J4 1" N or P 86992
K2 1-1/4" N or P 89356
CODE 92 - Low
Gas Pressure
Switch, P/N 93849,
Automatic Reset,
Settings - 50% of
minimum inlet gas
pressure as stated on the unit
rating plate
Gas Pressure Switches - prior to Series 3 (9/03)
CODE 90 - Low Gas
Pressure Switch (automatic),
#C6097A1053, P/N 204375
Gas Pressure Switches
- on units manufactured
beginning 9/03
CODE 91 - High Gas Pressure Switch
(manual reset), #C6097B1028, P/N 204297
(used prior to 9/03)
(used prior to 9/03)
