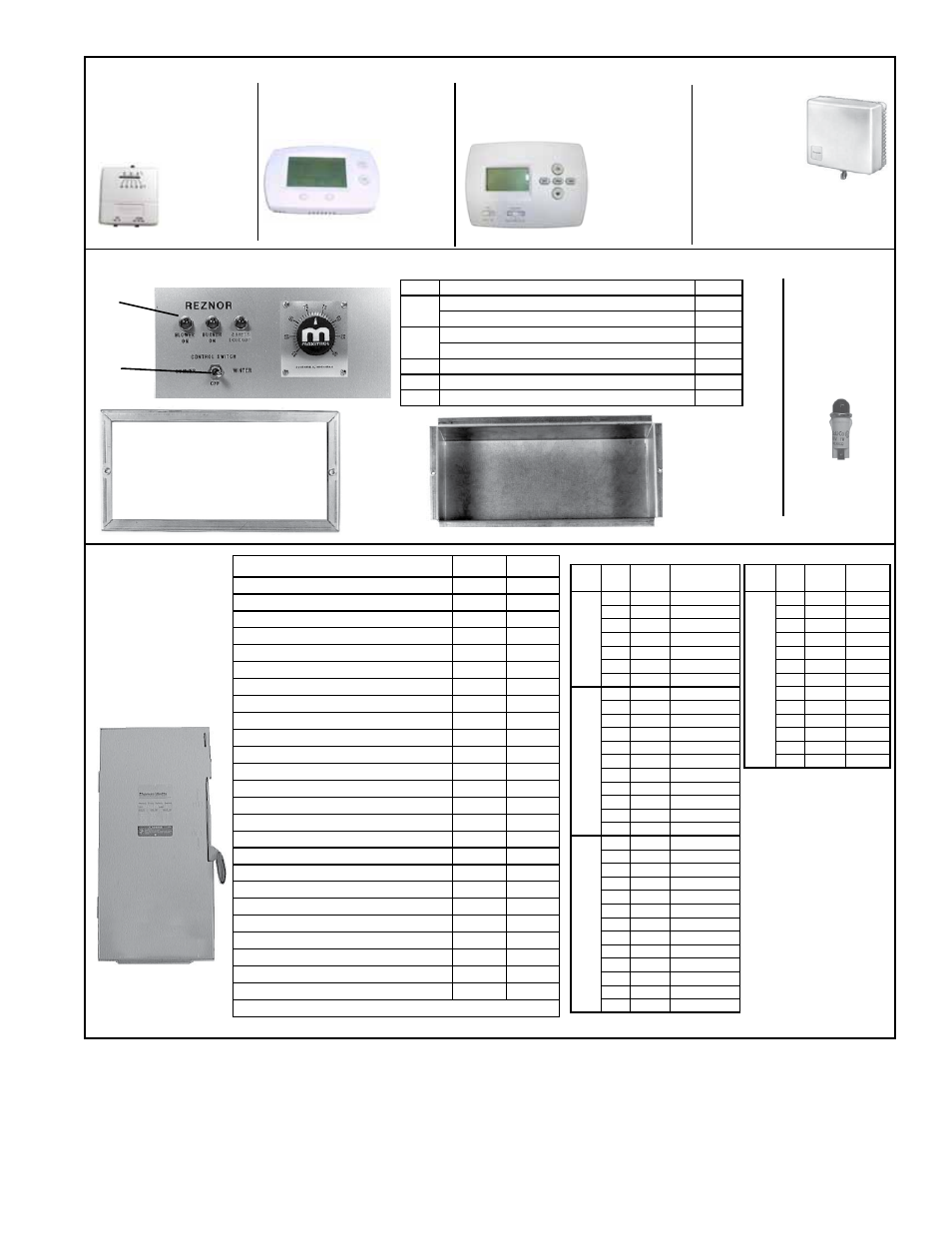

Form P-ADF, P/N 270068 R1, Page 5
Code 26 -
Thermostat
Guards
Code 25 - Thermostats (Wall mounted Option CL; or mounted on the console, Opt RCT, below)
1-Stg Heat/Cool, 24v
snap acting thermostat
(50-90°F) w/fan auto-on
& cool-off-heat switches
P/N 255350
(same
as CL1 &
RCT1)
2-Stg Heat/Cool, 24v digital
thermostat (40-90°F) with
fan auto-on function
P/N
220630
(same as
CL22 &
RCT2)
1-Stg Heat/Cool, 24v programmable
thermostat (45-88°F) with fan auto-
on and cool/off/heat.
P/N 220632
(same as
CL52)
P/N 257464,
6x5x2.5, same
as Option CM1
P/N 257463, 8.4x5.8x3, same
as Option CM1B
16
Disconnect
Switch
CODE 40 -
Disconnect
Switches (Same
as CP Options)
Description Option P/N
Indoor, 30 Amp, 240V, non-fusible CP1 161451
Indoor, 30 Amp, 240V, fusible CP2 161452
Indoor, 30 Amp, 600V, non-fusible CP3 161453
Indoor, 30 Amp, 600V, fusible CP4 161454
Raintight, 30 Amp, 240V, non-fusible CP5 161455
Raintight, 30 Amp, 240V, fusible CP6 161456
Raintight, 30 Amp, 600V, non-fusible CP7 161457
Raintight, 30 Amp, 600V, fusible CP8 161458
Raintight, 60 Amp, 240V, fusible CP17 161459
Raintight, 100 Amp, 240V, fusible CP18 161460
Raintight, 200 Amp, 240V, fusible CP19 166465
Raintight, 60 Amp, 600V, fusible CP20 161461
Indoor, 60 Amp, 240V, non-fusible CP21 161462
Indoor, 100 Amp, 240V, non-fusible CP22 161463
Indoor, 60 Amp, 600V, non-fusible CP23 161464
Indoor, 100 Amp, 600V, non-fusible CP24 164330
Indoor, 100 Amp, 600V, fusible CP25 161465
Indoor, 200 Amp, 240V, non-fusible CP26 166466
Indoor, 60 Amp, 240V, fusible CP27 161467
Indoor, 100 Amp, 240V, fusible CP28 161468
Indoor, 200 Amp, 240V, fusible CP29 166467
Raintight, 60 Amp, 240V, non-fusible CP30 161469
Raintight, 100 Amp, 240V, non-fusible CP31 162834
Raintight, 200 Amp, 240V, non-fusible CP32 166468
Indoor, 60 Amp, 600V, fusible CP33 162835
NOTE: Fuses are not included with disconnect switches.
CODE 37 -
Red Light
for Remote
Console,
P/N 101889
Remote Console (Note: Console height changed 10/01. Console parts listed are currently manufactured size.)
37
Code 35
CODE Description of Parts P/N
35 Remote Console Box 10-15/16"x7-1/4"x2-/8" 107010
Remote Console Box 15-15/16"x -1/4"x2-5/8" 107011
36 Mounting Ring for 10-15/16" long box
107014
Mounting Ring for 15-15/16" long box 107015
37 Light, Solico 3039-3-11-41610 101889
16 DPDT Switch, Summer/Off/Winter 101900
17 SPDT Switch, Spray/Dry 101901
Cross-Reference for Selecting Option CP Disconnect Switch
V/Ph HP Approx
FLA
CP V/Ph HP Approx
FLA
CP
115/1
1/4 9.3 1, 2, 5, 6
460/3
or
575/3
1/4 1.85 3, 4, 7, 8
1/3 9.7 1, 2, 5, 6 1/3 1.9 1, 2, 5, 6
1/2 13.0 1, 2, 5, 6 1/2 2.1 3, 4, 7, 8
3/4 15.2 1, 2, 5, 6 3/4 2.4 3, 4, 7, 8
1 17.2 1, 2, 5, 6 1 2.5 3, 4, 7, 8
1-1/2 19.2 1, 2, 5, 6 1-1/2 3.8 3, 4, 7, 8
2 24.6 1, 2, 5, 6 2 4.4 3, 4, 7, 8
208/1
or
230/1
1/4 4.7 1, 2, 5, 6 3 5.3 3, 4, 7, 8
1/3 5.6 1, 2, 5, 6 5 7.7 3, 4, 7, 8
1/2 7.5 1, 2, 5, 6 7-1/2 11.6 3, 4, 7, 8
3/4 8.7 1, 2, 5, 6 10 14.1 3, 4, 7, 8
1 9.9 1, 2, 5, 6 15 20.6 3, 4, 7, 8
1-1/2 10.7 1, 2, 5, 6 20 27.6 3, 4, 7, 8
2 12.6 1, 2, 5, 6
3 14.8 1, 2, 5, 6
5 30.4 17, 21, 27, 30
7-1/2 40.4 17, 21, 27, 30
10 44.4 17, 21, 27, 30
208/3
or
230/3
1/4 3.8 1, 2, 5, 6
1/3 4 1, 2, 5, 6
1/2 4.5 1, 2, 5, 6
3/4 5.3 1, 2, 5, 6
1 6.1 1, 2, 5, 6
1-1/2 8.0 1, 2, 5, 6
2 9.4 1, 2, 5, 6
3 11.5 1, 2, 5, 6
5 15.9 1, 2, 5, 6
7½ 24.4 1, 2, 5, 6
10 32.4 17, 21, 27, 30
15 45.5 17, 21, 27, 30
20 61.4 18, 22, 28, 31
Code 36
