Reznor ADFH Parts Manuals - Manual (Page 14)

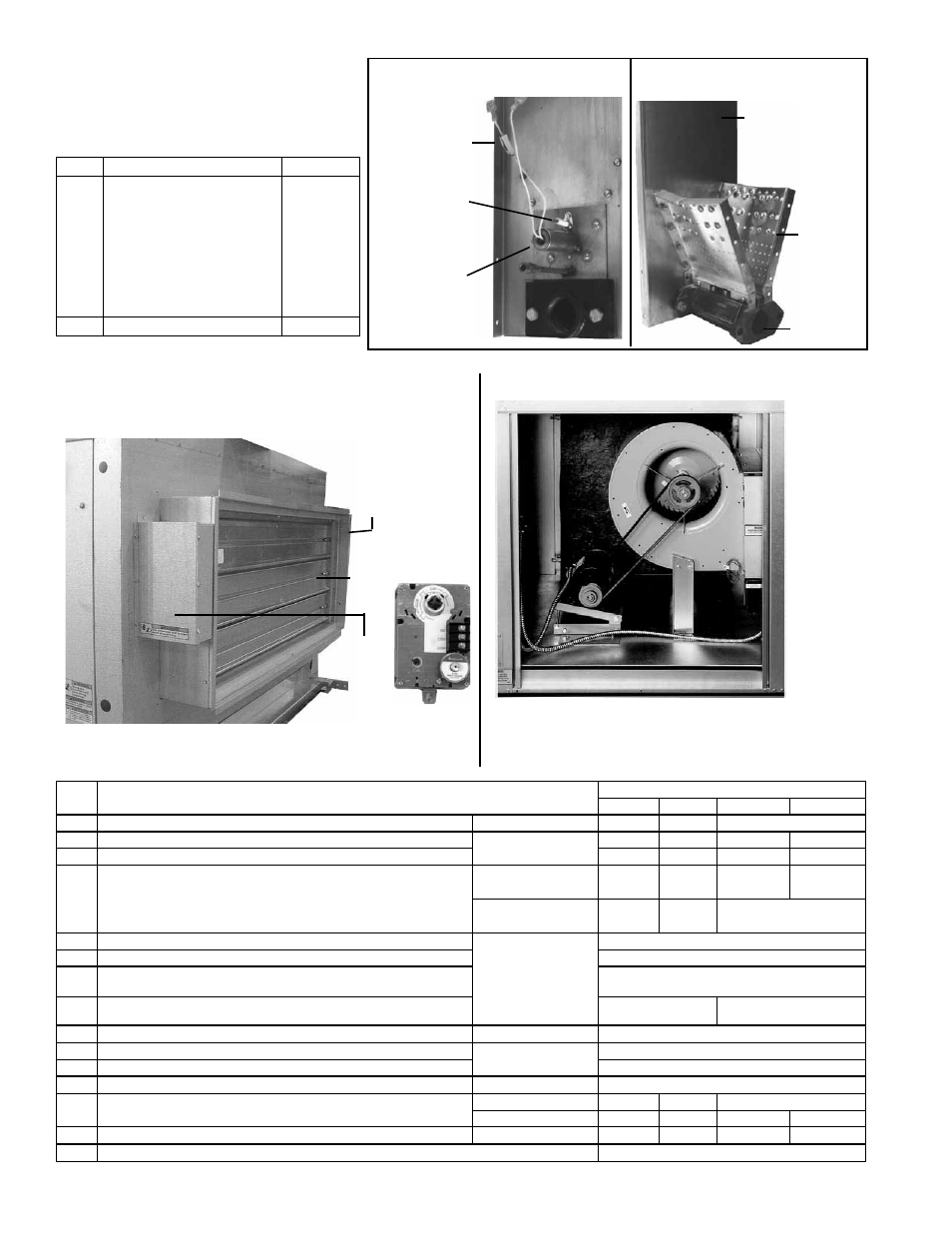

Form P-ADF, P/N 270068 R1, Page 14
First Burner Section in the
Burner Assy
CODE
107B -
End Plate
CODE
107A -
Mixing
Plate
Burner
Burner End Plate showing Hot
Surface Ignitor
Ignitor
(see Code
101)
Flame
Sensor (see
Code 101)
Code 107B -
Burner End
Plate
Burner Components - applies to all sizes
of Maxon burners and ADF/ADFH Units
CODE Description P/N
107A Burner Mixing Plate only, 6"
straight section replacement
plate. Refer to Operation/
Maintenance/Service
Form, O-ADF/RDF, Burner
Cleaning, for instructions on
how to access the burner
for servicing.
116104,
Maxon P/N
20580,
(qty of 6"
sections
depends on
length)
107B Burner End Plate (2) 95473
Blowers and Blower Motor Mounting
Blower/Motor Compartment - Illustrating a Size
ADF300 with horizontal discharge, a Class 1 blower, and
a 1/2-5 HP motor on a CODE 137 motor mounting plate.
Limit controls are in the box to the right of the blower.
Discharge Dampers and Controls
CODE 119 -
Motor for Vertical Discharge
Damper, P/N 114429
Model ADF with a Horizontal Discharge
Damper (Option AQ4)
114,
115
110
113
CODE Description
Size
300 500 700 1200
110 Damper Frame Assy Horizontal Discharge 176168 123159 176169
111 Damper Frame - Top/Side
Vertical Discharge 176117
121185 (2) 176117 (2) 121185
112 Damper Frame - Bottom/Side 176116 121186 (2) 176116 (2) 121186
113 Dampers
Vertical Discharge 123192
123193 123192 123193
170x150 160x170 170x150 160x170
Horizontal Discharge 123192
123193 124208
170x150 160x170 19-5/8 x 46-5/8
114 Damper Motor Box
Option AQ4
Horizontal Discharge
- Damper Motor is
external to the unit
cabinet.
176111
115 Damper Motor Box Cover 176110
116 Damper Motor, direct coupled, (direct replacement for units
manufactured beginning 11/05)
209351, Johnson Control M9206-BGB-201
117 Damper Motor, replacement kit for direct-coupled motors for units
mfgd prior to 11/05 (replaces motor P/N 124224 and P/N 163101)
163197 163195
118 Damper Motor Auxiliary End Switch Horizontal Discharge 124225
119 Damper Motor, 2-position, shaft, M/H ML6161A2009
Vertical Discharge
114429
120 Damper Motor End switch 114430
121 Damper Mounting Bracket Horizontal Discharge 131149
122 Damper Motor Plate Assembly with 2 Spotweld Screws
Horizontal Discharge 176121 124220 176120
Vertical Discharge 176121 124220 (2) 176121 (2) 124220
123 Damper Shaft Vertical Discharge -- -- 123644 123641
124 Damper Shaft Extension - Vertical and Horizontal 123642, J/C #D9999-156
NOTE: See page
19 for discharge
end cabinet parts.
Replacement Burners or units
manufactured prior to 9/03 (cont'd)
